List of values |

|
List of values |
|
A corresponding value range must also be configured for each range slider. The following types of value ranges are available for selection:
Numeric value range
This value range contains numerical values that increase in a defined sequence.

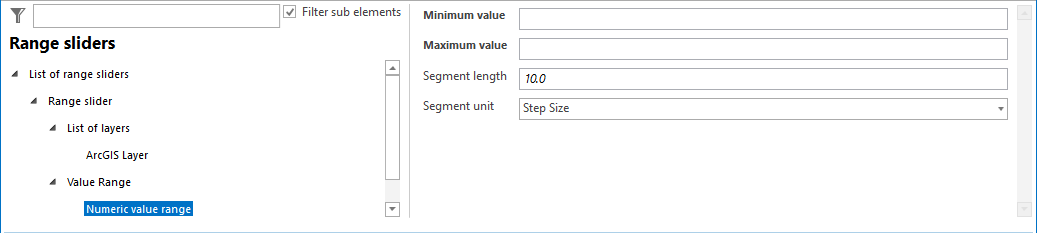

Configuration of a numeric value range
Property |
Description |
|---|---|
Minimum value |
Sets the smallest value to be displayed on the range slider. |
Maximum value |
Sets the largest value to be displayed on the range slider. |
Segment length |
Bestimmt die Länge eines Abschnittes auf dem Bereichsschieberegler. Dies ist eine Zahl, welche zusammen mit dem Parameter 'Abschnitt Einheit' einen Abschnitt definiert. Hinweis: Die Interpretation dieses Wertes hängt von der Konfiguration des Parameters 'Abschnitt Einheit' ab. |
Segment unit |
The unit of length of a section on the range slider:
Equal Intervals (Standard) By configuring the'Length section' parameter, the range slider provides a corresponding number of equal sections based on the underlying data. The configuration of the'Length section' parameter determines the exact interval between two steps on the range slider. |
Properties of a numeric value range
Date value range
This value range contains date values that increase in a defined sequence.

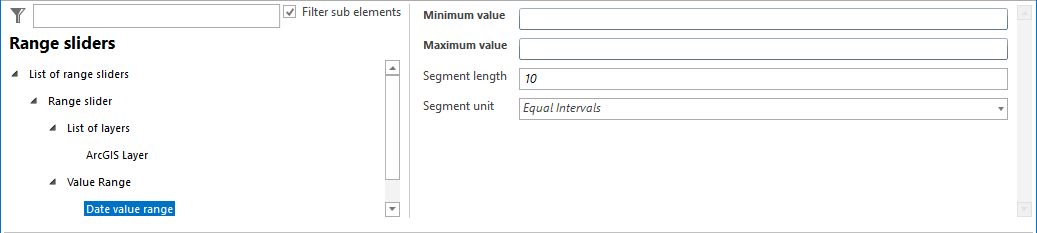

Configuration of a date value range
Property |
Description |
|---|---|
Minimum value |
Sets the smallest value to be displayed on the range slider. |
Maximum value |
Sets the largest value to be displayed on the range slider. |
Segment length |
Determines the length of a section on the range slider. This is a number which, together with the parameter 'Section Unit', defines a section. |
Segment unit |
The unit of length of a section on the range slider. |
Properties of a date value range
Automatically generated value list
This value list contains all values currently occurring on the affected layers.

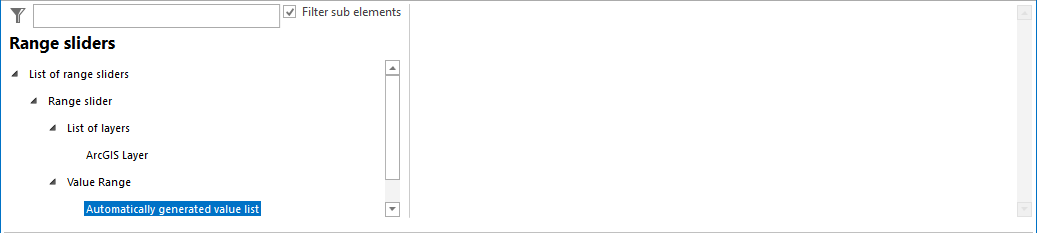

Configuration of an automatically generated value list
Manually configured value list
This value list contains values that can be freely configured.

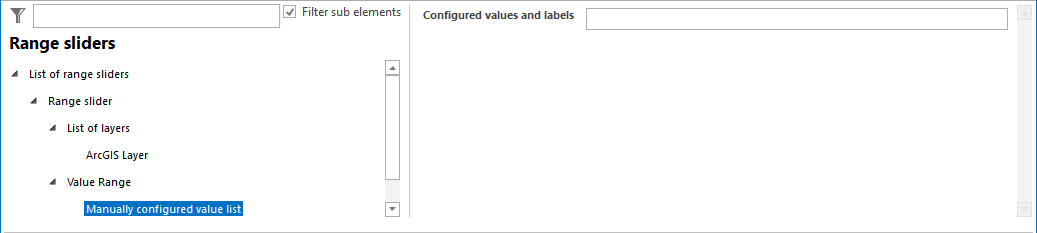

Configuration of a manually configured value list
Property |
Description |
|---|---|
Configured values and labels |
Defines the values that shall be displayed on the range slider. The "|" symbol is used for separating values, e.g. '1|2|3|4'.
Note: Values of the type NUMERIC must be given as integer or using '.'("dot") as decimal separator, e.g. 12.1|12.58|13.4158 Note: Values of the type DATE must be given in the format 'DD.MM.YYYY HH:MM:SS' (e.g. "25.12.2018 00:00:00") or 'YYYY-MM-DD HH:MM:SS' (e.g. ""2018-12-25 00:00:00"") or as 'Unix Timestamp in milliseconds' (e.g. 1545696000000). A time value without a date may be given as 'HH:MM:SS' (e.g. "15:45:00").
If no label is defined, the value is also used for the label. If CodedValues are defined on the field, or lookup definitions are configured here, these are used for the labels if the raw-value ("code") is given as value and no label is defined. Note: The order on the range slider will be the same as the order of values that are entered here. |
Property of a manually configured value list
