WebOffice author standalone > Edit project Menu > WebOffice Category > Print > Template (File Name)

By configuring the Enable Index Plot function it is possible create a print based on an individually drawn sketch. This way the user is enabled to produce a print series along a line object, e.g. a stream center line.

Note: The client preview of the printing extent does not comply with the effective printing extent.

Note: The single sheets of the index plot do not have a north arrow. If a north arrow is desired on the print the Esri north arrow has to be configured in the layout! In this case these printing templates are not to be used in combination with rotating prints.

Note: When using external service there might arise the problem of missing tiles on the last print due to overlapping beyond the virtual index plot line.

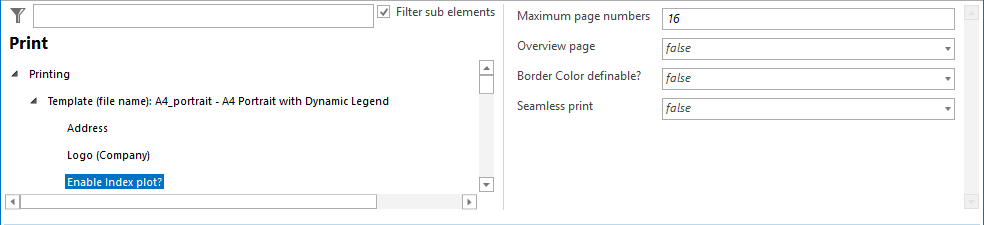

Enable index plot configuration

Property	Description
Maximum page numbers	Maximum number of pages.
Overview page	Specifies the inclusion of an overview page in the index plot. Note: In order to provide an overview page for the index plot, make sure that a copy of the respective print template exists in the WebOfficePlotTemplates directory with the nomenclature <WebOffice print template name>_overview.layout. Example: WebOffice plot template name: A4_portrait.layout required overview template: A4_portrait_overview.layout
Border Color definable?	Specifies whether the border color of the overview page is definable (Yes) or not (No). Activating this function will result in a color picker that is provided to the user in the toolbar.
Seamless print	Specifies whether the output pages are to be joined seamlessly.

Enable index plot properties

Note: See chapter Print for details about the tool configuration in WebOffice author standalone.

Note: See chapter Template (File Name) for details about the configuration of print templates.

Note: See chapter Print with Index Plot for the tool appearance in the WebOffice core client.

Note: See chapter Index plot based on feature geometry for more details about how to create an index plot based on an individually drawn graph.
