WebOffice author standalone > Edit project Menu > WebOffice Category > Print > Template (File Name)

Configure the Dynamic Legend function to display a legend on the print output. The legend page will dynamically display descriptions of all symbols used on the print extent.

Note: Provide a layout file containing the logo image "syn_dyn_legend" with the name <name of print template>_legend.layout

Example: The dynamic legend shall be enabled for a layout saved as A4_portrait.layout. In order to configure the dynamic legend create an additional layout file named A4_portrait_legend.layout and save it into the WebOfficePlotTemplates folder. The A4_portrait_legend.layout file must only include a logo image named "syn_dyn_legend". See HowTo chapter Configure a Dynamic Legend for details.

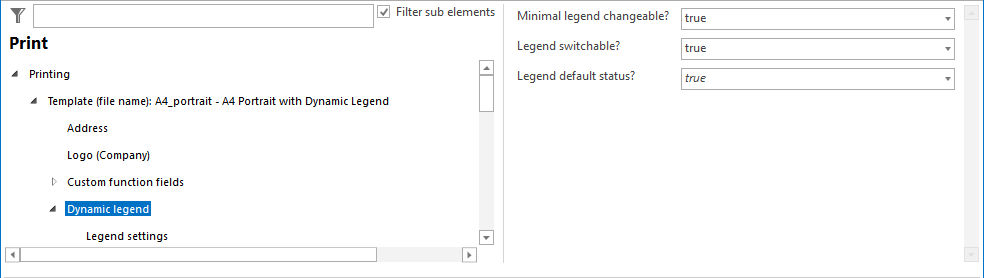

Dynamic legend configuration

Property	Description
Minimal legend changeable?	Specifies whether the user is able to change the print legend type (Yes) or not (No). The following print legend types are available if enabled: •extent layers only: only layers that contribute to the print output will be described in the legend page •all visible layers: all visible map layers will be described in the legend page
Legend switchable?	Specifies whether the user is able to include/exclude the print legend (Yes) or not (No).
Legend default status?	Only applicable for switchable legend. It determines the initial state of the legend switch

Print series properties

Note: See chapter Print for details about the tool configuration in WebOffice author standalone.

Note: See chapter Template (File Name) for details about the configuration of print templates.

Note: See chapter Print with Print Series for the tool appearance in the WebOffice core client.
