North Arrow |

|
North Arrow |
|
Use the North Arrow element for specifying the north arrow displayed on top of the map.

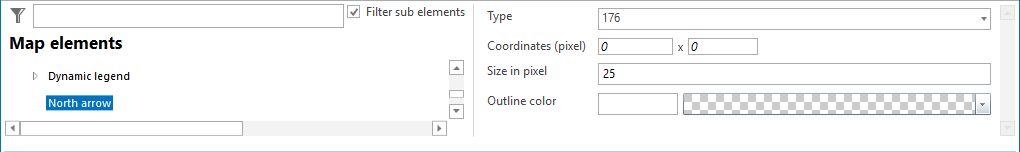

North arrow configuration
Property |
Description |
Type |
North arrow for main map according to ESRI North Regular True Type Font.
 ESRI North Regular font
|
Coordinates (pixel) |
Coordinates (in pixel) of north arrow from lower left corner of map window. |
Size in pixel |
Size of north arrow (in pixel). |
Outline color |
Outline color of north arrow. |
North arrow properties
Note: For printing a north arrow you must insert a north arrow layout element in the ArcMap layout.
Note: See chapter Main Map Display for the appearance of north arrow in the WebOffice core client.
