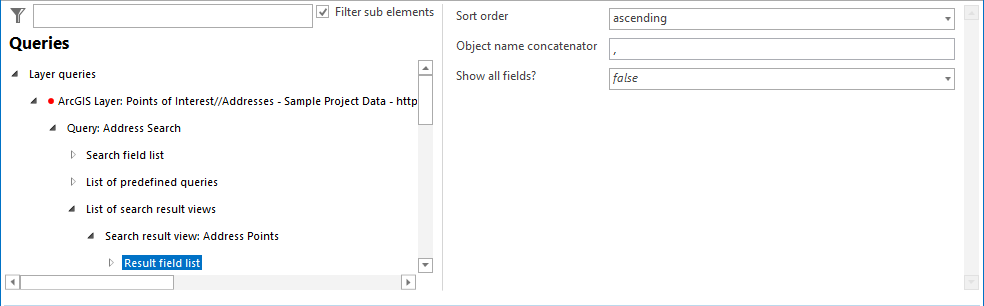

Result Field List

Property

Description

Sort order

Specifies sort order:

•ascending

•descending

Object name concatenator

Concatenate string for generating the object name.

If, e.g. fields "Street Name" (value "Herrengasse") and "Street Number" (value "10") are concatenated, the resulting object name will be "Herrengasse, 10".

Note: This parameter will also provide the concatenator for full-text search suggestions and full-text search multilayer results if the parameter "Separator for suggestions?" is set to "Yes" in the attribute Full-Text Search of the application configuration.

In such a case the object name concatenator of the first result field list of the first search result on the respective layer of the first relevant project will be relevant.

Note: Every time the configured concatenator is changed, the existing subindex is "out of date" and has to be recreated.

Show all fields?

If set to "Yes", then all fields of the layer or table get displayed, no matter whether they are explicitly configured as result field or not.

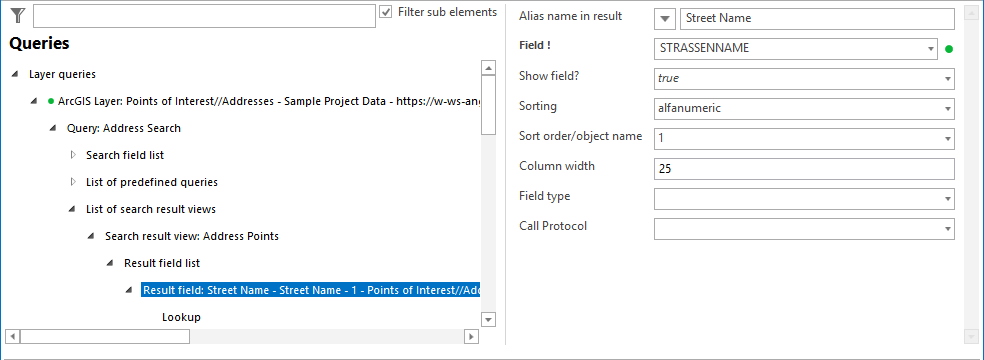

Property

Description

Alias name in result

Alias name to be displayed.

Note: It is recommended to use either Geodatabase alias or ArcMap alias definitions instead If possible. See chapter Field Alias for details about best practices regarding alias names.

Field

Field of layer/table to be displayed in the search result.

Note: Define in the Basic Settings whether you want have alias or technical names displayed in the drop-down list.

Show field?

Specify whether to display the attribute field in the search result (Yes) or not (No).

Sorting

Sorting according to database field type (fieldtype) or alphanumeric (for TEXT fields only, especially useful for house and parcel numbers and other alphanumeric values).

Sort order/object name

Specifies the sort order. Use

•1 for the first field

•2 for the second field

•etc.

None means not to use this field for sorting at all.

Note: This function is used as well to create an object name for this layer by concatenating the field value with Sort order 1 to that with Sort order 2 etc. See the first table of this chapter  "Result field list properties" for more information on object names and concatenation delimiters.

Note: This function can be used for showing the title in the MapTip result.

Column width

Column width in search result.

Note: Being able to explicitly specify the column size in the result page is useful for providing better layout control (especially for TEXT fields with big field sizes)

Field type

Provide field type information.

Only used when doing search on relational database tables.

Note: Configure this attribute only if WebOffice 10.7 SP1 is not able to automatically retrieve field type information from the database.

Note: number_fixed defines a number without decimals, number_floating will use the number of result precision defined in Common Settings.

Call Protocol

Makes possible a call to a URL by clicking on the result cell. WebOffice 10.7 SP1 formats the value, provided it is valid (if "email" is configured, then the value must be an e-mail address).

Note: You can choose between "email" and "phone". The attribute "email" lets the value of the result appear in form of an "email-link", "phone" in form of a "phone-link". With these links it is possible to activate either a phone call or an email directly from the search result.
