WebOffice author standalone > Edit project Menu > WebOffice Category > Project Configuration

The Full Extent element specifies the full extent of the WebOffice 10.7 SP1 project.

The user is not able to navigate beyond this extent.

Note: Full width as well as height of the specified extent may be explored by the user.

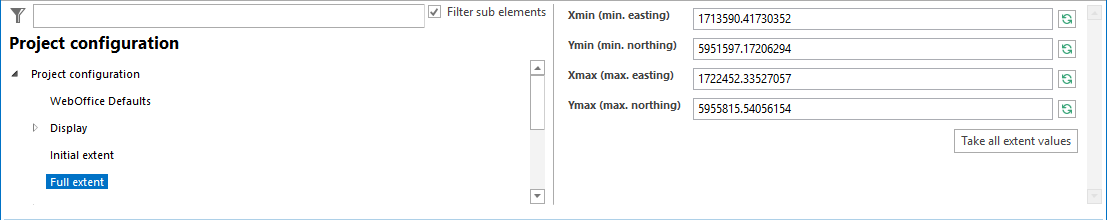

Full extent configuration

Property	Description
Xmin (min. easting)	Minimum in geographic units. Corresponds to left side of map view.
Ymin (min. northing)	Minimum in geographic units. Corresponds to bottom of map view.
Xmax (max. easting)	Maximum in geographic units. Corresponds to right side of map view.
Ymax (max. northing)	Maximum in geographic units. Corresponds to top of map view.

Full extent properties

By clicking the button to the right of the configuration parameters, WebOffice author standalone takes over the respective extent values from ArcMap/ArcGIS Pro. Alternatively, the entire map extent of the ArcMap/ArcGIS Pro project can be taken by clicking on the "Take all extent values" button.
