WebOffice author provides a button in its ArcGIS toolbar for transferring customized layer selection colors or properties to WebOffice 10.7 SP1.

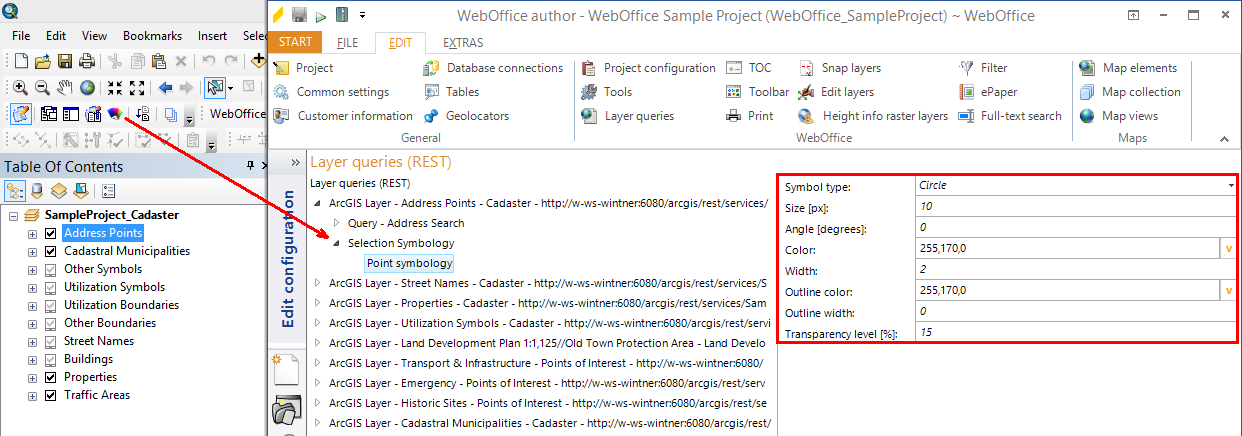

Depending on your ArcMap selection properties this button retrieves configured selection symbols and/or colors from ArcMap and copies them to the currently opened WebOffice 10.7 SP1 project configuration. They will be saved as a Selection Symbology in the according layer under Layer Queries.

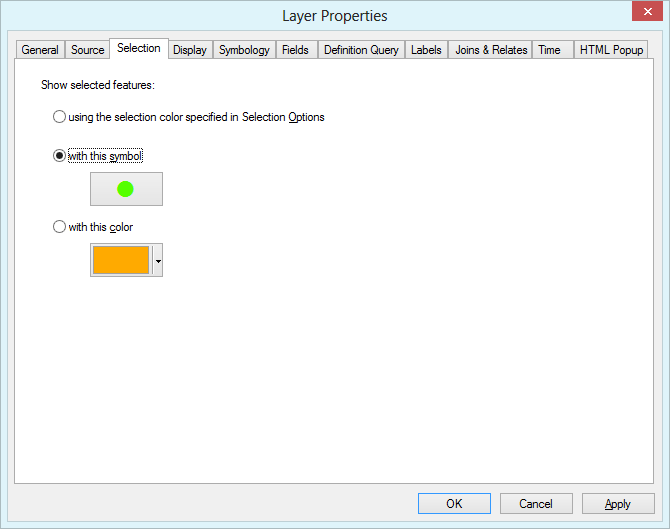

In case the selection properties in ArcMap are set to "with this symbol", WebOffice author will transfer the following properties depending on the type of layer:

•points: color, size, angle

•lines: color, width

•polygons: fill color, outline width, outline color

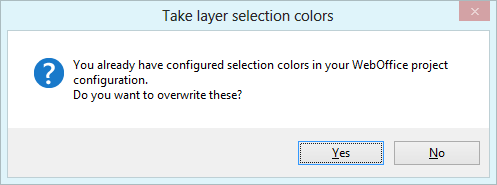

If a selection symbology for a specific layer already exists in your WebOffice 10.7 SP1 project configuration, a notification will ask whether to overwrite or keep the existing configuration.







Note: Find more details about available selection symbologies in chapter Selection Symbology.

Note: Find more details about the automatic transfer of the selection symbologies via the Server Object Extension in chapter Selection Symbology.
