IDENTIFY |

|
IDENTIFY |
|
The parameter activetools=IDENTIFY will display the identify tool via cross hair.
Note: The pixel tolerance for the IDENTIFY tool can be configured in WebOffice Defaults.

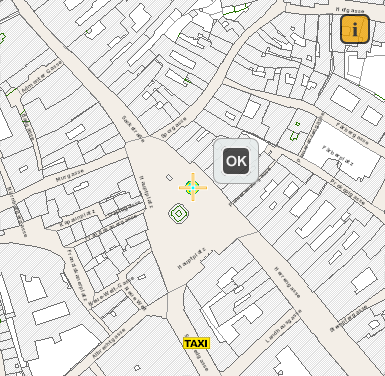

Identify in WebOffice map widget
By panning the map underneath the cross hair, features can be selected for identify. If a feature is found, an OK button appears. The OK button causes to get a response of the selected feature to the Java Script callback function.
The following parameters are needed in order to identify features in WebOffice map widget via cross hair:
Parameter |
Description |
query_identify_mw |
External layer ID on the WebOffice 10.7 SP1 query layer. Note: The layer must be identifyable/selectable |
returnkey_identify_mw |
Specifies the field to be returned in the response. Note: It is possible to use more returnkeys separated by semicolon ';'. Please ensure to configure the returnkey as Result Field of the layer query. |
callback_identify_sl |
Specifies a JavaScript callback function. |
startmode=IDENTIFY (optional) |
By checking this parameter the tool will initially be activated after refreshing the map widget. Note: The parameter startmode can only be used with one single tool. |
Example:
http://w-ws-schmoelz/WebOfficeLatest/client_mapwidget/default.jsp?baseURL=http://w-ws-schmoelz/WebOfficeLatest&project=WebOffice_SampleProject&width=385&height=377&view=poi_cadaster&combined_req=true&map_adv=true&activetools=IDENTIFY&query_identify_mw=transport&returnkey_identify_mw=E_KAT1
