Navigation:  WebOffice clients > WebOffice mobile Client > Structure > Lower Toolbar > Add ArcGIS Online Service

The tool Add ArcGIS Online Service can be found in the lower toolbar of the WebOffice mobile client. It is used to add preconfigured ArcGIS Server map services or ArcGIS Online services to the current WebOffice 10.7 SP1 project in the WebOffice mobile client.



The following map services are supported by WebOffice 10.7 SP1:

▪preconfigured ArcGIS Server map services of version 10.2.x (or higher)

▪preconfigured secured ArcGIS Server map services of version 10.2.x (or higher) with stored credentials

▪preconfigured secured ArcGIS Server map services of version 10.2.x (or higher) without stored credentials (authorization dialog directly in the browser)

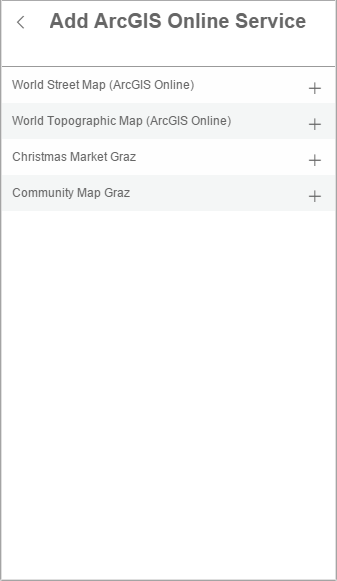

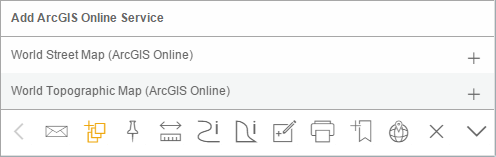

Click the tool in the lower toolbar of the WebOffice mobile client to see all preconfigured map services.

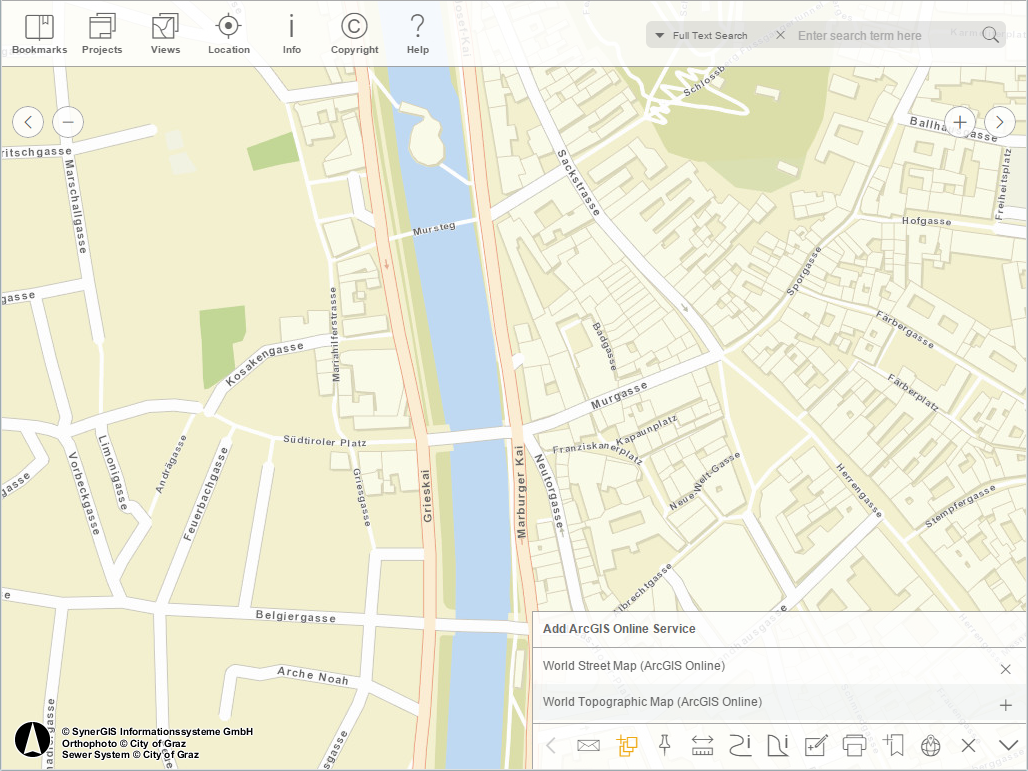

On the right side you can find the buttons to add and remove specific layers. When adding a map service it will be displayed automatically in the map.

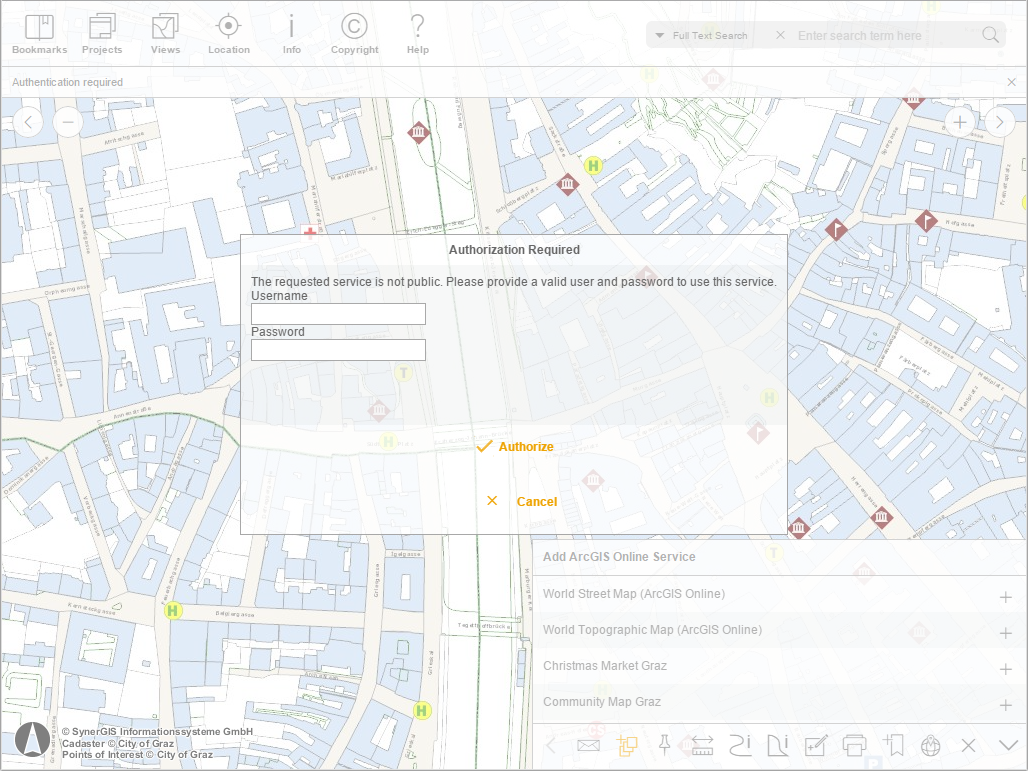

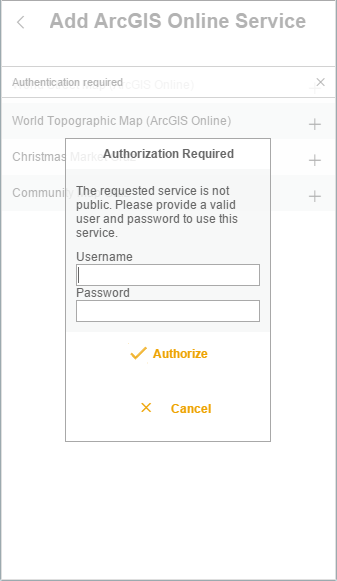

When selecting a secured map service that has been configured without stored credentials an authorization dialog will pop up. Enter the credentials and click Authorize to show the map service in the map.







Note: Be aware that since the WebOffice mobile client does not have a table of content, it is impossible to change layer visibility like in the WebOffice html client.

Note: See chapter ArcGIS Service for details about the tool configuration in WebOffice author.
