Click r to start the printing process in the WebOffice flex client. Configured templates can be selected from a selection list. Predefined pressure ranges can be selected from a selection list or entered manually. By default, the print content is displayed with print range and rotation. The print resolution (high or standard), print title and creator as well as the PDF file name are optional.

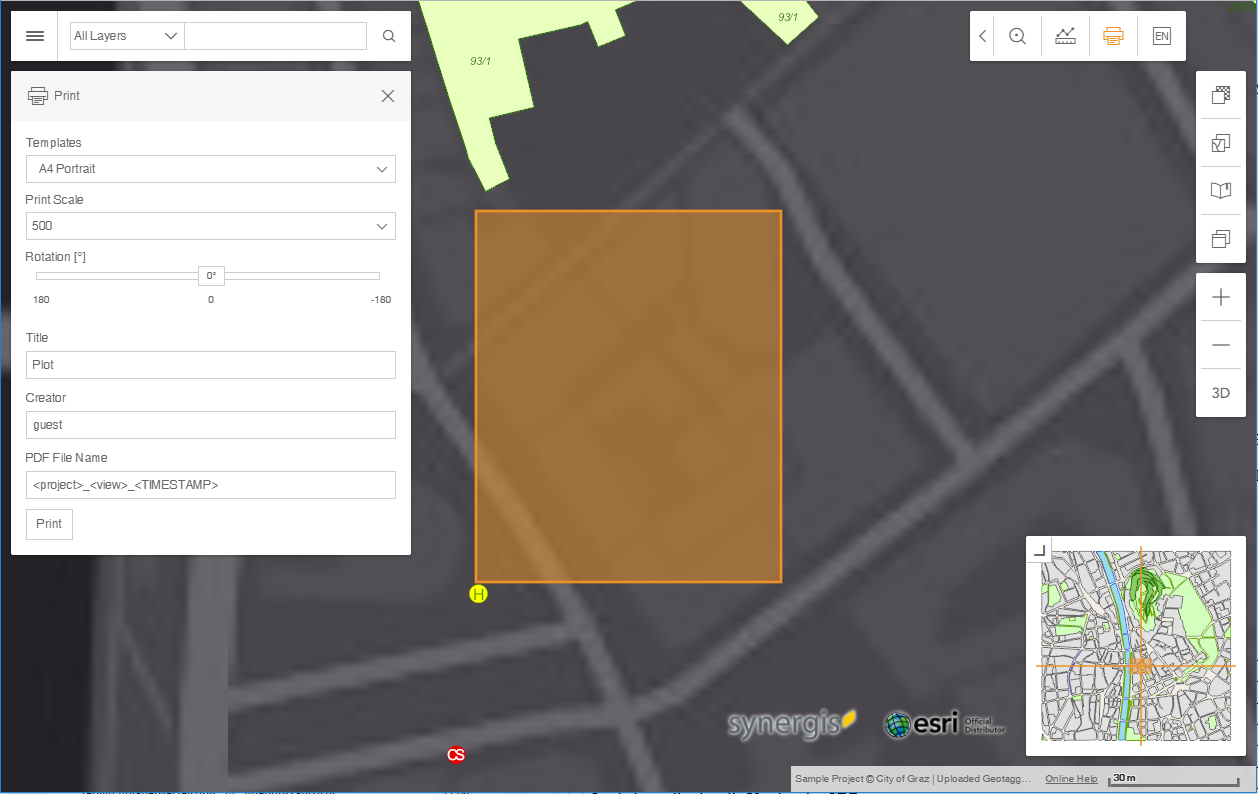

Print in the WebOffice flex client

Menu Item	Description
Templates	Drop down list with the configured print templates
Print Scale	Drop down list of configured scales
Rotation	Specifies the rotation of the print
<function fields>	Function fields like title, Creator, PDF File name that are dependent of the WebOffice 10.7 SP1 project configuration
High Resolution Print	Specifies whether the high DPI resolution of the configuration is used. Note: VertiGIS recommends to set resolution to be High DPI by default in Print.
Print	Starts the printing

Note: The standard print output format can be configured under Print. If no format has been configured, the first of the Print File Output Formats is used.

Note: See Print chapter for information on tool configuration in WebOffice author.

Note: See the Template (file name) chapter for information about the configuration of print templates.

Note: See the ArcGIS Server Print Service chapter for information on how to configure an optional print service.
