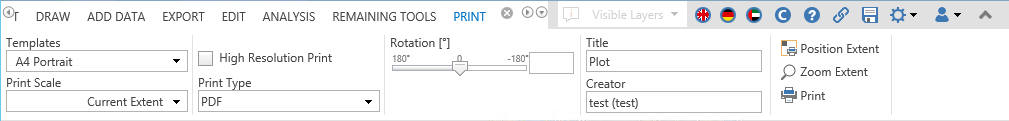

Print tool in WebOffice Core Client
Templates
Choose one of the configured print templates from the drop-down list. If no specific print template has been configured in the WebOffice 10.7 SP1 project configuration, then all existing print template files of the WebOffice plot directory (<ArcGIS Server location>\directories\WebOfficePlotTemplates) will be listed. Otherwise, only the explicitly configured templates will be shown.
Print Type
Select one of the configured print file output formats.
Print Scale
Either choose one of the provided predefined scales or enter a free scale. If configured in the Print Scales the user has the option to choose
•Current Extent, which takes the visible extent and adjusts the printing scale
•Current Scale on the other hand take the currently set scale and adjusts the extent
Note: It is allowed to print in larger scales than the level of detail of a used cached map service.
Note: If no scale is predefined and no scale is chosen from the drop-down list, WebOffice 10.7 SP1 will use the "current scale" for printing.
A convenient feature when printing in WebOffice 10.7 SP1 is to define a free scale extent. This can be easily done by activating the button Define extent.
Print Page Overlap
It is possible to define a print page overlap for series prints. Set the percentage of print page overlapping either with the slider or by entering a specific number.
Rotation
Allows you to set an angle to rotate the map extent for a better visualization of your objects. Control the rotation either with the slider or by entering a specific angle.
High Resolution Print
Check high quality printing if you want to plot the map with a resolution higher than the standard screen resolution. High quality prints need much more system resources than prints with default quality.
Function fields
In the print tool form you find a set of fields (e.g. title, creator) you can populate with information. This information then gets displayed on the print output.
Depending on the configuration of these function fields they may be changed by the user or not. It is possible to allow text input or selection via drop-down list.
Buttons |
Description |
|
Places the print extent, that was defined by the print scale, automatically into the center of the map. It can still be adjusted by moving the mouse. |
|
Zooms in on the current print area. |
|
Prints the content of the current print area. |
or
|
Use the Define Extent button to manually place the print extent by clicking, holding, and moving the left mouse button. This function can only be used if a specific print scale has been set in advance. If there is Series Print configured, instead of Define Extent the Series Print button appears which lets you draw the print area with your mouse cursor. Note: The "Define Extent" button is only available if the free scale selection is configured on the respective print template. Note: For detailed information about the series print option, please see chapter Print Series. |
Print tool dialog
