Navigation:  Configuration Examples > CAD Export of Lines with Texts

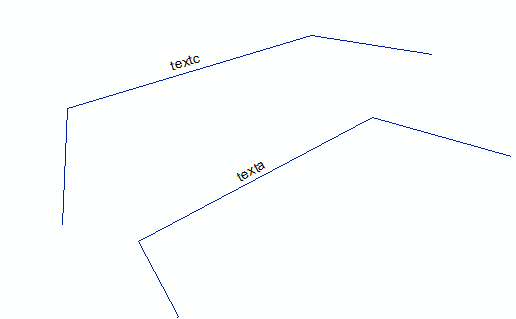

Texts could be exported with the DxfEntitytyp Text. Additionally the lines could be exported with the DxfEntitytyp Polyline. It is not necessary to define blocks.







The texts would be read out of thie field Text1. It is possible to define an offset in x and y direction. The height should be five drawing units.
