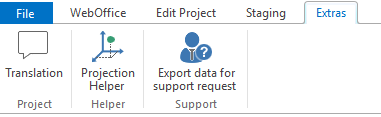

Extras Menu

Icon

Menu item

Description

Translation

The translation tool translates the project-, application- or ESRI resource proxy configuration for you.

Projection Helper

The Projection und Geotransformation Helper 1.5.1 is the easiest way configure projections in your WebOffice 10.6-Project.

Export data for support request

This tool allows you to export all necessary files as a ZIP-file for the WebOffice 10.6-Support. By default the version number, operating system, log files, settings, saved application configuration (+schema), the configuration schema and the current project (if opened) will be exported.

It is also possible to export all projects in the WebOffice 10.6 project directory as well as the User Management.

Note: You can also export an ArcMap-Project (.mxd) or an ArcGIS Pro-Project (.aprx) as well as an ArcMap-Map Package (.mpk) or an ArcGIS Pro-Project package (.ppkx) or a Screenshot.

Legacy Author: Generate RowIDs

This tool creates RowIDs in project configurations, as they are needed to open projects in the old SynerGIS Informationssysteme - Technical Documentation Team (ArcMap Extension).

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Legacy Author: Show RowID errors

This tool detects RowID errors in the project configuration, as they are needed to open projects in the old SynerGIS Informationssysteme - Technical Documentation Team (ArcMap Extension). Thus, each RowID must be unique, and subelements of multilingual attributes must all have the same ID.

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Project configuration to clipboard

This tool copies the contents of the project configuration (xml file) to the clipboard.

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Show user management information

This tool displays the contents of the user management database, which can be particularly useful for debugging the user management database.

Note: This tool is only available in debug mode, which can be activated in the basic settings.
