ArcGIS Web Scene

 Previous pageReturn to chapter overviewNext page

With WebOffice 10.6 it is possible to display a ArcGIS Web Scene, which is especially useful to make 3D data available for visualization and analysis purposes. ArcGIS Web Scene is implemented in WebOffice 10.6 as a custom tool based on a script API.

Note: More information on this topic can be found in the ArcGIS Online Help.



Clicking on the configured Web scene button opens a window, which stretches over the right half of the main map area. In addition, the Ribbons and Project Center are hidden to enlarge the main map area.

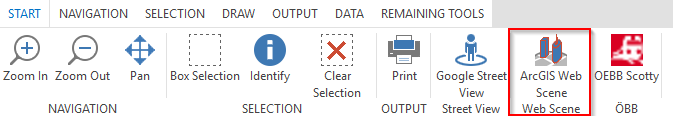

Web scene button

Web scene button





Navigation in the Web scene window can be done using mouse and navigation elements located at the upper left edge of the Web scene window. In addition, different functions are offered for the web scene, which can be selected in the left area of the window.

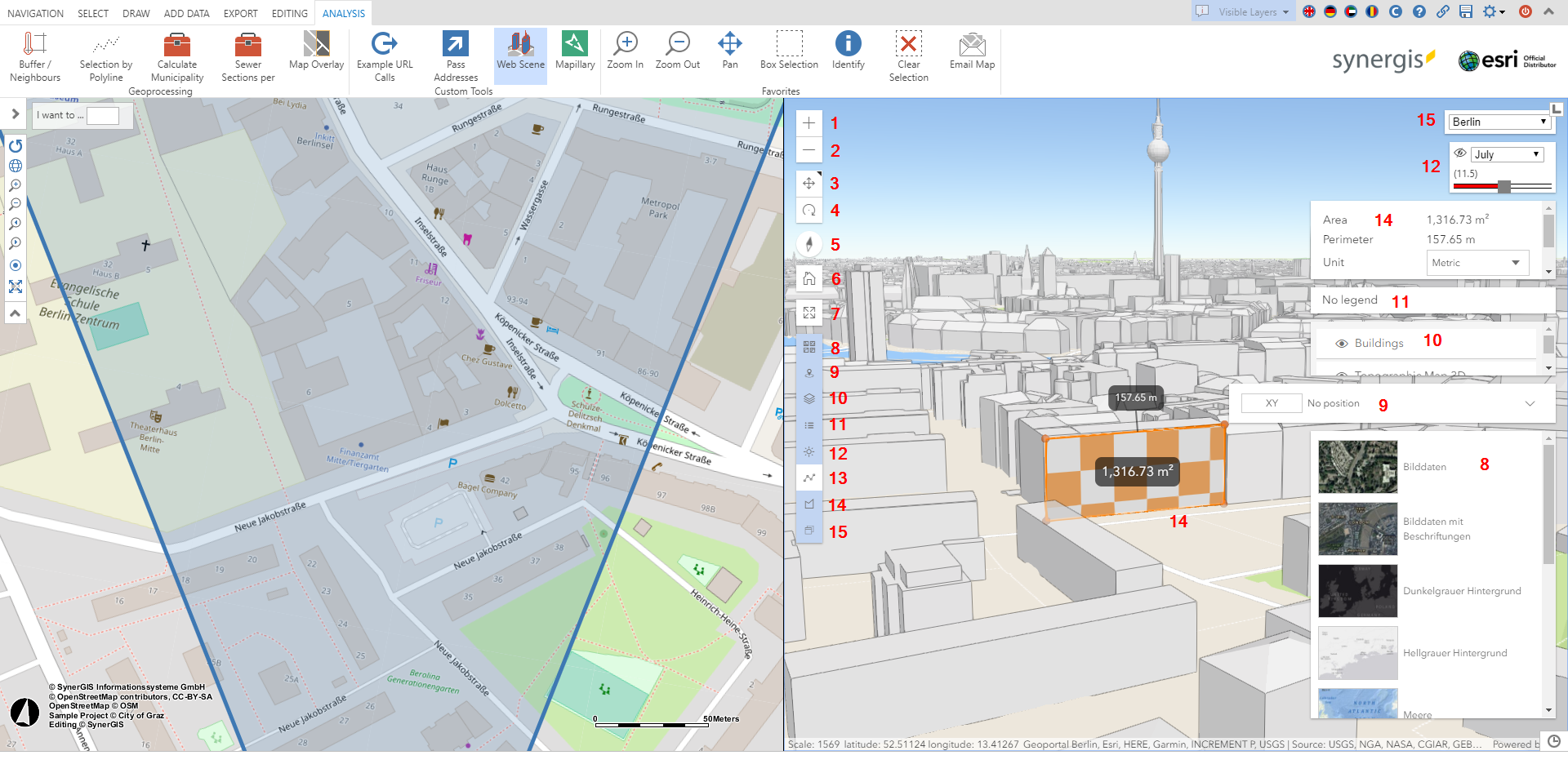

WebOffice core with Webscene  window in the right half of the main map display

WebOffice core with Webscene  window in the right half of the main map display







Funktion

Beschreibung

1   core_particularities_webscene04

Zoom In - Click on this button to enlarge the map extent in the Web scene window.

2 core_particularities_webscene05

Zoom Out - By clicking this button the map extent in the Web scene window is reduced to a smaller size.

3 core_particularities_webscene06

Toggle to pan or rotate in 3D - By clicking this button, the map area can be moved by pressing and holding the left mouse button.



4 core_particularities_webscene07

Toggle to pan or rotate in 3D - By clicking this button you can change the viewing angle in the map area by pressing and holding the left mouse button.



5 core_particularities_webscene08

Reset compass orientation - Clicking this button resets the orientation of the map area to north.



6 core_particularities_webscene09

Default map view - Clicking this button moves the map extent to the configured default map view.

7 core_particularities_webscene10

Enter full screen - Clicking this button activates the full screen mode

8 core_particularities_webscene11

Basemaps - By clicking on this button you can select the Basemap of the Web scene



9 core_particularities_webscene12

TOC (Table of Content) - Clicking on this button opens/closes a window in which you can switch the visibility of the individual themes.

10 core_particularities_webscene13

Show Legend - By clicking this button you can show/hide the legend





11 core_particularities_webscene14

Shadow control - Clicking on this button opens a window in which you can use the slider and the drop-down list to make settings to display shadow effects that are influenced by the times of the year and day.

12 core_particularities_webscene15

3D Measuring - Clicking this button opens a new window and activates the 3D measurement function.



13 core_particularities_webscene16

Scene control - Clicking this button opens a window in which you can choose between different web scenes.





Note: For information about configuring a web scene, see the chapter Configure a Web Scene.

Note: WebGL is not in supported in Internet Explorer 11. Because of that WebScenes are not supported in Internet Explorer 11. For more information see chapter Clientside requirements.
