ArcGIS Server Extract Service |

|
ArcGIS Server Extract Service |
|
Use a specific ArcGIS Server Extract Service if you need some specific configuration within your extract output service. Otherwise, it is recommended to configure one central ArcGIS Server Output Service in the map elements section. In case you want to configure a specific output service for data exports, make sure that you activated the Server Object Extension.
Note: Find details regarding the activation of the Server Object Extension in chapter Activate SOE on a Map Service.

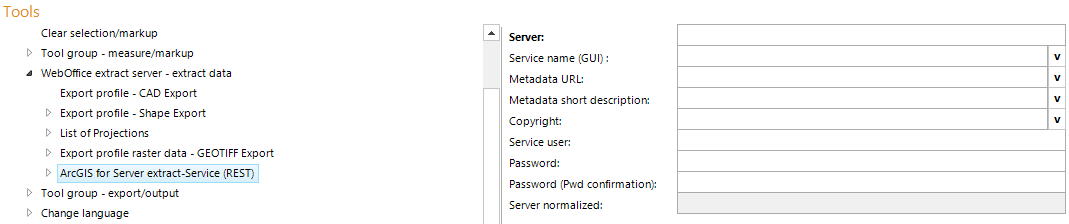

ArcGIS Server Extract Service
Property |
Description |
Server |
Specifies URL of ArcGIS Server Extract Service. Example: |
Service name (GUI) |
Service name of extract service displayed in the GUI. |
Metadata URL |
Configure a reference to a metadata document (must be available via HTTP) as URL. Note: You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display. |
Metadata short description |
Provide a short description for the metadata (line breaks with "\n"). |
Copyright |
Service specific copyright text to be added to the configured project copyright if the map service contributes to the map. Note: The service specific copyright will only be displayed if the map element Copyright is configured. Note: Detailed information about the use of these attributes can be found in chapters Template (File Name) and WebOffice ePaper Template (File Name). |
Service user |
User login for accessing the ArcGIS Server 10.5.1 service (ArcGIS service user) in case access to the service has been restricted in ArcGIS Server Manager. |
Password |
Password of the ArcGIS Server 10.5.1 service user that is allowed to access the service. |
Pwd confirmation |
Pwd confirmation. |
Server normalized |
Normalized server URL (not configurable) |
ArcGIS Server Extract Service properties
Note: See chapter WebOffice extract server for details about the tool configuration in WebOffice author.
Note: See chapter ArcGIS Server Output Service for details about the configuration of a general output service.
