Overview Map - Display Extent |

|
Overview Map - Display Extent |
|
The overview map - display extent configuration specifies the overview map extent displayed by WebOffice 10.5 SP2 clients with start up.

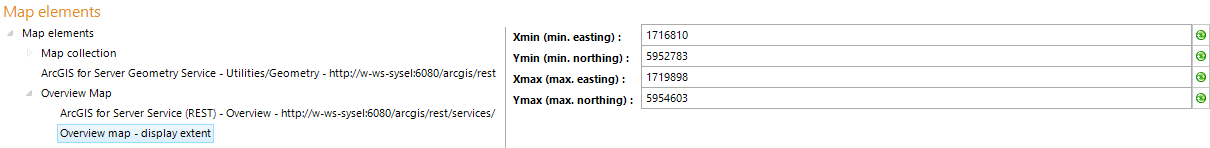

Overview map - display extent configuration
Property |
Description |
Xmin (min. easting) |
Minimum in geographic units. Corresponds to left side of map view. |
Ymin (min. northing) |
Minimum in geographic units. Corresponds to bottom of map view. |
Xmax (max. easting) |
Maximum in geographic units. Corresponds to right side of map view. |
Ymax (max. northing) |
Maximum in geographic units. Corresponds to top of map view. |
Overview map - display extent properties
By clicking the button on the right hand side of the configuration properties, WebOffice author opens a dialog to make extent configuration easy.
Click "ArcMap Extent button" to take over the current ArcMap map extent.

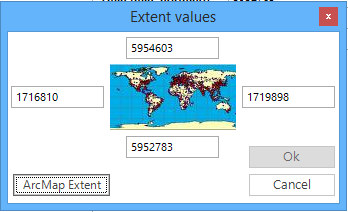

Using the current Arcmap extent
