Navigation:  WebOffice author > Stack Menu and Wizards > Queries > Create Integration

In order to use the wizard to create an integration, you have to open a project configuration.

Go through the chapter to find detailed information for every step of the wizard.

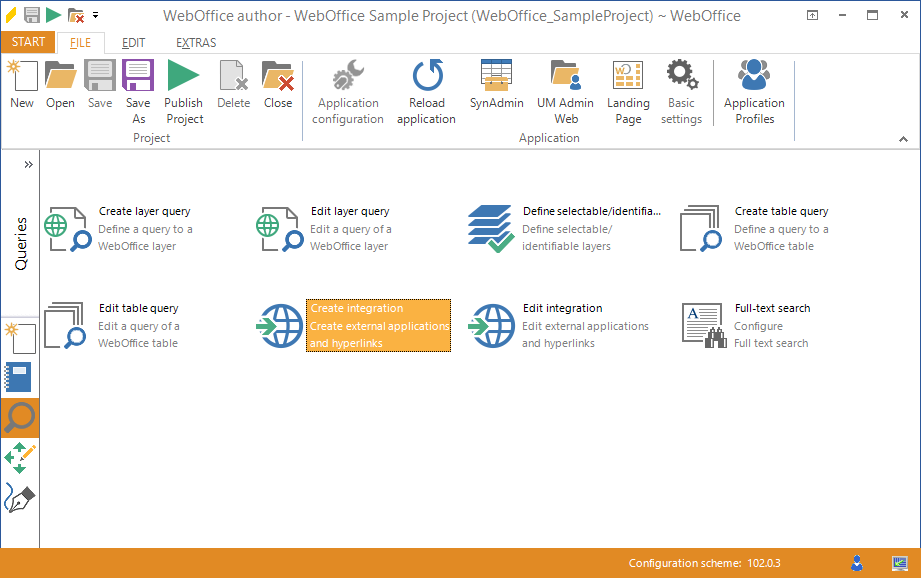

Start the Wizard:





Step 1: Query Result

In the first step you have to select the data source, i.e. a layer or table, for the integration. Then choose a query result of the selected layer/table. Click Next.

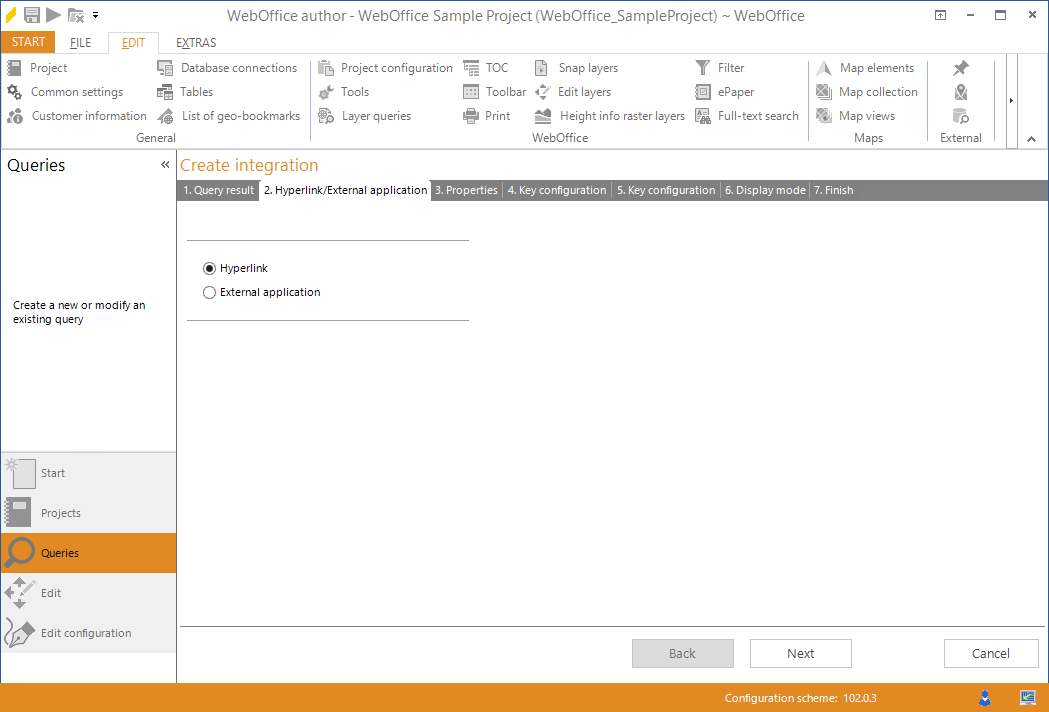

Step 2: Hyperlink/External Application

Decide whether the integration should be a hyperlink or an external application.

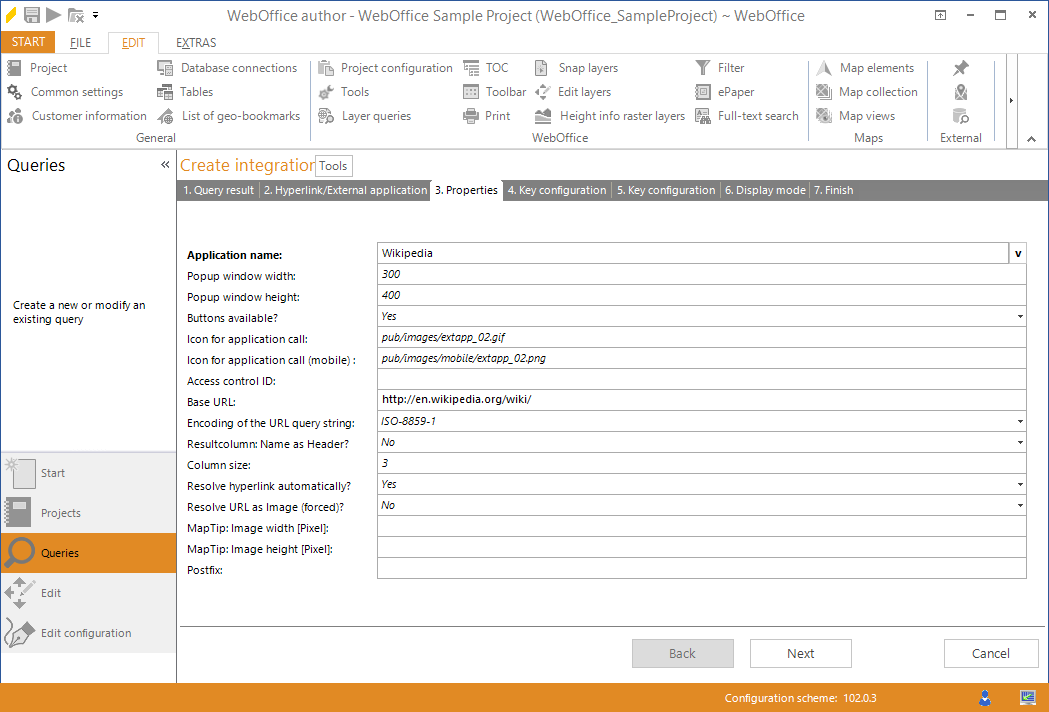

Step 3: Properties

Fill in all the necessary properties for your integration. The parameter application name is mandatory and therefore has to be entered.

Note: For detailed description of the single parameters, see chapter Hyperlink or Integration (Call FROM WebOffice)







Step 4: Key configuration

Step 4 of this wizard varies depending on the type of integration you want to create.

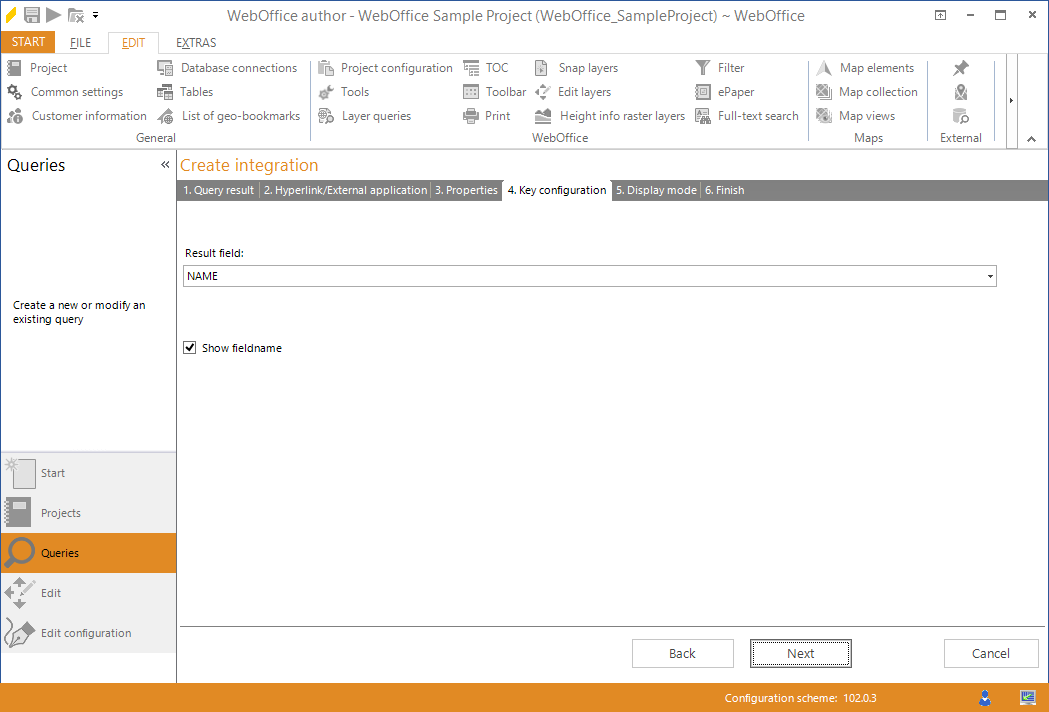

If you choose hyperlink in step 2 you may select the result field that should serve as the key field. Additionally, you can decide whether the field name should be shown or not.

Note: For detailed description of parameters, see chapter Hyperlink.

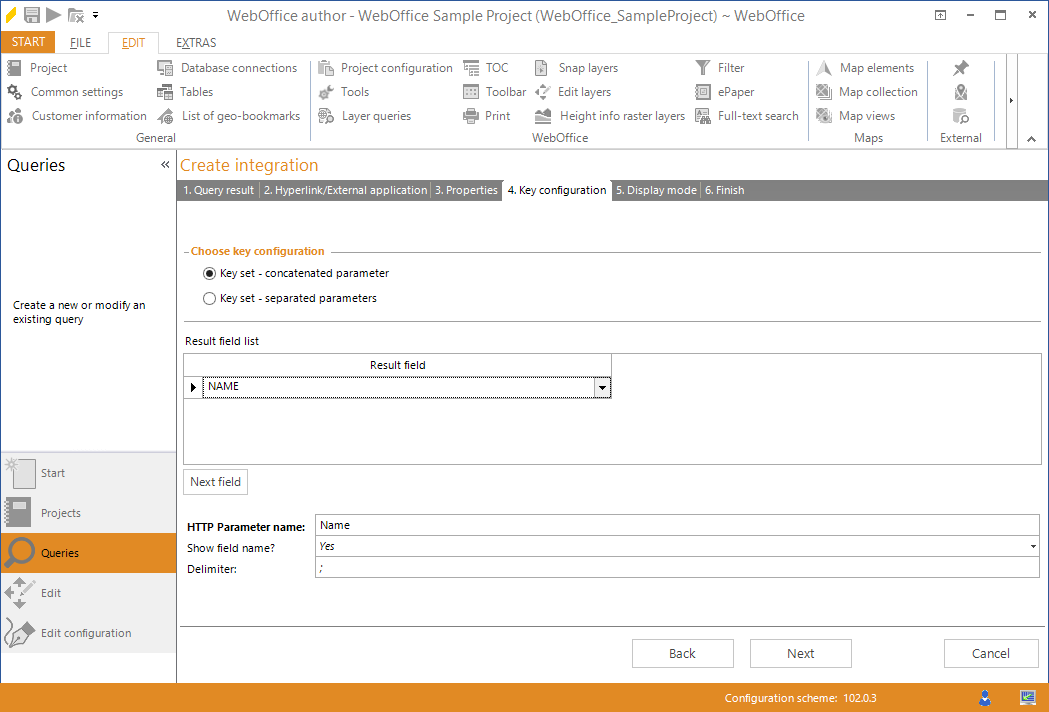

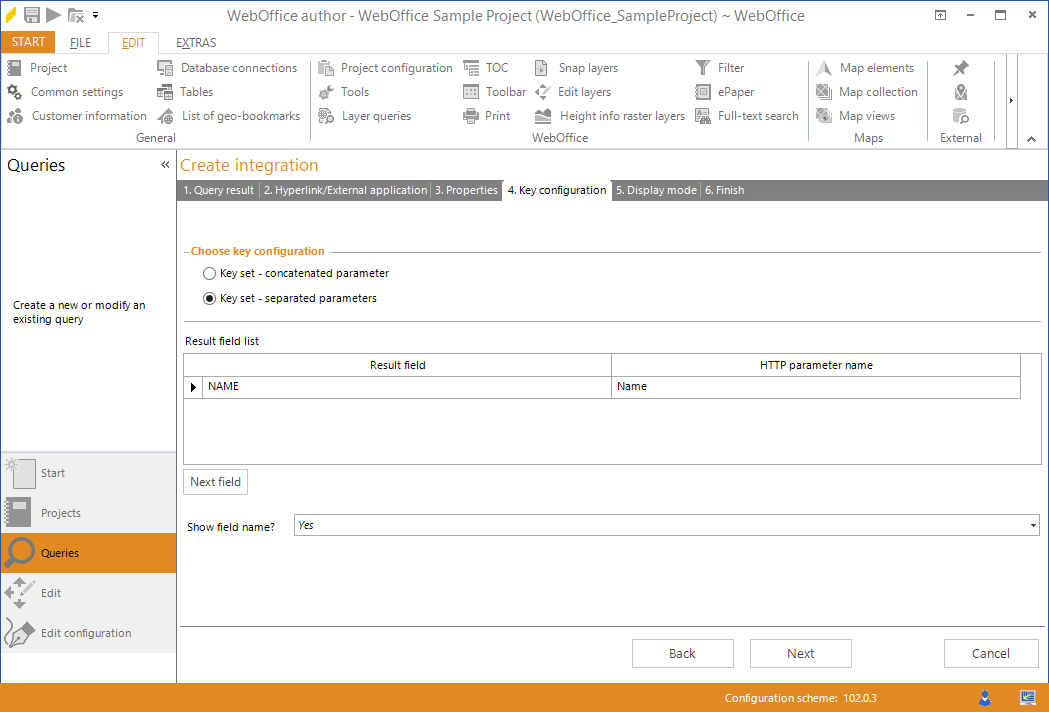

If you chose configure an external application you will first have to decide whether to use concatenated or separated parameters.

Note: For detailed description of parameters, see chapter Integration (Call FROM WebOffice).

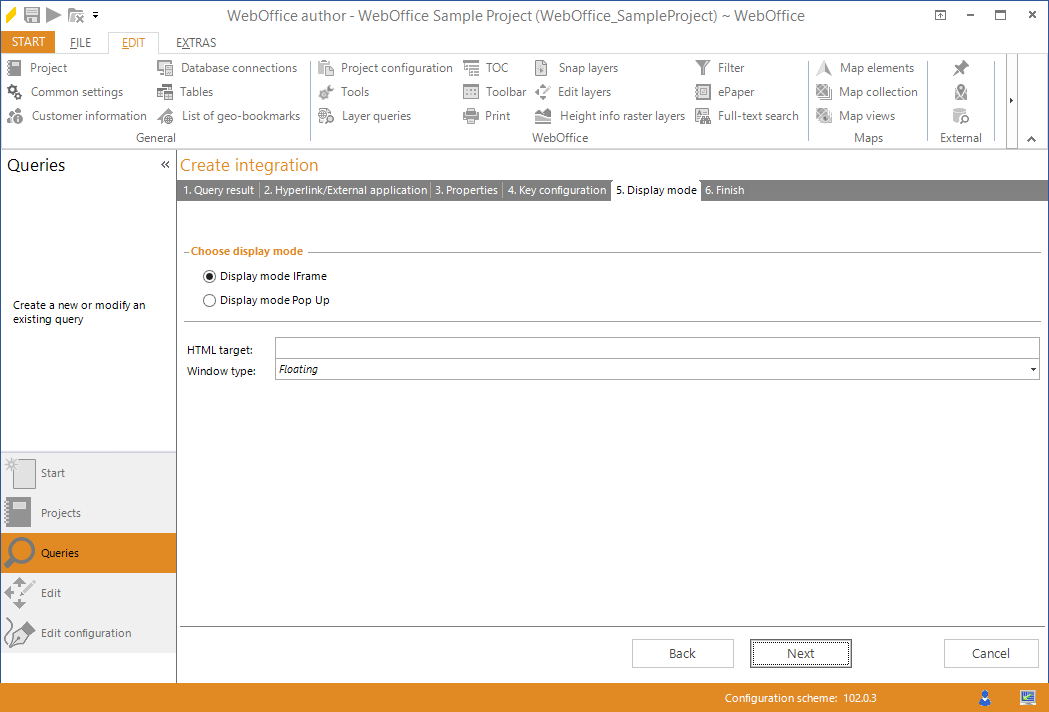

Step 5: Display Mode

Decide whether the display mode should be either iFrame or Pop Up. If necessary configure a HTML target and change the window type/options.

Note: For detailed description of the display modes, see chapter Display Mode.

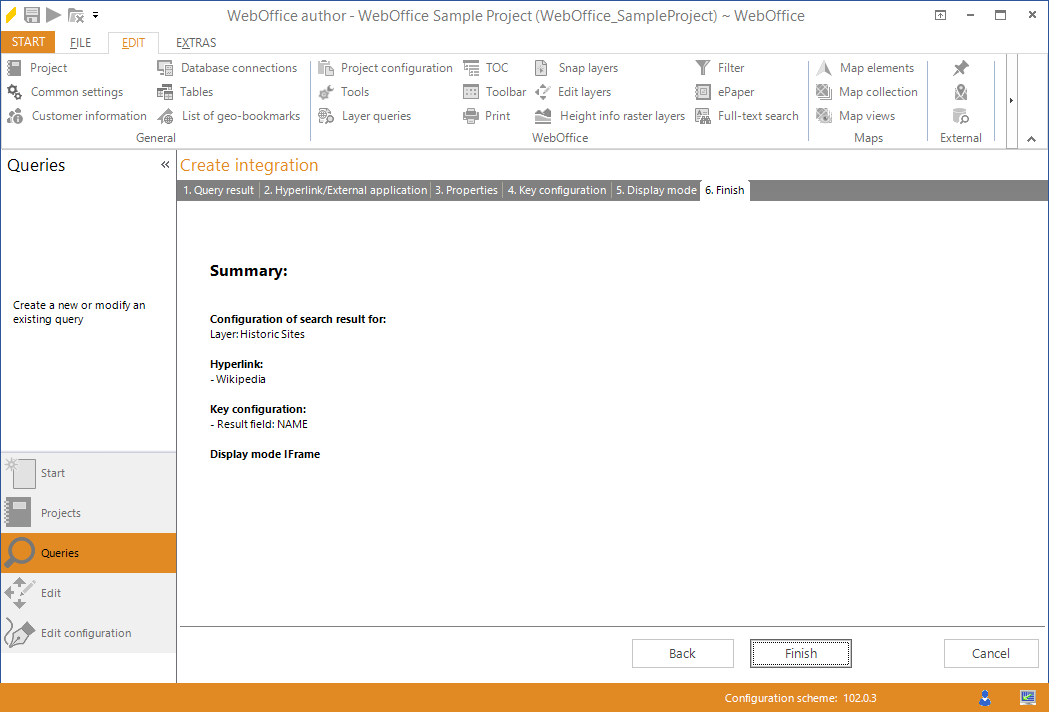

Step 6: Summary

Within the last step of the wizard you will see a summary of your configuration.







Note: See chapter Integration of External Application for details about the configuration in WebOffice author.
