The Meeting Point tool provides functionality to make map notes which can be used for easy exchange of symbols place in the map via E-Mail.
Meeting Point tool configuration
Configure different Meeting Point Symbols that are to be available in the WebOffice 10.4 SP2 clients.

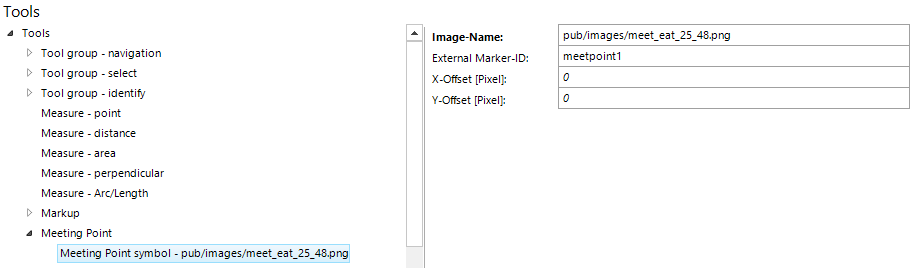

Meeting point symbol configuration
Property |
Description |
Image URL |
URL of the image for the Meeting Point symbol including file extension (.gif or .jpg), e.g.: pub/images/meet_x_20_20.png By default the following images are available in the folder pub/images (the first number in the file name is the X- and the second number is the Y-offset): •meet_x_20_20.png, •meet_magnifier_16_16.png, •meet_bubble_24_45.png, •meet_star_18_21.png, •meet_flag_blue_8_32.png, •meet_pin_blue_3_38.png.
Note: The image has to be located inside the web application and referenced via a relative path or a valid HTTP URL has to be used. To reference images outside your web application directory, create a virtual directory and refer to via HTTP URL. |
External Marker-ID |
Marker-ID used to relate external calls to the marker symbol. |
X Offset [Pixel] |
X-Offset [Pixel] for insert point of the graphics symbol. |
Y Offset [Pixel] |
Y-Offset [Pixel] for insert point of the graphics symbol. |
Meeting point symbol properties
Besides manually configuring meeting point symbols you also have the option to add predefined symbol sets via the context menu of the tool Meeting Point.
Predefined symbol sets im the context menu of the tool Meeting Point
Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.
Note: See chapters Measure/Markup and Place Symbol for details about the tool appearance in the WebOffice html client.
Note: See chapter Add Drawing for details about the tool appearance in the WebOffice mobile client.
Note: See chapter Meeting Point for details about the tool appearance in the WebOffice flex client.
Note: See chapter Draw for more details about the measure/drawing tools in the WebOffice core client.
