Map Copy |

|
Map Copy |
|
Configure the Map Copy tool to copy a screenshot to the clipboard or MS Word. The resolution may be configured (not only screen resolution possible).

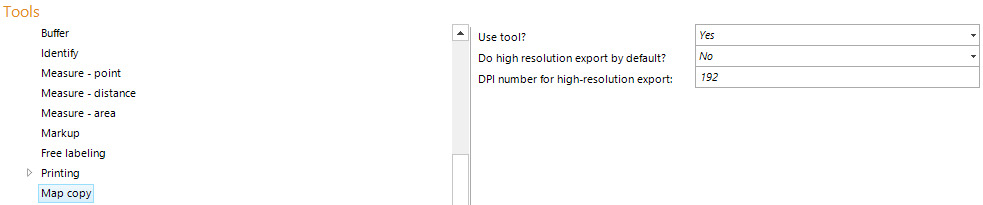

Map copy tool configuration
Property |
Description |
Use tool? |
Control if this tool is available in the WebOffice 10.4 SP2 clients or not. |
Do high resolution export by default? |
Specifies whether exports should use the high resolution defined in the parameter below or the default 96 DPI. |
DPI number for high-resolution export |
Resolution (in DPI) for Export in high resolution. The value is usually a multiple of 96 (192 or 288). The low resolution export works with the resolution of the screen (96 DPI). An export with less than 96 DPI is not allowed. |
Map Copy tool properties
In case you want to provide a high resolution export (DPI: 288), be sure that all services involved in the map export, have the necessary image dimension values configured.
Configure sufficient image dimension values for high resolution map export
Note: See chapter Image Blending for details about the configuration of image blending settings in the application configuration.
Note: See chapter Export Map Image for the tool appearance in the WebOffice html client.
