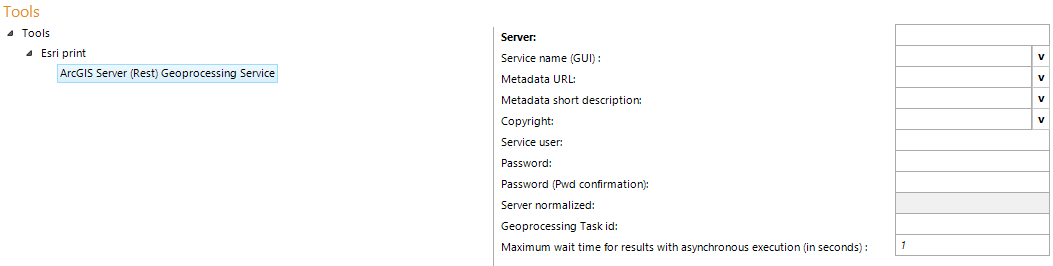

ArcGIS Server Geoprocessing Service

Property

Description

Server

Specifies URL of an ArcGIS Server Geoprocessing Service.

Example:
http://<myserver>/ArcGIS/rest/services/<myService>/GPServer

Example for PrintingTools:
http://<myserver>:6080/arcgis/rest/services/Utilities/PrintingTools/

Service name (GUI)

Service name of Map Service displayed in the GUI.

Metadata URL

Configure a reference to a metadata document (must be available via HTTP) as URL.

Note: You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display.

Metadata short description

Provide a short description for the metadata (line breaks with "\n").

Copyright

Service specific copyright text to be added to the configured project copyright if the map service contributes to the map.

Note: The service specific copyright will only be displayed if the map element Copyright is configured.

Note: Detailed information about the use of these attributes can be found in chapters Template (File Name) and WebOffice ePaper Template (File Name).

Service user

User login for accessing the ArcGIS 10.4 for Server service (ArcGIS service user).

Password

Password of user accessing ArcGIS 10.4 for Server service.

Password (Pwd confirmation)

Pwd confirmation.

Server normalized

Normalized server URL

Geoprocessing Task ID

Technical ID (Name) of task to be executed.

Note: If you are configuring this service for Esri print, the default value that corresponds to the Esri PrintingTools is "Export Web Map Task".

Maximum wait time for results with asynchronous execution (in seconds)

Specifies how long the client waits for results of the asynchronous executed task. If the task was executed successfully during this time, the result will be processed immediately if possible.

If the maximum time has elapsed, the client will be available again. With setting the value to "0" the client will not wait for any results.
