WebOffice author > Edit Menu > Core Category

Configure Ribbons to arrange the configured tools of your WebOffice 10.4 SP2 project for the WebOffice core client. When configuring ribbons, you have to define a name for each ribbon. Optionally, it is also possible, to classify each ribbon into several tool groups. Finally, specify the tools that should be placed in the ribbon.

Note: Ribbons will only appear in the WebOffice core client.

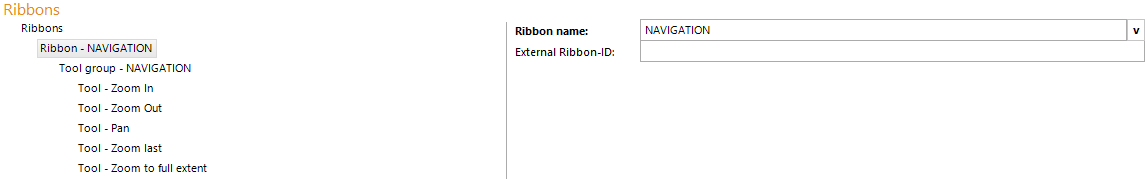

Ribbon configuration

Properties	Description
Ribbon name	Ribbon name displayed in WebOffice core client
External Ribbon-ID	Ribbon id used for external calls

Ribbon properties

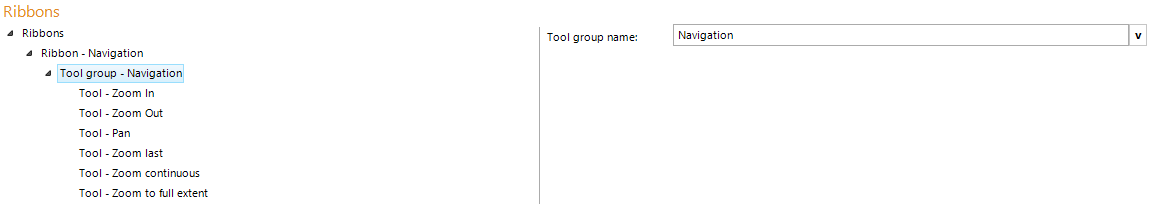

Tool group configuration

Properties	Description
Tool group name	Tool group name displayed in WebOffice core client

Tool group properties

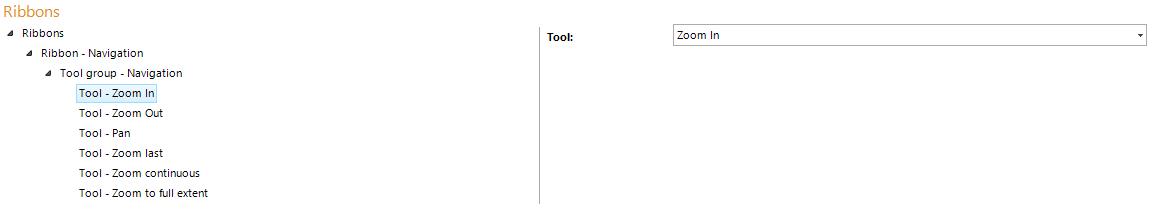

Tool configuration

Properties	Description
Tool	Tool

Tool properties

If you quickly want to create a ribbon configuration you can add a ribbon set by opening the Ribbons context menu. There are two different ribbon sets available in WebOffice author, that contain the most frequently used tools which can be extended for tools that are not inlcuded at any time:

•START

•FAVORITES

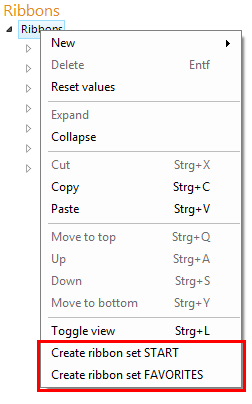

Create a default ribbon set

Note: You will find more details about calling ribbons with the API in chapters WebOffice URL Call Interface and WebOffice Script API - WebOffice core.
