In order to select objects by drawing an area please activate the tool Select Line.

Input parameter	Description
Query	External layer ID on the WebOffice 10.4 SP2 query layer. Note: The layer must be identifyable/selectable.
Return Key	Specifies the field to be returned in the response. Note: It is possible to select more return keys by using the Ctrl key on the keyboard.
Callback	Specifies a JavaScript callback function.
set as startmode	By checking this parameter the tool will initially be activated after refreshing the map widget.

Input parameter - Select Area in WebOffice map widget testcontainer

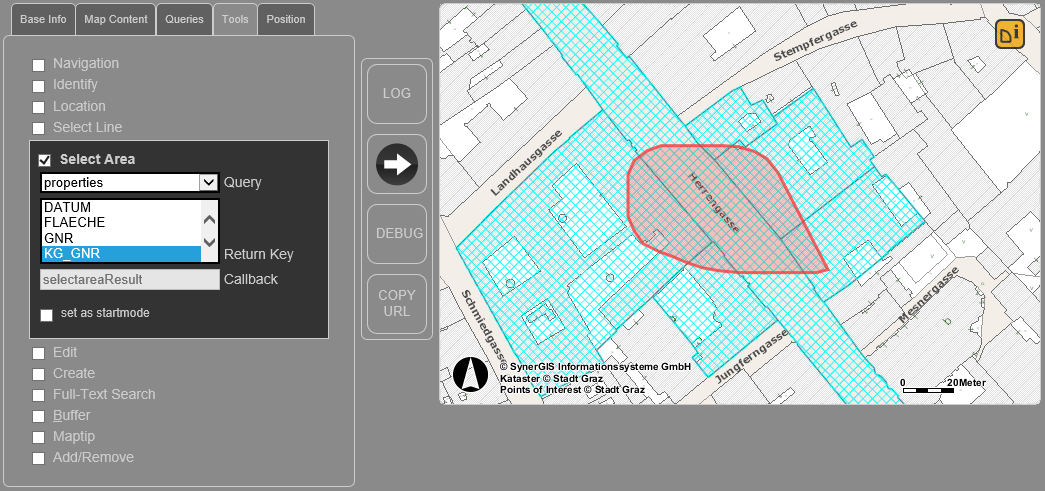

WebOffice map widget testcontainer - Select Area

Note: Please find more details about the configuration of the selection tool in WebOffice author in the chapter Select - Polygon.
