Navigation:  How To > How to Configure... > Custom Pages > LMR/ZMR Integration

This Custom Page allows users to search for people based on addresses directly in LMR/ZMR (Kommunalnet). Using this request the address code (ADRCDSUBCD) will be transferred to the register of residents. It is required, that the user already is successfully connected to the register of residents. Please configure the custom page lmr_client.jsp from the directory C:\Tomcat\webapps\<WebOffice application>\pub\custom_pages as follows:

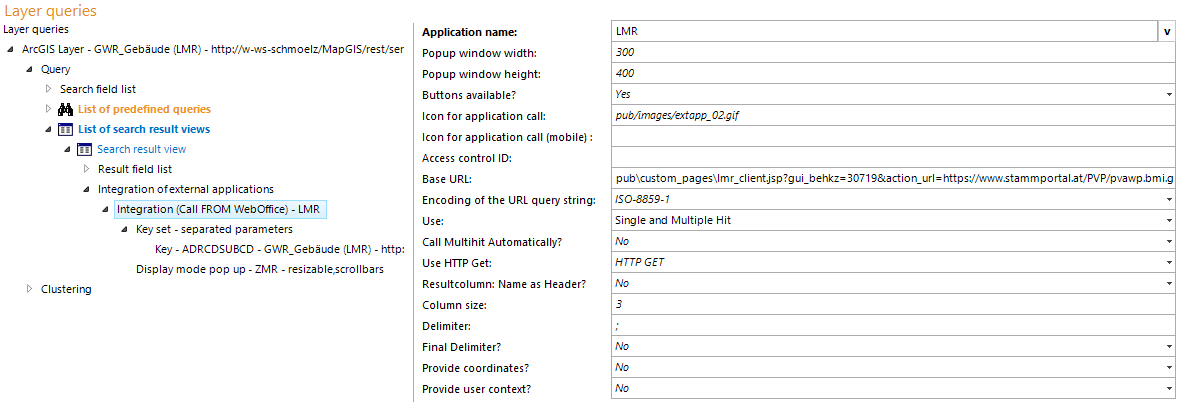

(1) Integration (Call FROM WebOffice)



Configure a Integration (Call FROM WebOffice) directly on the search result of a layer containing the address code. The following Base URL can be used as an example:

pub\custom_pages\lmr_client.jsp?gui_behkz=30719&action_url=https://www.stammportal.at/PVP/pvawp.bmi.gv.at.ZMR-LMRG-T-TEST/bmi.gv.at/zmrtest/servlet/guiproxy



gui_behkz: corresponds to the government agency index

action_url: corresponds to the URL from the Kommunalnet request

Among other the following action_url cab be used:

•ZMR/LMR system: https://www.stammportal.at/PVP/pvawp.bmi.gv.at.ZMR-LMRG-T-TEST/bmi.gv.at/zmrtest/servlet/guiproxy

•LMR - analyses: https://www.stammportal.at/PVP/pvawp.bmi.gv.at.CLMG-T/bmi.gv.at/clm-t/pvpLogin.do?visibleClientAddress=https://www.stammportal.at/PVP/pvawp.bmi.gv.at.CLMG-T/bmi.gv.at/clm-t



For Use Single and Multiple Hit can be configured, so that more addresses at once can be requested.

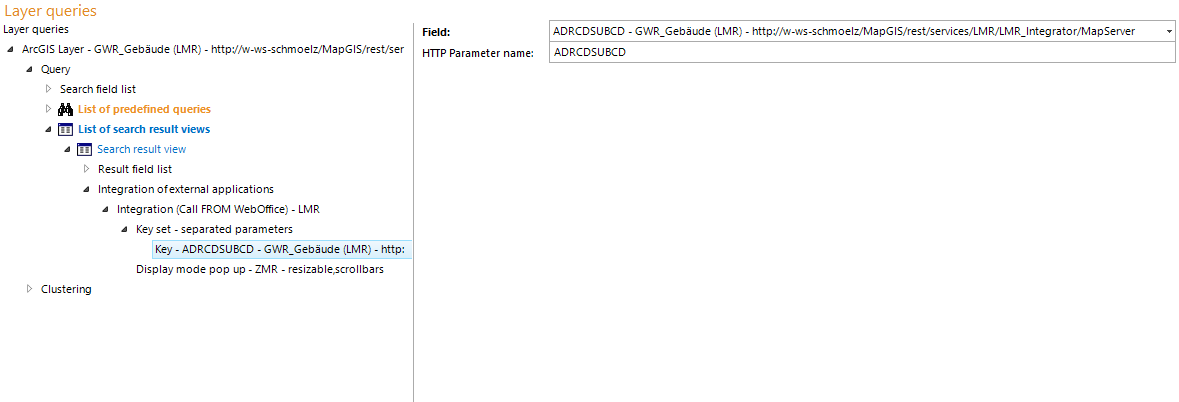

(2) Key set - separated parameters



As key field (Key set - separated parameters) the field containing the value for ADRCDSUBCD has to be used. The HTTP Parameter name is ADRCDSUBCD.

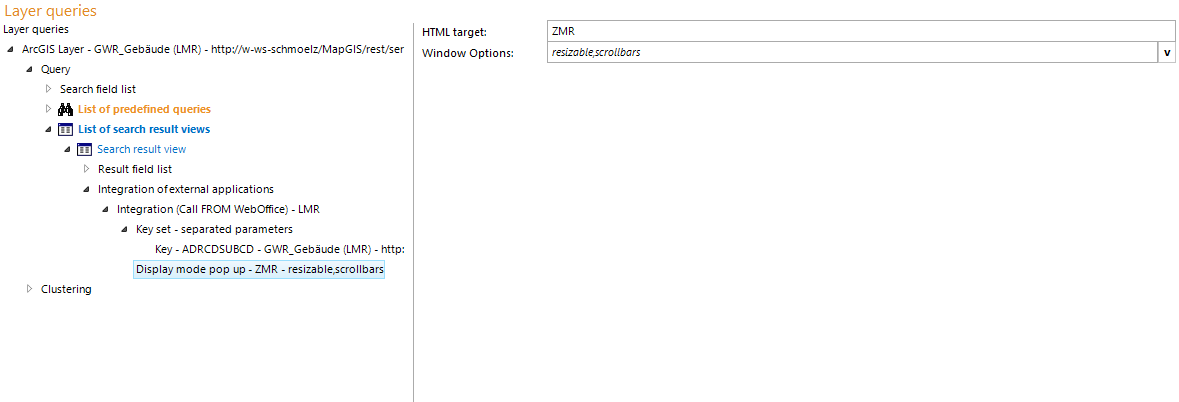

(3) Display mode pop up



As display mode use pop up with the HTML Targert ZMR.





(4) Usage in the WebOffice core client

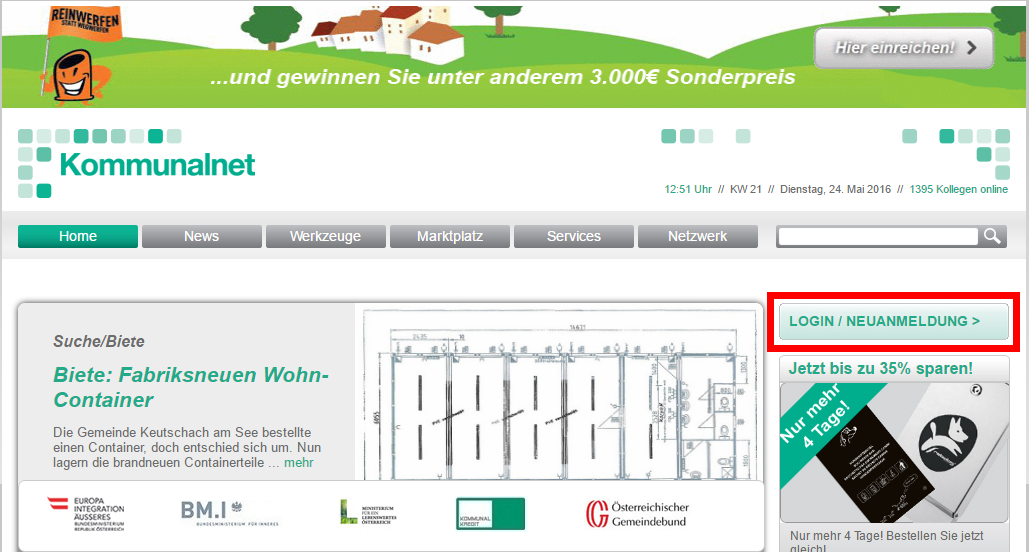

Login at Kommunalnet (www.kommunalnet.at).

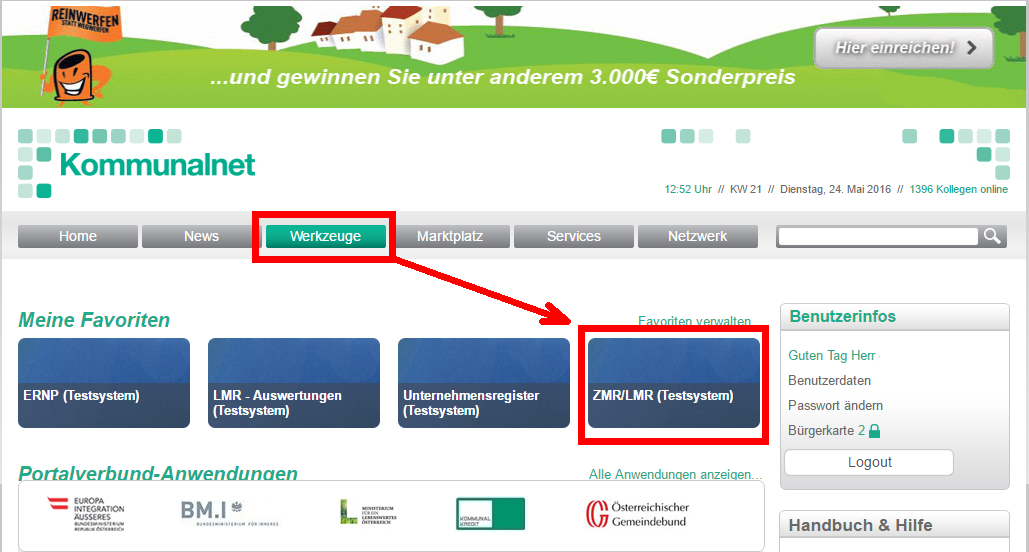

Connect to the tool (Werkzeuge) ZMR/LMR System.

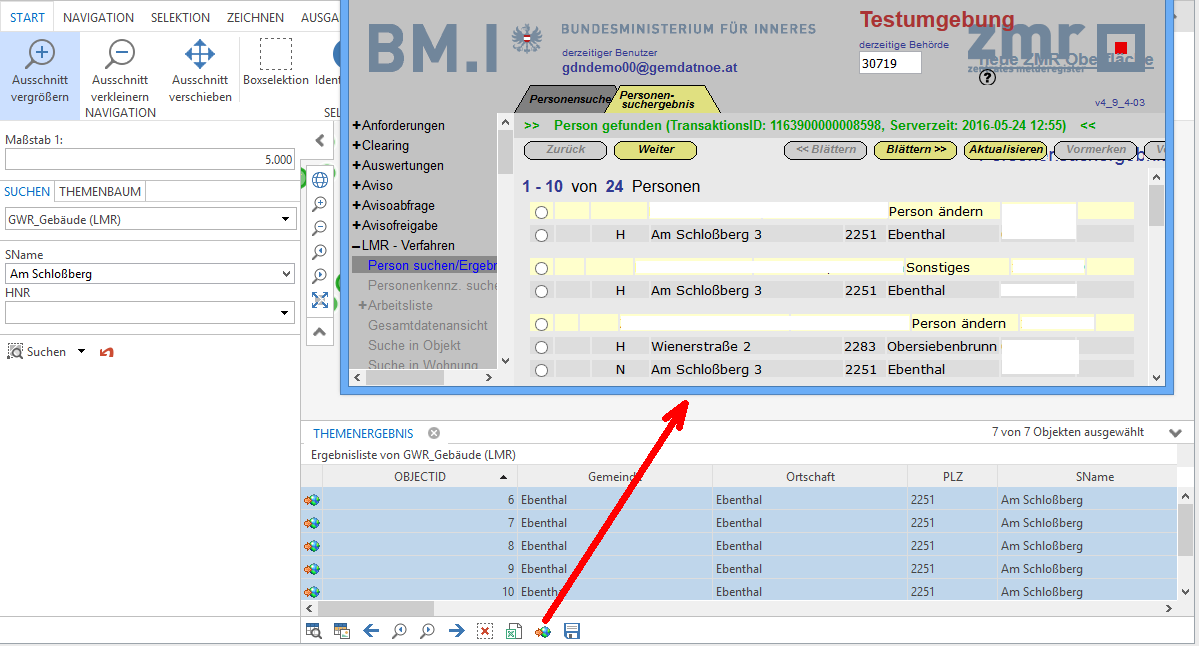

After having connected successfully you can use the integration directly from the search result of your WebOffice 10.4 SP2 project, as it has been configured in the steps above.





Note: To use the request to the Kommunalnet the security settings of the browser (especially IE) have to be checked and modified.

Note: See chapter Integration (Call FROM WebOffice) for details about the configuration of calls from WebOffice in WebOffice author.
