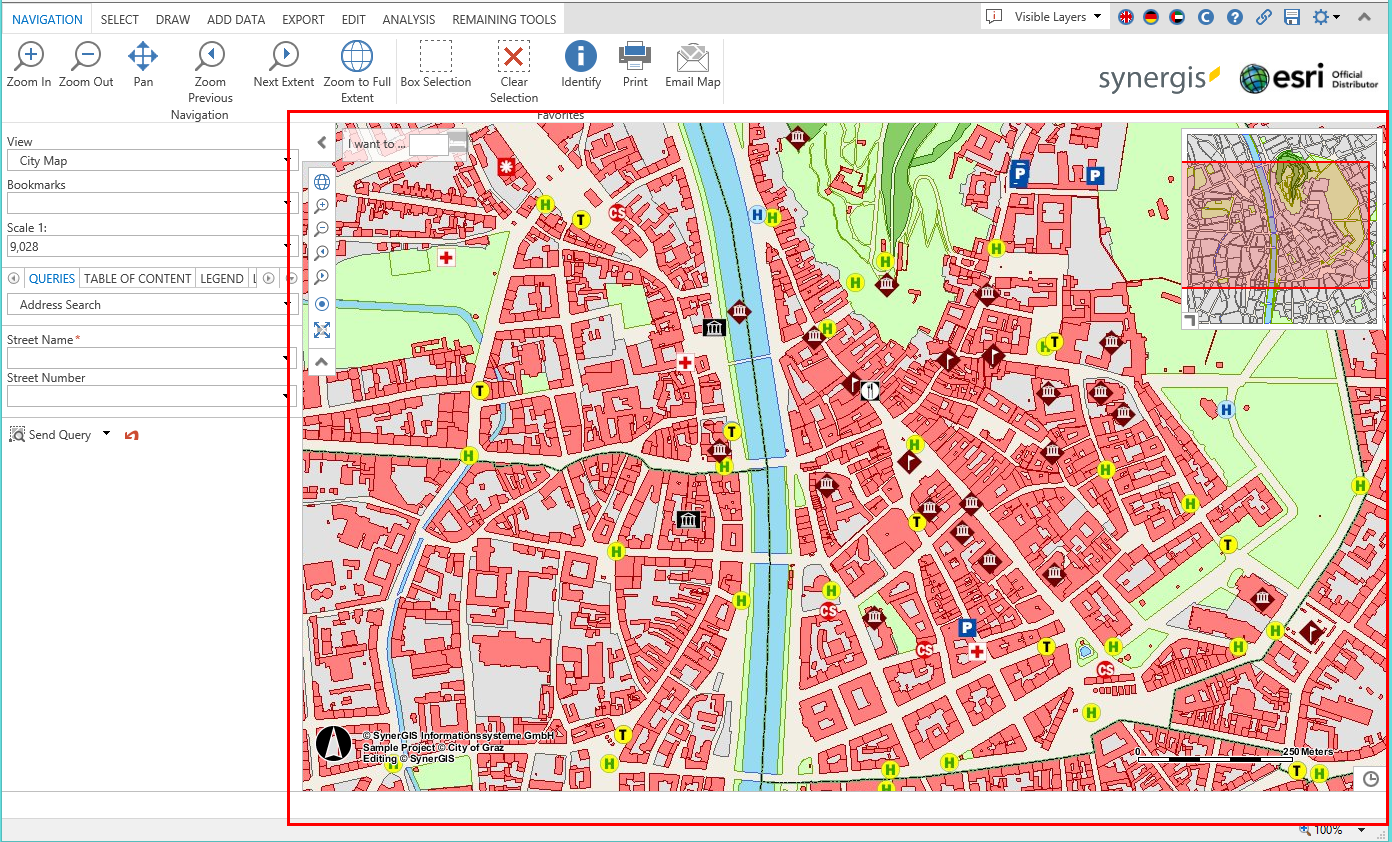

The Main Map Display contains the current map extent, additional tools, navigation elements an an overview map.





Der Hauptkartenbereich teilt sich weiters in 3 unterschiedliche Bereiche:

The Main Map Display is separated in three different divisions:

•Navigation Elements

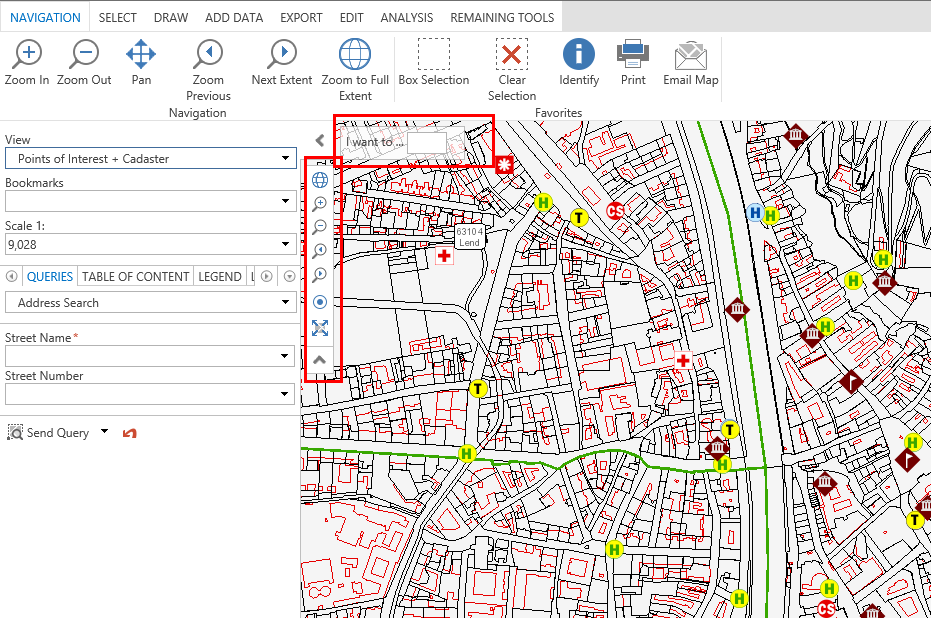

•Quicktools

•Overview Map







Additional elements in the Main Map Display are the scale bar, north arrow and the copyright section.





Scale bar

The scale bar is positioned on the right lower corner and can be adapted by configuration regarding to size, color and scale unit.

Note: Further details regarding the configuration with WebOffice author you will find in chapter Scale Bar.







Northarrow and Copyright-Section

The northarrow and the copyright-section is positioned in the left lower corner of the client. Based on the configuration there are two different possibilities concerning the display of copyright elements:

•project-based Copyright-text

•layer-based Copyright-text





Note: Further details regarding the configuration of the project-based copyright-text with WebOffice author you will find in chapter Copyright.

Note: Further details regarding the configuration of the layer-based copyright-text with WebOffice author you will find in chapter ArcGIS Server Karten-Service.

Note: Further details regarding the configuration of the northarrow with WebOffice author you will find in chapter North Arrow.



Notes and Warnings

Map indications and notifications are displayed in WebOffice core Client. This messages are shown on top of the main map display.

Messages will be shown, if:

•additional informations should be provided

•the user should be warned

oregarding unexpected situations while processing server responses or

oof user-interactions that lead to unsexpected results



Furthermore the messages will be shown in different colors. Green colored hints include additional informations regarding the process of functionalities in

WebOffice core Client.







Yellow colored messages are standing for unexpected situations in WebOffice core Client.





Red colored messages indicate not executable functionalities. In the following case the user has to enter a correct value for the query streetname, so that WebOffice 10.4 SP2 is able to execute the query.







Note: In WebOffice core client intercepted SOE Errors could be shown in the user interface.

Therefore it is also possible, that database-specific Error-Messages (e. g. underlying DB error) can be shown in the GUI. If you configure an unique constraint on an attributefield on database-level and the user enters an existing value twice - the corresponding (database) error message can be displayed in the client. To use intercepted SOE Errors you have to configure a specific attribute on the edit tool. For details see intercepted SOE Errors in chapter Editing.
