Map Services Tab |

|
Map Services Tab |
|
The tab map services offers detailed information about the used map services segmented into ArcGIS Server map services and external map services. The servers are listed in the following order:
•ArcGIS Server Services
•ArcGIS Online Services
•Internet (Other)
In this way you can easily check the most important properties of all map services that are being used in WebOffice 10.4 SP2 projects. Via the project filter on top right you can easily get the information to all map services of a single project.

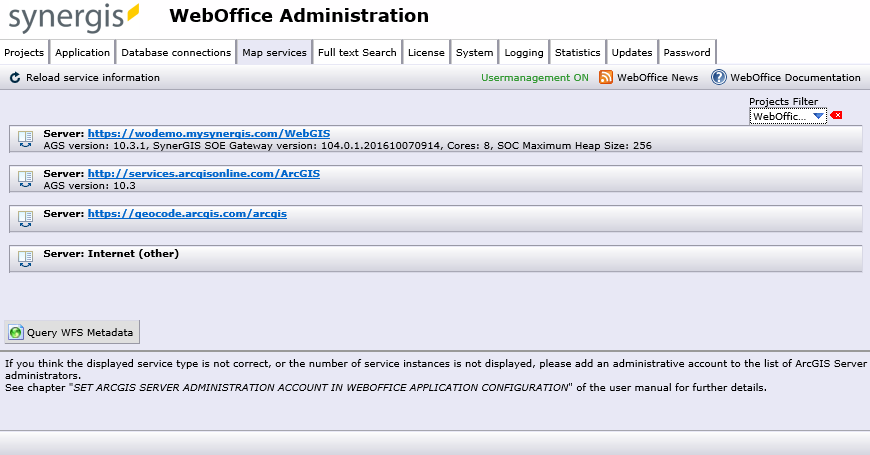

SynAdmin map services tab
Server (on premise or online)

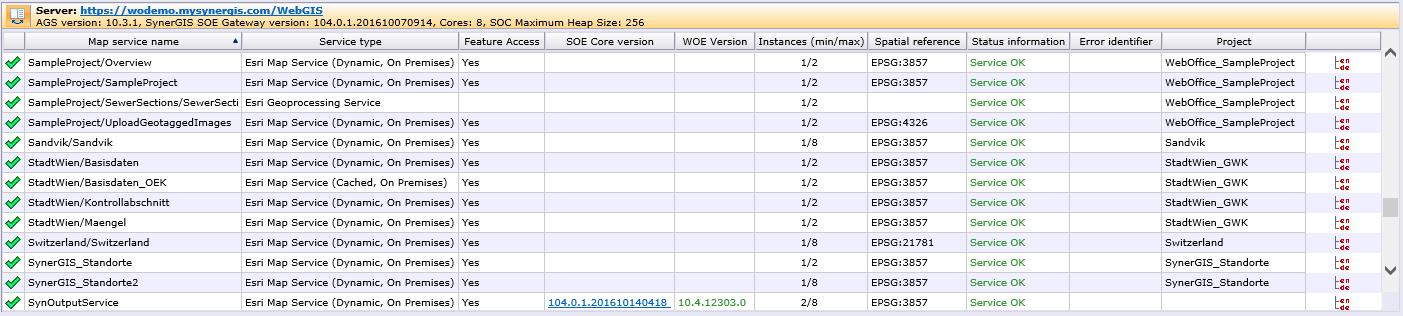

Map services (server - on premise or online)
In this section you will find detailled information to supported extensions of the ArcGIS for Server connection, such as:
•ArcGIS 10.4 for Server version
•Server Object Extension version
•Number of cores
•SOC Maximum Heap Size
Furthermore you will get detailled information to the single map services.
Column |
Description |
Availability |
Availability of the map service
|
Map service name |
Name of the map service (incl. sub folder) |
Service type |
Type of the map service (map, feature, geo processing, ...), dynamic or cached |
Feature Access |
Yes/No |
SOE Core Version |
Version of the Server Object Extension |
WOE Version |
Verision of the WebOffice Extensions |
Instances (min/max) |
Number of instances (min/max) |
Spatial reference |
Spatial reference of the map service |
Status information |
Status of the map service |
Error identifier |
Log identifier, when initialization failed |
Project |
Name of the project using this map service |
Dynamic, multilanguage legend |
Button for generating a dynamic, multilanguage legend
|
Server (Internet):

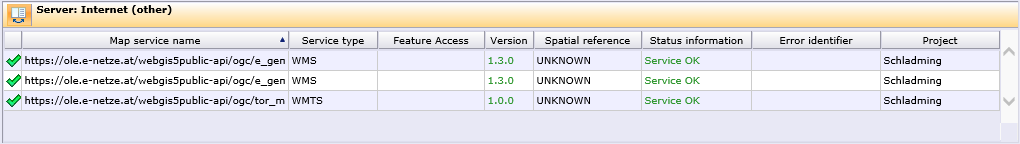

Map services: Server (Internet)
In this section you will find detailled information to the external services.
Column |
Description |
Availability |
Availability of the map service
|
Map service name |
Name of the map service (incl. sub folder) |
Service type |
Type of the map service (map, feature, geo processing, ...), dynamic or cached |
Feature Access |
Yes/No |
Spatial reference |
Spatial reference of the map service |
Status information |
Status of the map service |
Error identifier |
Log identifier, when initialization failed |
Project |
Name of the project using this map service |
With the button 'Query WFS Metadata' metadata of WFS services can be requested.
Note: For detailed information regarding WFS services, please, see chapter WFS Services.
