In this step the map services of the Sample Project will be published to the server.



Note: Ensure that there exists a connection to ArcGIS Server with at least publisher rights. If there is no connection or only a connection with user rights, then create a new one according to chapter Check ArcGIS Server.

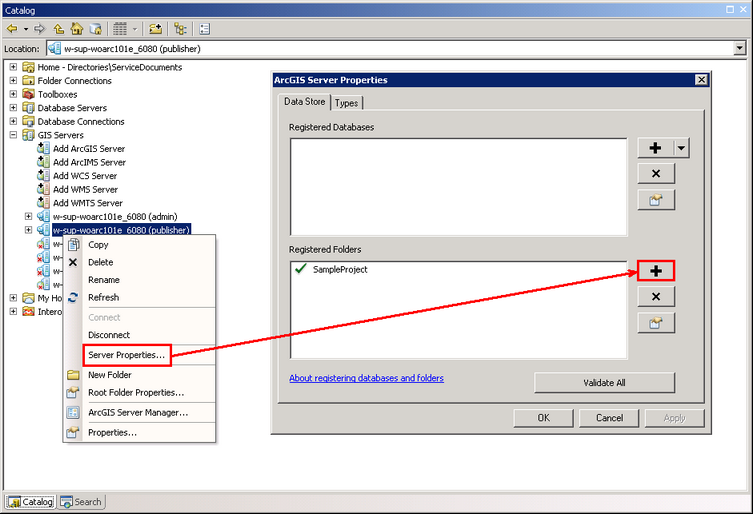

First you need to register the SampleProject.gdb with the server. Therefore, right-click your ArcGIS 10.2 for Server connection and open the server properties. Go to tab Data Store and add the SampleProject.gdb to the registered folders.





Differences of the publishing process regarding dynamic and cached map services will be shown using the MXDs SampleProject_Cadaster.mxd (dynamic) and SampleProject_LandDev.mxd (cached). Publish the other map documents as described below.





Publish Dynamic Map Services



Start with the publishing of all dynamic services by opening the MXD SampleProject_Cadaster.mxd from <ArcGIS Server location>\directories\ServiceDocuments.



Choose File > Share As > Service ...





Pick the first option Publish a service in the window Share as Service.

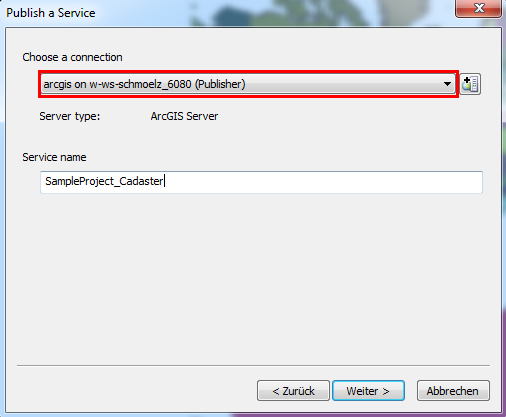

Choose a connection and keep the default service name.

Note: Ensure that the server has a Publisher role.





By default the services are published to the root folder of ArcGIS 10.2 for Server.

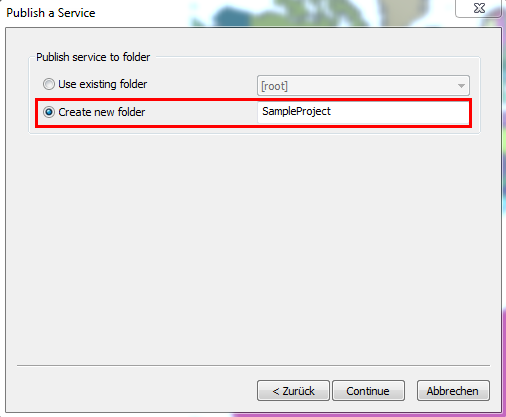

For the sample project create a new folder SampleProject.

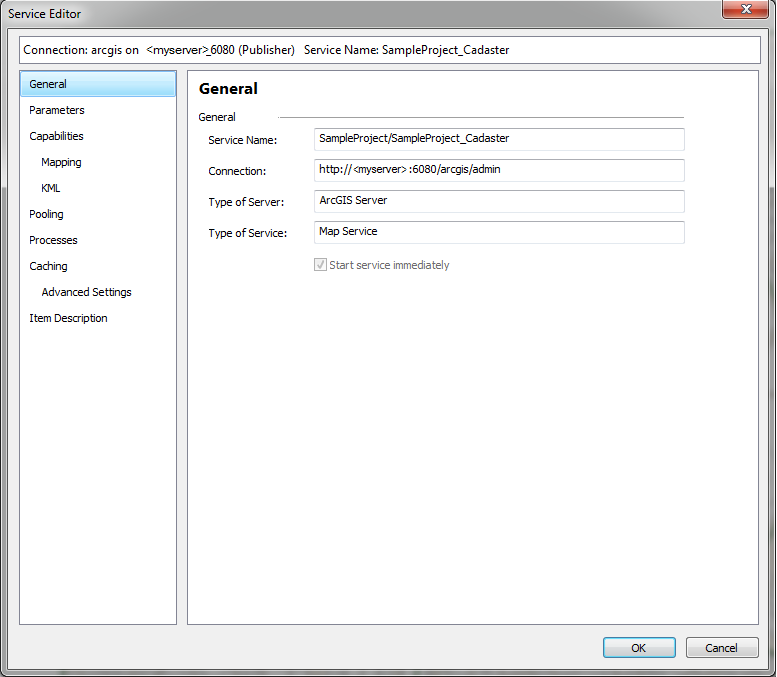

In the Service Editor window you can define properties of the service.

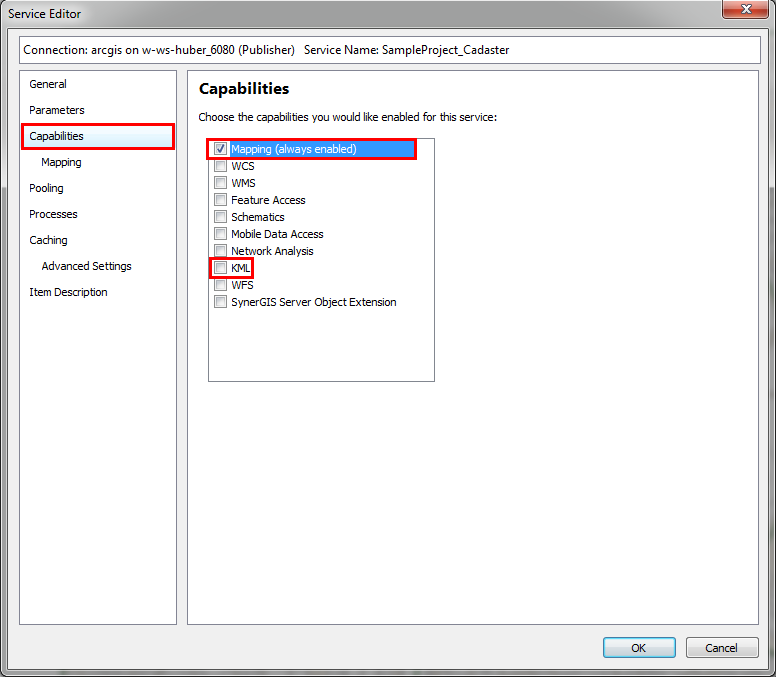

Pick Capabilities and deselect KML, Mapping must always be enabled.

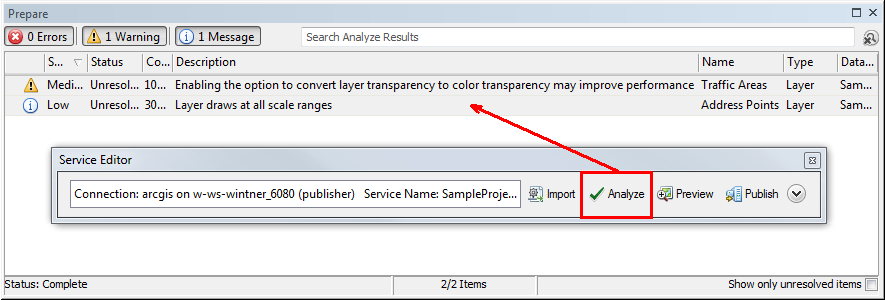

In a next step pick Analyze to find potential troubles before publishing the map to the server.





A window appears, that shows errors, warnings and messages. In case of the Sample Project files you can leave the warnings and messages unresolved, errors would have to be corrected.

Publish the map to the server with the Publish button.

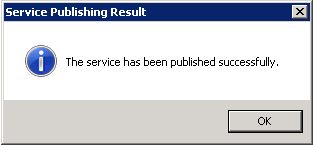

At the end a note confirms, the the service for SampleProject_Cadaster.mxd has been successfully published.





Publish the following MXDs in the same way as described above:

SampleProject_Elevation.mxd

SampleProject_Overview.mxd

SampleProject_Poi.mxd

SampleProject_Sewer.mxd



Publish Cached Map Services

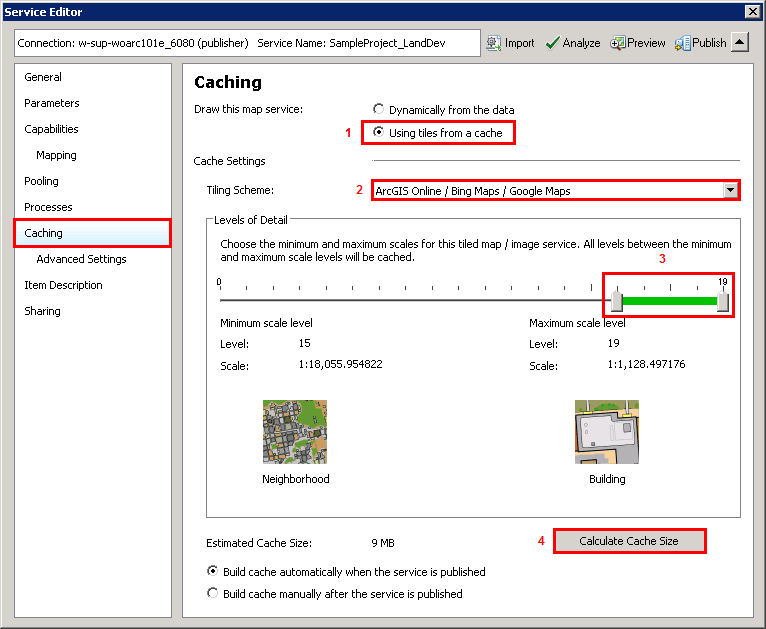

For the sample project the MXD SampleProject_LandDev.mxd will be published as a cached service. Proceed through the steps as shown before until reaching the service editor. Deactivate KML in Capabilities, then pick Caching and choose Using tiles from a cache (1). Set tiling scheme to ArcGIS Online / Bing Maps / Google Maps (2) and choose 15 to 19 as Levels of Detail (3). Press the button Calculate Cache Size to calculate an estimated cache size (4).

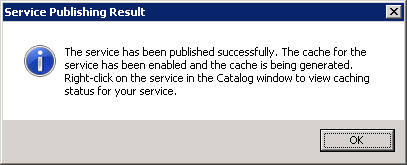

The estimated cache size will be about 3 MB. Leave all other settings unchanged and publish the service. The cache generation will start immediately after publishing the service.

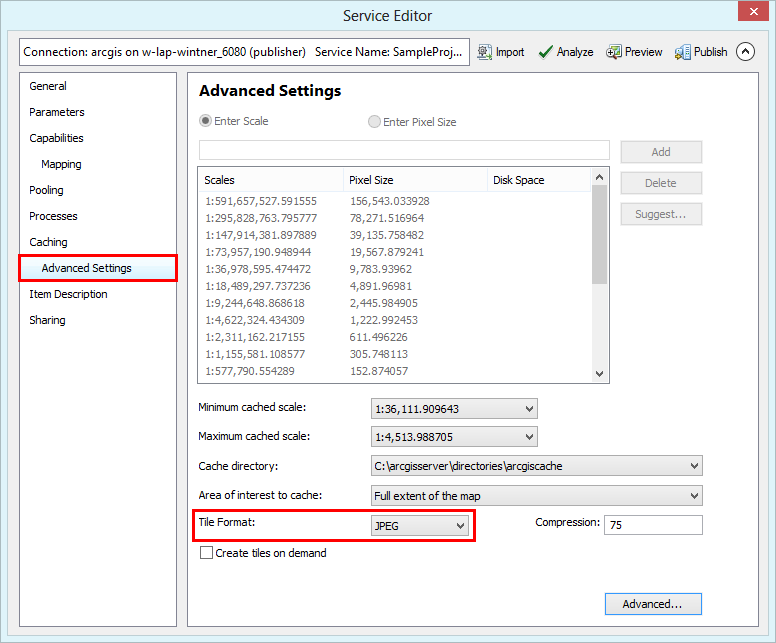

Now publish the MXD SampleProject_Orthophoto.mxd the same way except one point. Before clicking Publish, go to Advanced Settings and change the tile format to JPEG.
