Point Symbology |

|
Point Symbology |
|
The Point Symbology specifies the selection display symbology for geolocator search results.

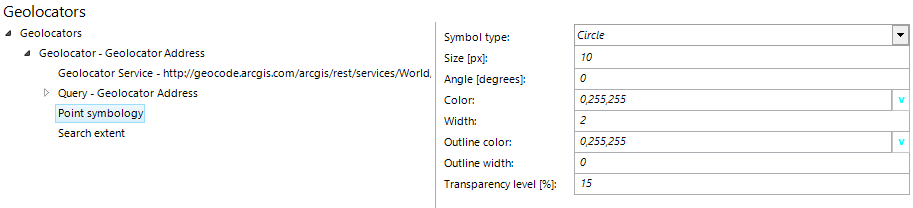

Point symbology configuration
Properties |
Description |
||||||||||
Symbol type |
Choose between different symbol types:
|
||||||||||
Size [px] |
Specifies the symbol size in pixels. |
||||||||||
Angle [degrees] |
Specifies the symbol angles in degrees. |
||||||||||
Color |
Specifies the fill color of the selection symbology. The ArcMap selection color is used default. |
||||||||||
Width |
Specifies the width of the symbol. |
||||||||||
Outline color |
Outline color of the selection symbology. |
||||||||||
Outline width |
Outline width of the selection symbology. |
||||||||||
Transparency level [%] |
Specifies a transparency in percentage for the selection symbology. |
Point symbology properties
Note: See chapter Geolocators for general information regarding geolocators.
Note: In order to provide a geolocator search in your WebOffice 10.2 SP3 project you need to configure a geolocator service. See chapter Geolocator Service for details.
Note: Define a geolocator query together with your desired result fields. See chapter Geolocator Query for details.
Note: Specify a certain search extent in Search Extent.
