Simple Thematic Mapping

 Previous pageReturn to chapter overviewNext page

Using the Simple Thematic Mapping configuration users can change layer symbology on the fly. The principle of the Simple thematic mapping functionality is to apply a symbology style in terms of a layer file to a specific layer of a dynamic map service.



Be aware that it is necessary to activate Dynamic Workspaces on the service that is to be used for simple thematic mapping. Open ArcGIS Server Manager and navigate to the Service, then Capabilities and check the box Allow per request modification of layer order and symbology.

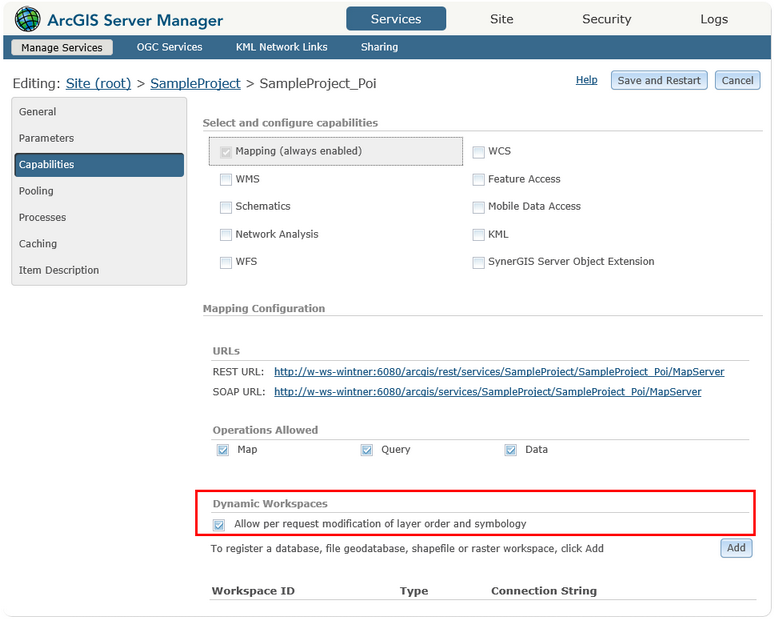

Activate dynamic workspaces on the concerned map service

Activate dynamic workspaces on the concerned map service



Currently, WebOffice 10.2 SP3 supports the following renderer:

•SimpleRenderer
•UniqueRenderer
•ClassBreaksRenderer



Currently, WebOffice 10.2 SP3 supports the following symbols:

•SimpleFillSymbol
•SimpleLineSymbol
•SimpleMarkerSymbol
•PictureMarkerSymbol
•CharacterMarkerSymbol
•TextSymbol (in combination with annotation)



Note: WebOffice 10.2 SP3 does not support any custom renderers in layer files.



Add the Simple Thematic Mapping element below the ArcGIS Layer you want to provide additional mappings for. Then define one or more styles that point to a layer file that is saved on the GIS Server (e.g. <ArcGIS Server location>\directories\WebOfficeLayerFiles).

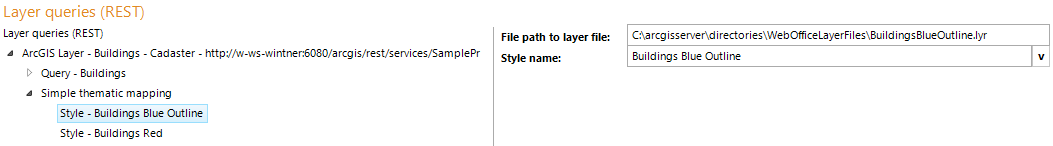

Simple thematic mapping configuration

Simple thematic mapping configuration



Property

Description

File path to layer file

The layer file specifies the symbology of the layer to be used.

Note: The configured file path will get resolved on the ArcGIS Server machine. It must therefore be a valid file path on the GIS Server and accessible by the local ArcGIS account (e.g. <ArcGIS Server location>\directories\WebOfficeLayerFiles).

Style name

Specifies the name that will be displayed in the user interface (GUI).

Simple thematic mapping properties



Note: The WebOfficeDataShare directory is a prerequisite for this tool. See chapter List of Data Share Directories for details.

Note: See chapter Simple Thematic Mapping for details how to use simple thematic mapping in the WebOffice html client.
