In WebOffice 10.2 SP3 a static prerendered Legend image can be configured for every map view.

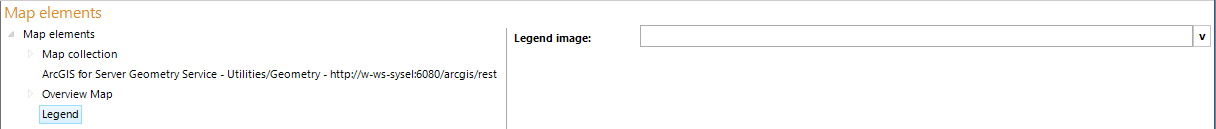

Legend configuration

Property

Description

Legend image

URL to image used as static Legend image.

Note: URL may be absolute or relative (to web application root, e.g. 'pub/legend.jpg').

configuration legend

If there are several map views and a static legend image is configured only on one map view or one map element, the text “No legend information available” will be displayed for the other map views.

Note: It is recommended to use ArcMap functionality to generate the Legend image file.

Note: A static legend can be provided for every supported language. If you want to support several languages, use the translations function of the Extras Menu and provide a path for every legend image per language. E.g. “mapview1” has the static legend image “pub/images/legend1_en.jpg”. For supporting the project in German language too, translate “mapview1” to “Kartenansicht1” and provide a German legend in “pub/images/legend1_de.jpg”.

Note: A static legend can also be integrated into the print layout using a logo-element with the name 'syn_legend'. (For more information on how to configure the print layout, please refer to Chapter Custom Function Fields, as well as in the WebOffice102_plot_author_UserManual.pdf). The print layout also responds to multi-lingual configured legends. Meaning that an existing static legend within a project is language-dependent fed into the print of WebOffice 10.2 SP3.
