WebOffice usermanagement > UserManagement Admin Web > Print, Report and Export Templates

Create a new Print, Report or Export Template or modify an existing one. Use this function if you want to define Restrictions for Print, Report and Export.

First a name and the type of template has to be chosen.

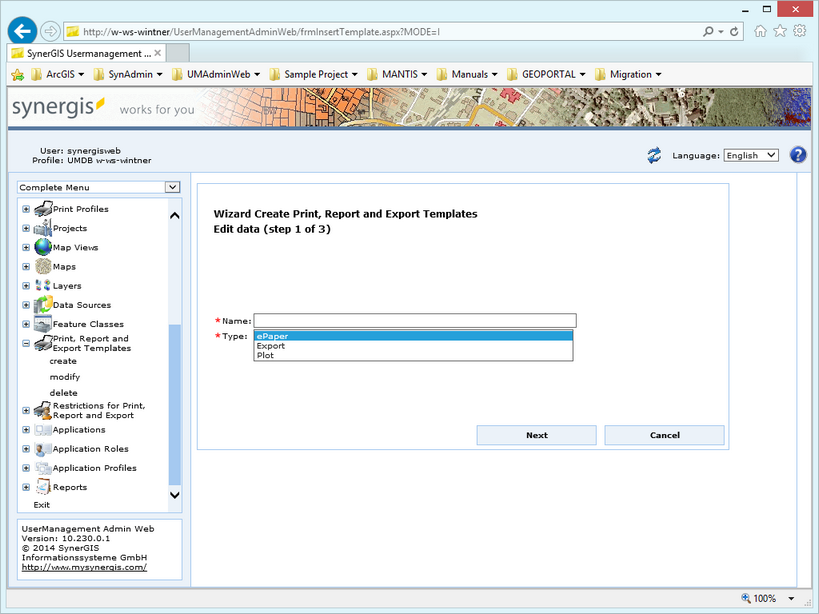

Create print, report and export templates - step 1

Property

Description

Name

Specify a name for the template

Note: This field is mandatory.

Note: The name of the template in WebOffice usermanagement has to be the same (without file extension) as the templates/configurations residing in the following directories:

- Plot: <ArcGIS Server location>\directories\WebOfficePlotTemplates

- ePaper: <ArcGIS Server location>\directories\WebOfficeePaperTemplates

- Extract: <ArcGIS Server location>\directories\WebOfficeExport\Configuration

Note: If there do not exist templates in the directories mentioned above, it is necessary to create them first

•	See plot author User Manual for details about plot templates

•	See ePaper author User Manual for details about ePaper templates

•	See extract server User Manual for details about extract configurations

Type

Select the type of template you want to create in UserManagement Admin Web

•

ePaper

•

Export

•

Plot

Note: This field is mandatory.

Create print, report, export templates properties

The second step offers the option to choose a print, export, or ePaper map service. It is optional and in the case of having none selected the template will work with any map service.

Note: It is recommended not to select any map service.

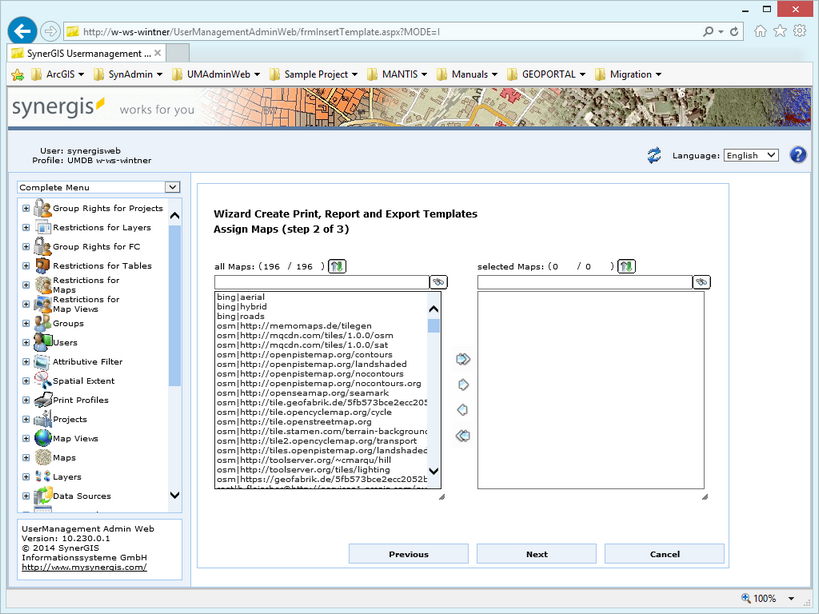

Create print, report and export templates - step 2

Finally, a summary provides an overview of the created template for WebOffice usermanagement.

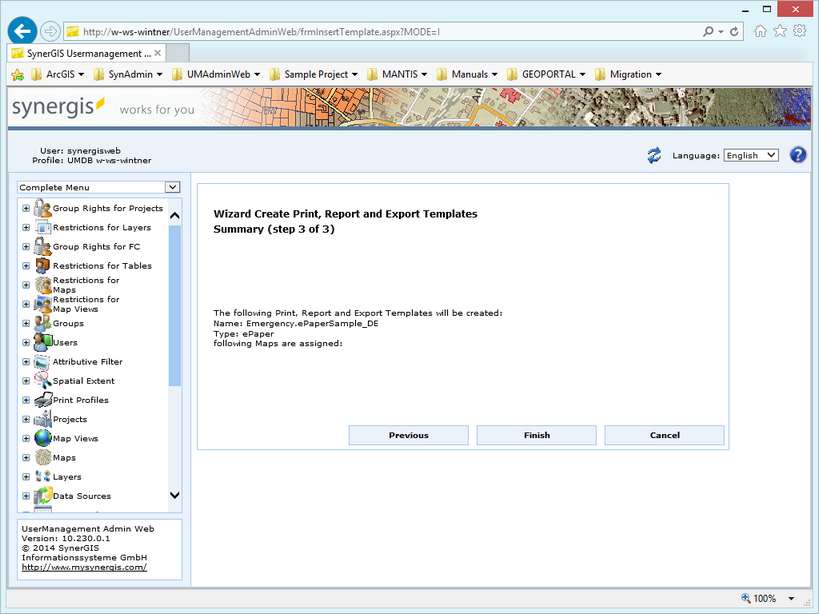

Create print, report and export templates - step 3

Note: See chapter Restrictions for Print, Report and Export for details about restricting access for specific templates/configurations.
