Troubles with SOE registration

Previous pageReturn to chapter overviewNext page

If you get troubles when installing the ArcGIS for Server Object Extension for WebOffice (SOE) please try the following workaround:



Call the ArcGIS 10.2 for Server Administrator Directory http://<server name>[:<port>]/arcgis//admin and log in with your primary site administrator name and password.
ArcGIS 10.2 for Server Administrator Directory

ArcGIS 10.2 for Server Administrator Directory



Copy the ID of the uploaded syn_soe_ao_gateway.soe by navigating to uploads.
Copy the ID of the SOE

Copy the ID of the SOE

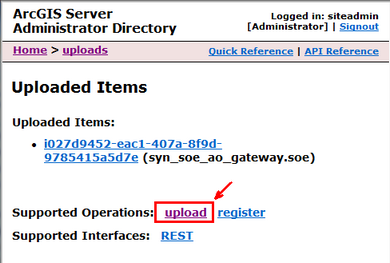

If the uploaded item does not exist, upload the syn_soe_ao_gateway.soe by using the upload option. After having uploaded succesfully the SOE copy the generated ID.
Upload the SOE

Upload the SOE

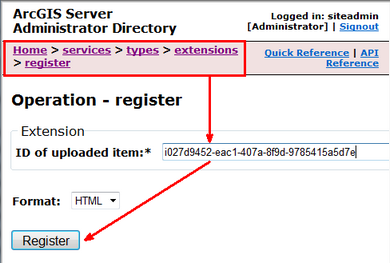

Register the SOE by navigating to services/types/extensions/register. Paste the ID of the SOE into the empty field and register the SOE with the Register button.
Register the SOE

Register the SOE

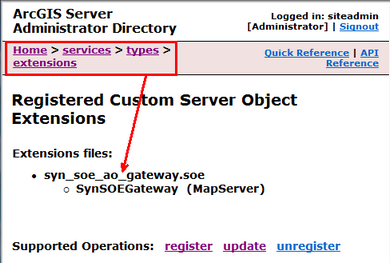

Check a successful registration of the SOE by navigating to services/types/extensions.
Check succesfull registration

Check succesfull registration
