Buffer

In order to use the Buffer in the WebOffice map widget testcontainer just activate the function in Tools.

Input parameter	Description
Intersect within area / full inside are	Intersect within area: the buffered features can partially be inside the buffer zone. Full inside area: the buffered features must completely be inside the buffer zone.
Layer ID	External layer ID of the WebOffice 10.2 SP3 query layer. Note: The layer must be identifyable/selectable.
Return Key	Specifies the field to be returned in the response. Note: It is possible to select more return keys by using the Ctrl key on the keyboard.
Default Buffer Distance	Defines the buffer distance in the unit of the project (default meter).
Callback	Specifies a JavaScript callback function.

Input parameter - Buffer in WebOffice map widget testcontainer

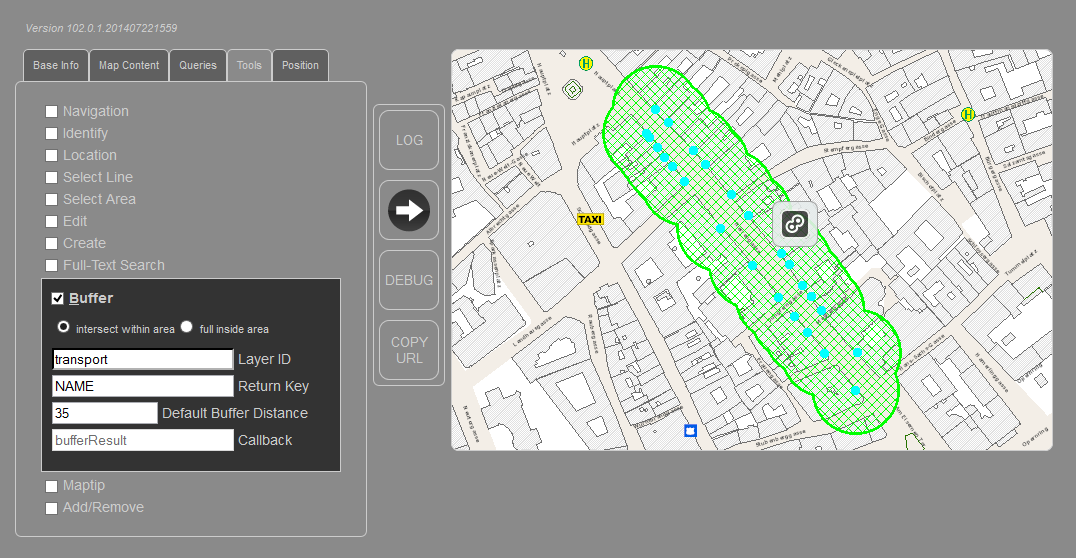

Before using the buffer tool in the WebOffice map widget, you have to pre-select any feature with any other tool (Queries, Identify, Select Area, Select Line, Add Remove).

Note: Both, features from the same and features form another layer can be buffered.

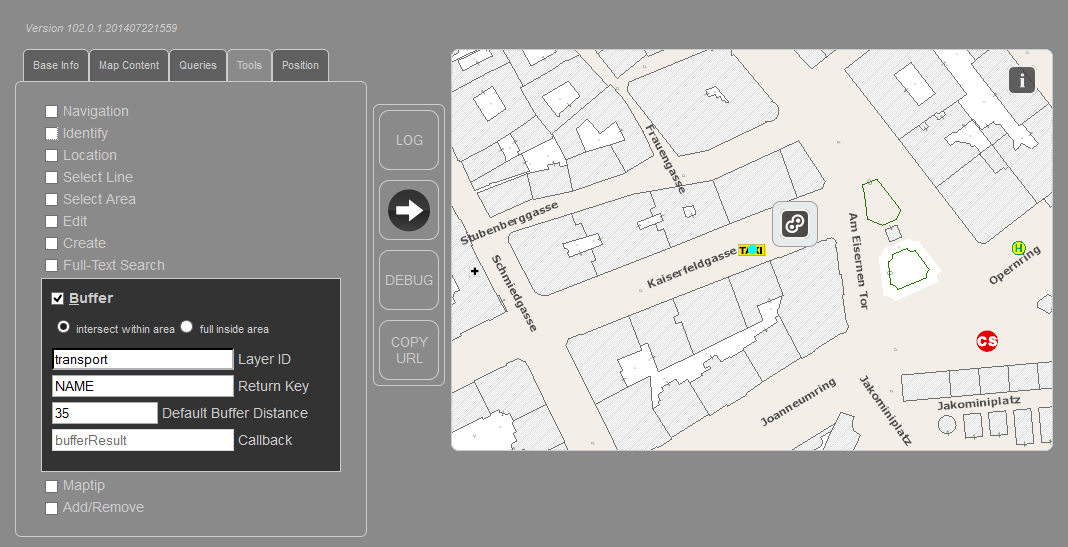

WebOffice map widget testcontainer - Buffer
