WebOffice - xPlanning Information |

|
WebOffice - xPlanning Information |
|
Note: The WebOffice - xPlanning Information is only available for the WebOffice core client.
If you want to use the xPlanning information module in WebOffice, you need to consider the following points:
| • | Every feature in you geodatabase has the attribute GMLID (ID of the feature), PLANID (ID of plan that is linked to the feature) and FEATURETYPE (object type) |
| • | For every plan there exists an XML file with the attribute information of all features |
| • | The name of the XML file has to be: [PLANID].xml |
| • | By using the field PlanId and the name of the XML file, the appropriate XML file can be found |
| • | The XML file follows the structure described below |
XML structure
<Feature>
<PlanName>
<Plantype>
<Feature>
<OID>
<GMLID> » reference to the feature in the feature class
<PlanId> » together with the GMLID the feature in the feature class can be identified
<SimpleClassData>
This section contains data that is distinguished by various display types
They can be nested, the terminal point is always a name/value pair
<SimpleData> » with name/value; common attribute in a textbox style
<ArrayData> » may contain several data types itself; content is to be indented
<ExtraSimpleClassData> » may contain several data types itself, content is to be indented
<EnumLookupData> » value list; important for editing; contains name/value
<CodelistLookupData> » treated like <EnumLookupData>; contains name/value
<FakeClassData> » an "artificial" indention; may contain several data types itself
<SimpleDataBoolean> » checkbox, contains name/value
The XML files have to be accessible via a virtual directory in IIS

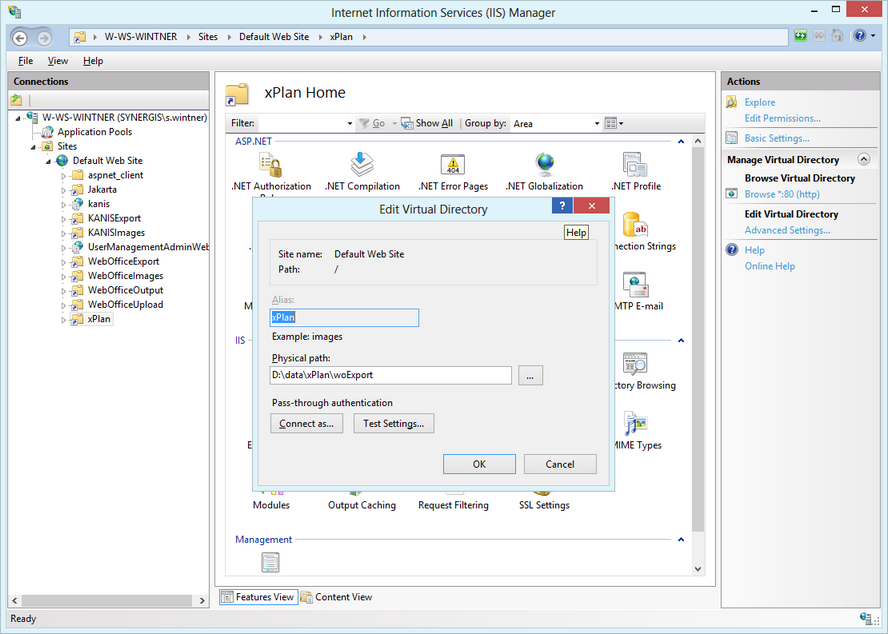

Example of a virtual directory containing the XML files
In WebOffice author you need to configure
| • | A query with a search result view for the respective layer that contains the search result fields GMLID, PLANID and FEATURETYPE |

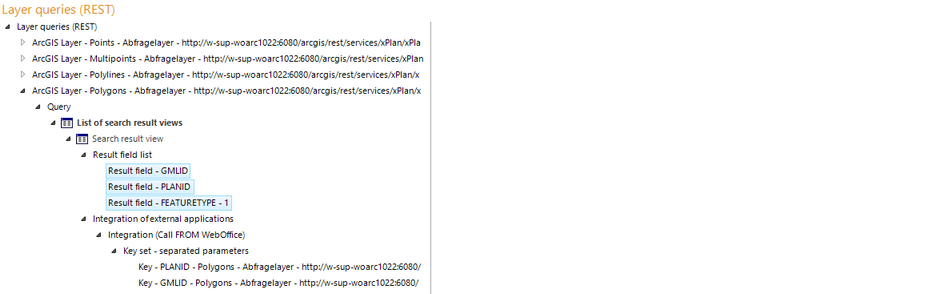

Required result fields for xPlanning Information
| • | An Integration (Call FROM WebOffice) with a configured Base URL that points to |
| o | pub/custom_pages/xPlanung.jsp?path=http://<server name>/<virtual directory of XML files> |

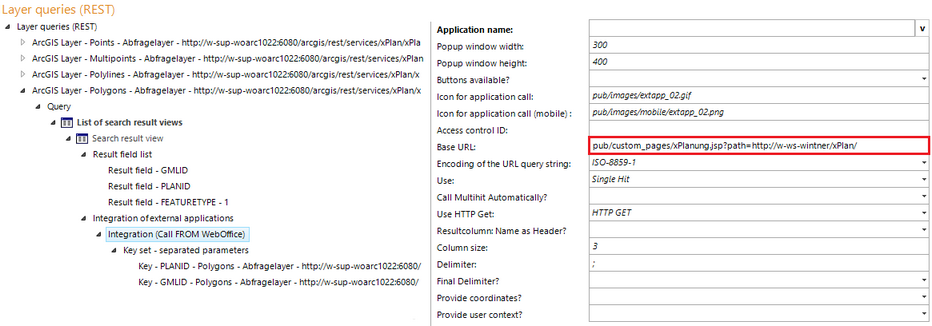

Required integration of external application for xPlanning Information
| • | A Key set of separated parameters with |
| o | PLANID using the HTTP Parameter name PlanId |

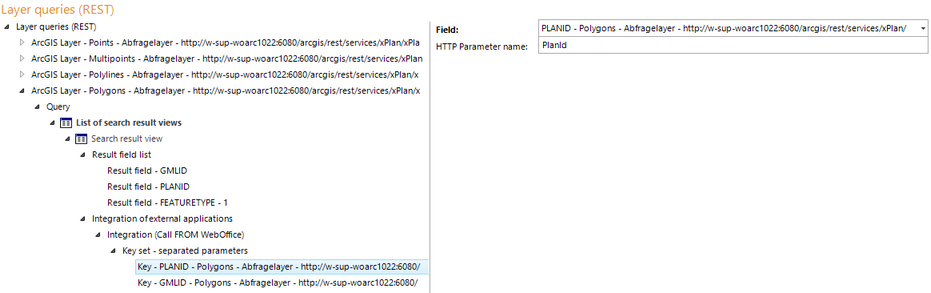

Required parameter PLANID for xPlanning Information
| o | GMLID using the HTTP Parameter name GmlId |

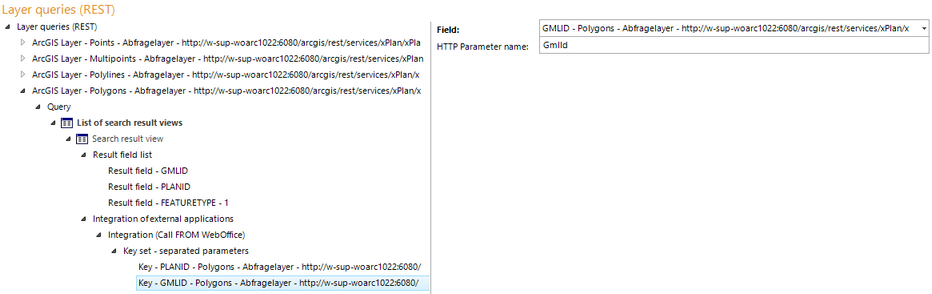

Required parameter GMLID for xPlanning Information
Open the WebOffice core client and identify the feature to access the external application.

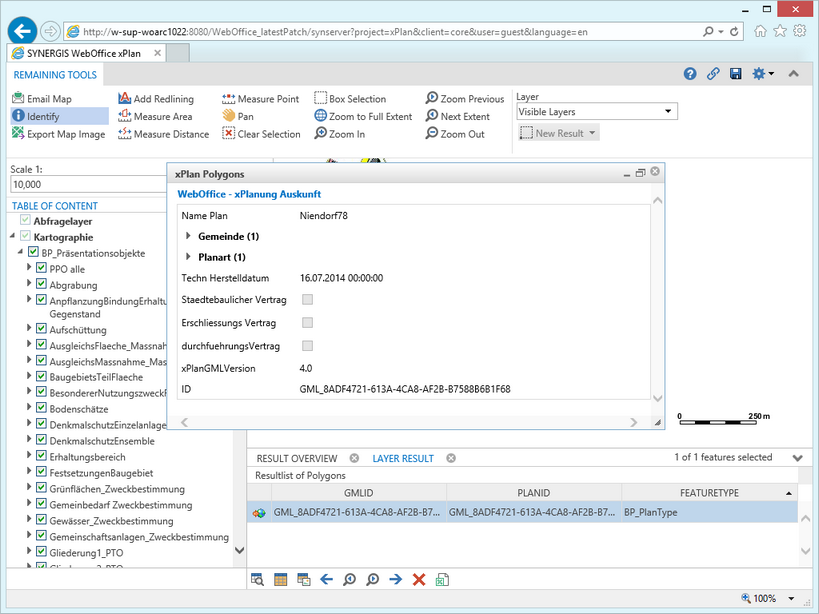

Accessing xPlanning Information in the WebOffice core client
