Layout customizations by parameters |

|
Layout customizations by parameters |
|
The following example shows how to change the background color of the main toolbar. Please consider the steps in the example to change the other attributes from the table below.
| • | Open synergis_weboffice.xml, search for @syn_toolbar and copy the complete line into synergis_weboffice_user.xml. |
<record jsxid="@syn_toolbar" type="jsxstyleoverride" jsxtext="border-bottom:1px solid #A5C9F0;border-top:1px solid #A5C9F0;padding:3 0 0 0;background-color:#EBF2F9;"/>

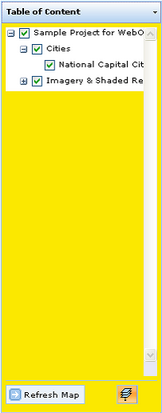

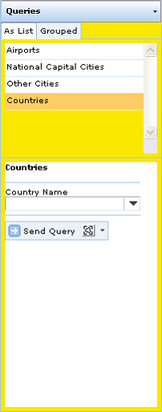

| • | The setting for the background color is hold by the background-color parameter. Change this value from #EBF2F9 to #FBE800 to get a yellow brackground color: |
<record jsxid="@syn_toolbar" type="jsxstyleoverride" jsxtext="border-bottom:1px solid #A5C9F0;border-top:1px solid #A5C9F0;padding:3 0 0 0;background-color:#FBE800;"/>
Have a look to the following list of the most important customization parameters:
Parameter |
Description |
||||

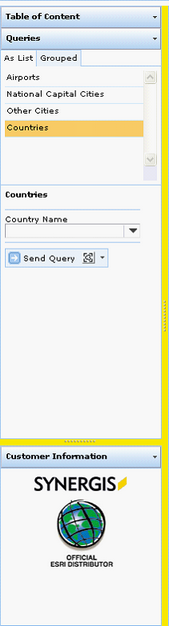

@syn_toolbar |
|
||||
@syn_idlestack |
|
||||
@syn_activestack |
Active stack on mouse over
|
||||

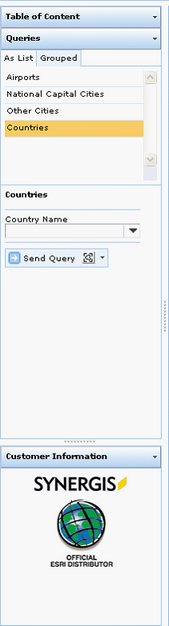

@syn_custominfo_blk |
Stack for the customer information
|
||||
@syn_menucolor |
|
||||
@syn_taskbar_col |
The main status bar
|
||||
@syn_elementbg |
Background color of the stacks
|
||||

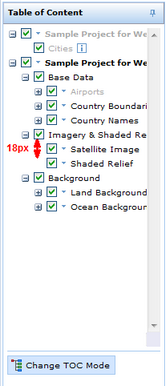

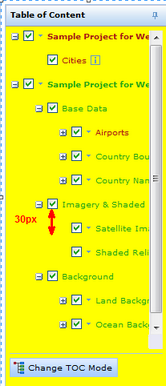

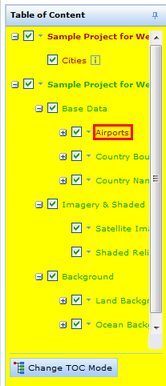

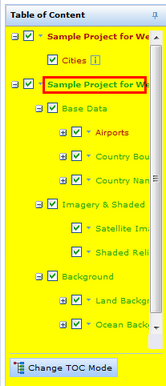

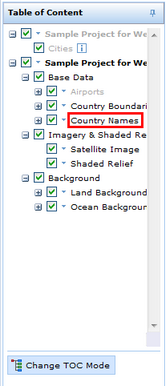

toc_rowheight |
Height of TOC row in pixels
|
||||

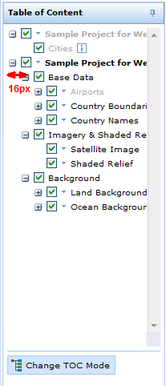

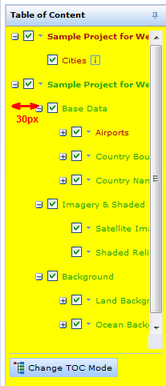

toc_indent |
Space per TOC level in pixels
|
||||

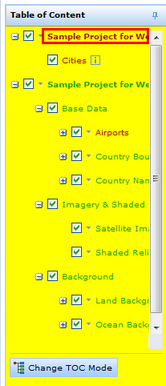

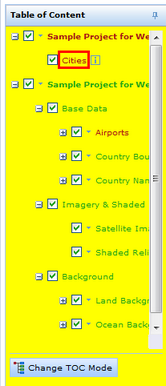

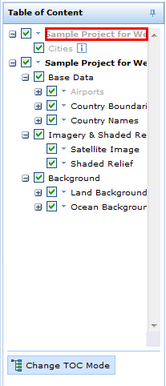

toc_s_i |
Map service in TOC (in scale)
|
||||

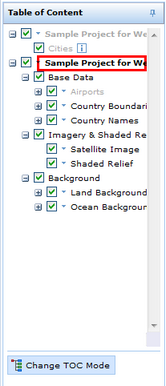

toc_s_o |
Map service in TOC (out of scale)
|
||||

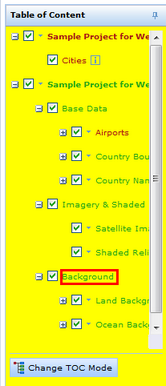

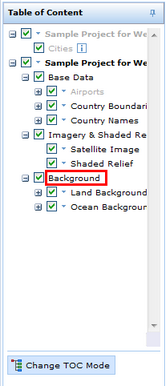

toc_g_i |
Layer group in TOC (in scale)
|
||||
toc_g_o |
Layer group in TOC (out of scale)
|
||||

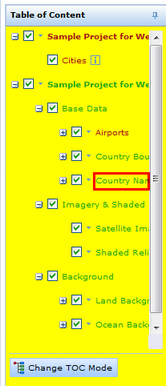

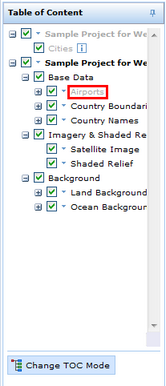

toc_l_i |
Layer in TOC (in scale)
|
||||

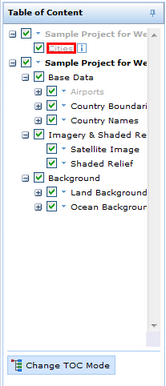

toc_l_o |
Layer in TOC (out of scale)
|
||||
@syn_splittercol |
Color of the splitter between the stacks
|
||||
@syn_scalebox |
Background color of the scale box input field
|
||||
@syn_ftsinput |
Style of the FTS search field
|
||||
@syn_button |
Background color of buttons
|
||||
@syn_panecolor |
Background of panes
|
||||
@syn_menus |
Background of menus
|
||||
@syn_maptip |
Maptip window (border and background)
|
||||
Maptip header and footer image
|
|||||
Background of even attributes and values (in Maptip)
|
|||||
Background of odd attributes and values (in Maptip)
|
|||||
@syn_maptipinfo |
Font and color of info text (in Maptip)
|
||||
@syn_maptiptitle |
Font and color of title text (in Maptip)
|
||||
Font and color of attribute text (in Maptip)
|
|||||
Font and color of value text (in Maptip)
|
|||||

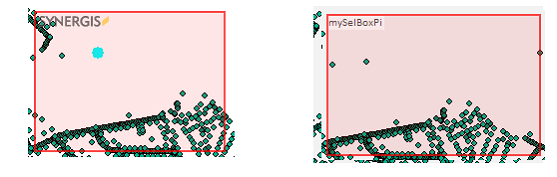

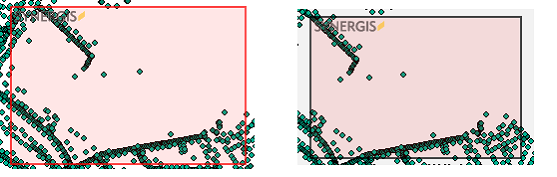

@syn_zoombox_brd |
Frame of the zoom box
|
||||
@syn_zoombox_col |
Color of the zoom box
|
||||

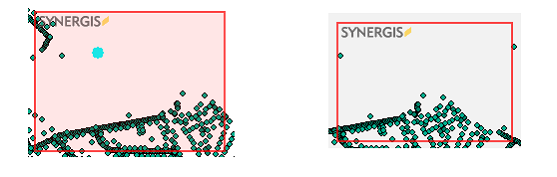

@zoombox_mask |
Opacity of the zoom box background
|
||||

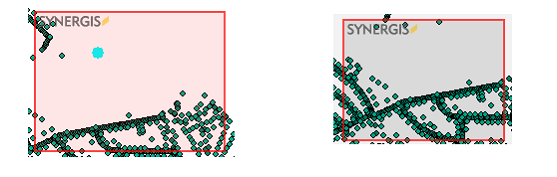

@syn_zoombox_bg |
Background of the zoom box (e.g. a logo can be embedded)
|
||||

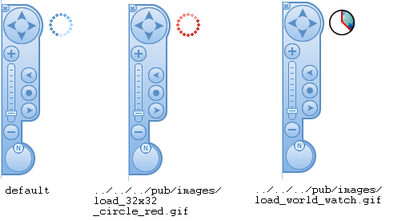

mapload.image |
Path to the animated mapload image. Two optional mapload images are included in C:\Tomcat\webapps\<WebOffice application>\pub\images:
|
||||
markup.vertexsize markup.vertexcolor |
Size and color of the vertices of a redlining object (vertexsize "0" means, that no vertices are shown).
|
