The Magnifier tool provides an overlay of the map in a different scale.



icon_comment

In the course of enlargement, the existing map image is not enlarged, but a scale dependent magnification/display takes place. This can also change the scale dependent symbolisation/cartography in the magnifying glass area.

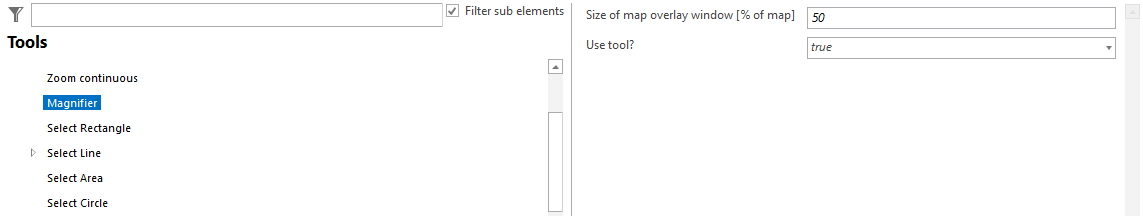

Magnifier tool configuration

Magnifier tool configuration



Property

Description

Size of map overlay window [% of map]

Size of overlay window [% of main map display].

Use tool?

Specifies whether the tool should be used or not.

Magnifier tool properties



Right-click to add a list of scale factors, which can then be selected in WebOffice core Client.

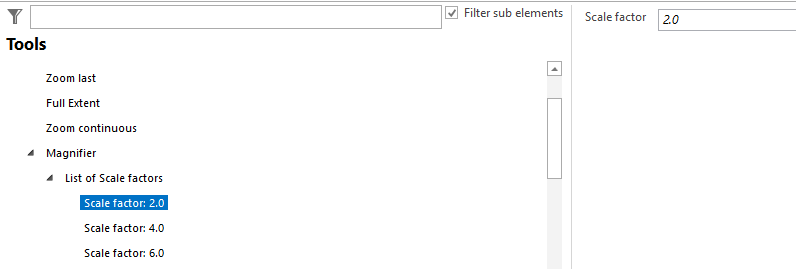

Configuration Magnifier - Scale factor

Configuration Magnifier - Scale factor



Property

Description

Scale factor

Specifies the scale factor to be used for the magnifier. A value of 5 will display the magnified map in a 5 times larger scale than the main map.

Magnifier tool properties



icon_cross-reference

See chapter Magnifier for using the magnifier in WebOffice core client.
