The RSS feed enables the WebOffice flex client to include RSS information directly below the toolbar of the client. The user can define a text color and the background color of the RSS texts. Additionally the usage of hyperlinks can be enabled or disabled.



icon_comment

This tool is only available in the WebOffice flex client.

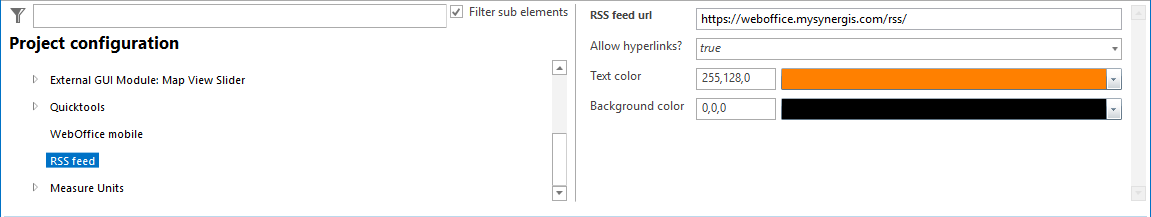

Configuration - RSS feed

Configuration - RSS feed



Property

Description

RSS feed url

Declaration of the RSS feed URL

Allow hyperlinks?

Specifies whether hyperlinks in the RSS messages shall be identifiable for display via hyperlink (true) or not (false).

Text color

Color of the RSS text in RGB format

Background color

Background color of the RSS text in RGB format

Properties - RSS feed





icon_warning

CAUTION!

Please note that rss2json, the API required to use this service, now requires a valid key. This key can be purchased free of charge by registering at https://rss2json.com/plans under certain restrictions. VertiGIS provides such a free key with the delivery of WebOffice 10.9 SP1, which however is not intended to be used productively by customers. This key can only be used for principle tests. If RSS feeds are to be available in the WebOffice flex client, a separate account must be created at https://rss2json.com/plans accordingly. The integration of this account is described step by step in the following section:

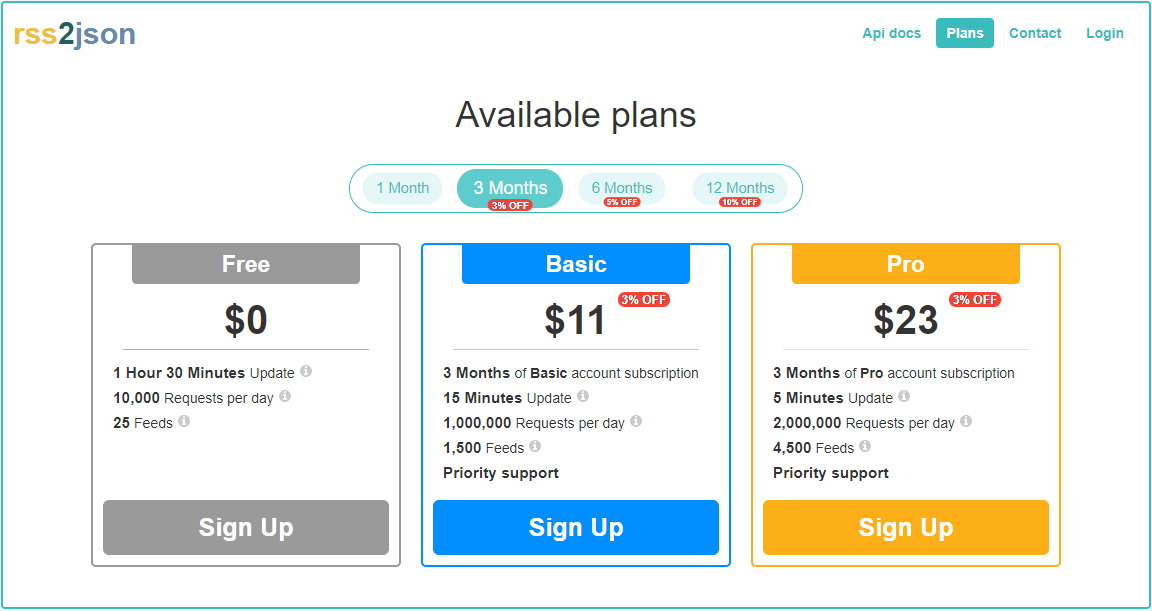

Step one:

At https://rss2json.com/plans you have to create an account with the desired restrictions.



rss2json-account creation

rss2json-account creation

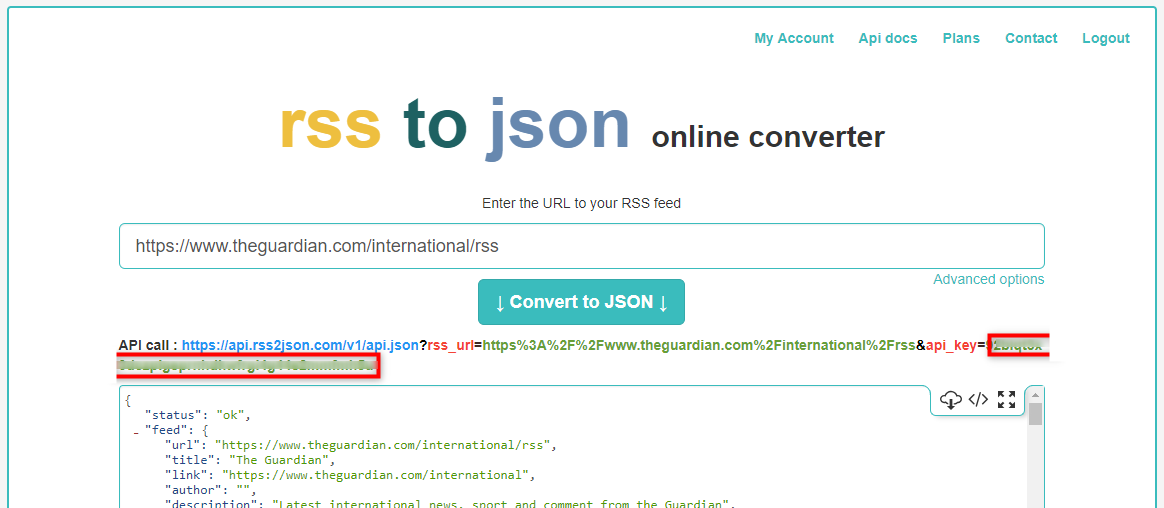

Step two:

Log in with the newly created account and copy the key.

Copy the key

Copy the key

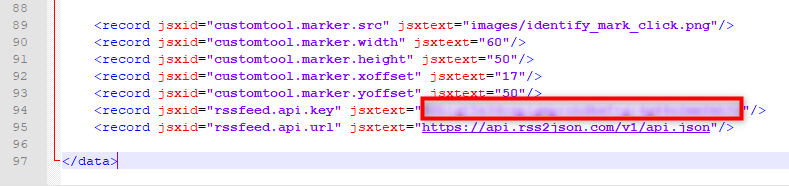

Step three:

Use the text editor (e.g. Notepad ++) to replace the existing key in the properties_weboffice.xml file with your own key and save it. This file can be found under : <Tomcat_installation_folder>\webapps\<WebOffice_application>\client_mobile\jss\properties_weboffice.xml



Replace the key in the "synergis_weboffice.xml" file

Replace the key in the "synergis_weboffice.xml" file



icon_cross-reference

More information about the representation of the RSS feed within the WebOffice flex client you can find in the chapter Other Map Elements.
