Clustering
Clustering is a way to symbolize point data in a generalized way without too much loss of information. Using Clustering you are able to display a symbolization of point features through all scale levels. Clustering is perfect to show a frequency distribution of point features. Gaining information about the features using the MapTip functionality is useful down to a much smaller scale level.

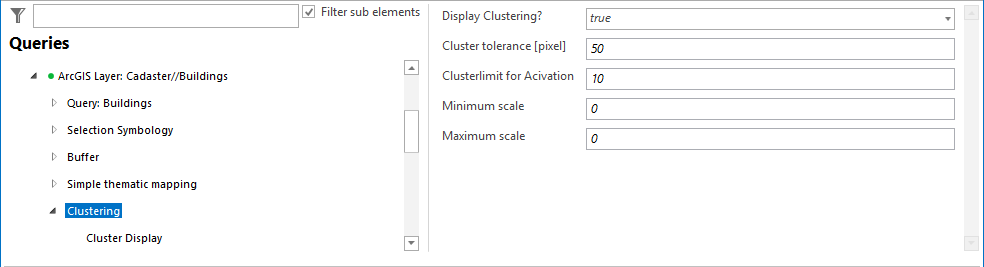

Clustering configuration - WebOffice Category
Property |
Description |
|---|---|
Display Clustering? |
Specifies if the layer is displayed with point-clustering Yes or not No |
Cluster tolerance |
Cluster tolerance in pixel specifies if a point with a certain pixel distance will get part of a cluster or not. This way it is possible to control the count of cluster symbols displayed on the screen. |
Clusterlimit for Activation |
Limit to where a cluster can get activated and queried |
Minimum scale |
Minimum scale up to where features are clustered and drawn as one cluster object on the map. Default value 0 means no limitation. |
Maximum scale |
Maximum scale to where features are clustered and drawn as one cluster object on the map. Default value 0 means no limitation. |
Clustering configuration
|
•Clustering works for point layers only. •We recommend to configure Clustering for one layer only. •Clustering is not convenient for feature classes with more than 10,000 features. If necessary, this value must also be readjusted on the map service in ArcGIS Server Manager. •Clustering only works, if the fields OBJECTID and SHAPE are activated in the feature class. •Data restrictions (filters, time and range sliders) do not apply to clustering! |
There are several options to exactly define the look of the defined Clusters in the Cluster Display options.

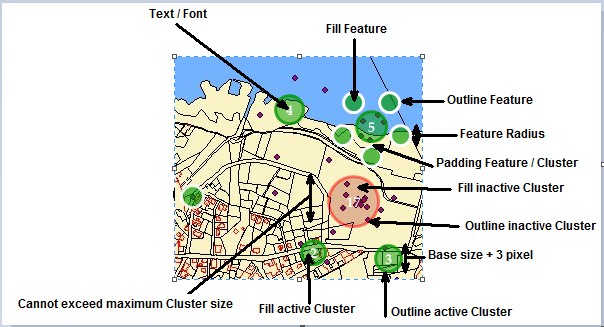

Clusters

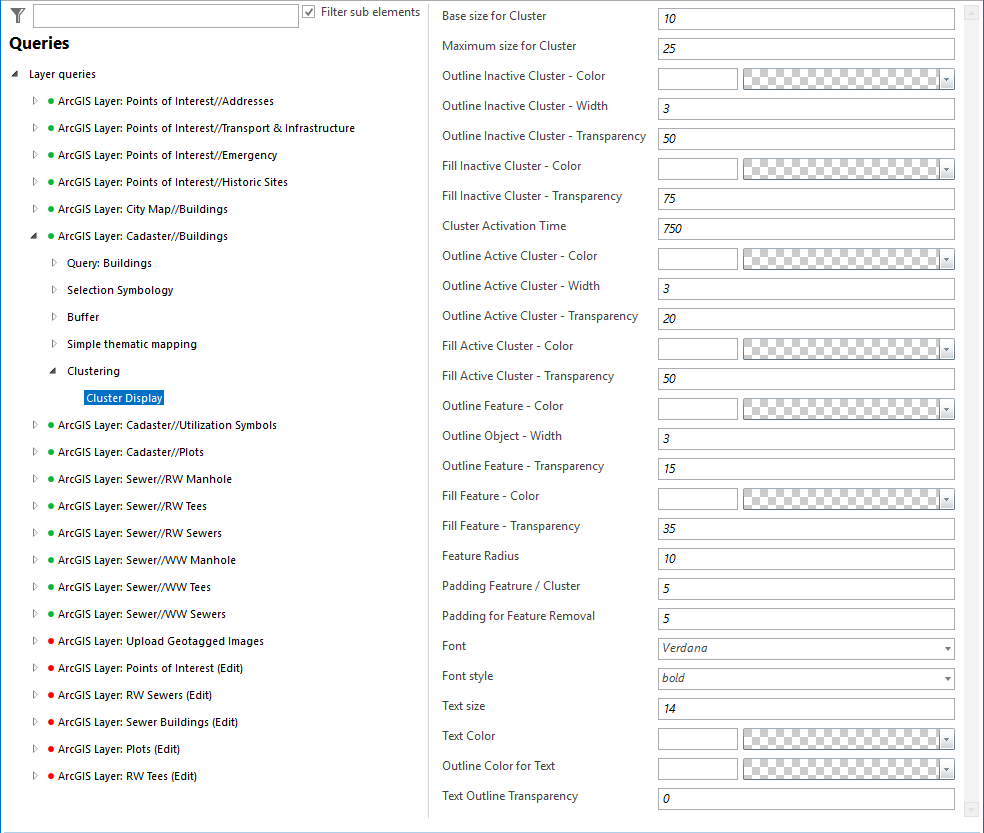

Clustering configuration
Property |
Description |
|---|---|
Base size for Cluster |
Minimal radius for a displayed cluster circle in pixels. |
Maximum size for Cluster |
Maximal radius for a displayed cluster circle in pixel. |
Outline Inactive Cluster - Color |
Outline color for inactive clusters. |
Outline Inactive Cluster - Width |
Outline width for inactive clusters in pixel. |
Outline Inactive Cluster - Transparency |
Outline transparency for inactive clusters [%]. |
Fill Inactive Cluster - Color |
Fill color for inactive clusters. |
Fill Inactive Cluster - Transparency |
Fill transparency for inactive clusters [%]. |
Cluster Activation Time |
Duration of animation at cluster activation in milliseconds. |
Outline Active Cluster - Color |
Outline color for active clusters. |
Outline Active Cluster - Width |
Outline width for active clusters in pixel. |
Outline Active Cluster - Transparency |
Outline transparency for active clusters [%]. |
Fill Active Cluster - Color |
Fill color for active clusters. |
Fill Active Cluster - Transparency |
Fill transparency for active clusters [%]. |
Outline Feature - Color |
Outline color for features. |
Outline Object - Width |
Outline width for features in pixel. |
Outline Feature - Transparency |
Outline transparency for features [%]. |
Fill Feature - Color |
Fill color for features. |
Fill Feature - Transparency |
Fill transparency for features [%]. |
Feature Radius |
Radius of a displayed feature circle in pixel. |
Padding Feature / Cluster |
Padding between feature and cluster when activated in pixel. |
Padding for Feature Removal |
Distance when an expanded cluster gets deactivated in pixel when moving the cursor out of the feature. |
Font |
Font for cluster text. |
Font Style |
Font style for cluster text. |
Text Size |
Default cluster text size (font size) in pixel. |
Text Color |
Text color for cluster text. |
Outline Color for Text |
Outline Color for cluster text. Empty value means no outline. |
Text Outline Transparency |
Transparency for text outline [%]. |
Clustering configuration
