Application with Static Hyperlink

Configures an application with a static link which can be integrated in WebOffice 10.9 SP1. It can be used for a link to a website related with the query topic, to execute a query with external call to WebOffice 10.9 SP1 or to zoom to a specific location in the map.

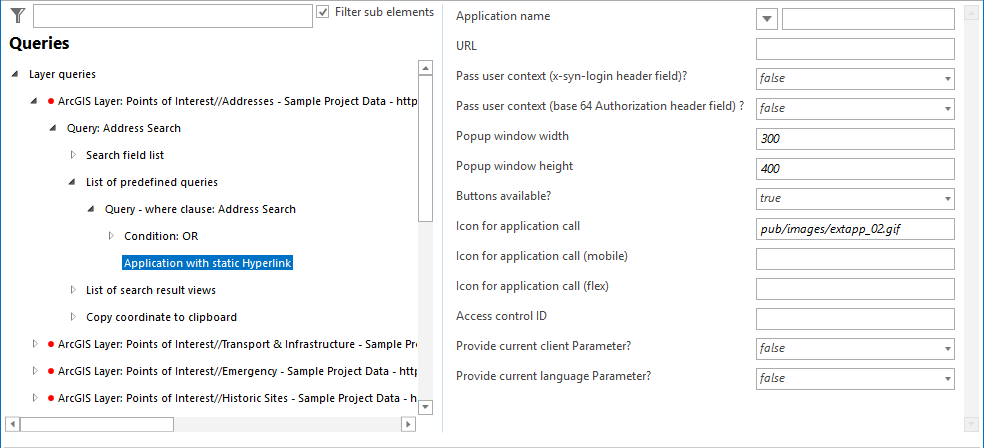

Application with static hyperlink configuration

Application with static hyperlink configuration



Property

Description

Application name

Name of external web application used for display in WebOffice 10.9 SP1 client (search result).

URL

Full URL pointing to the site to display

Pass user context (x-syn-login header field)?

Used for WebOffice usermanagement secured projects. Specifies if the user context of the user logged on to WebOffice 10.9 SP1 will get passed in the HTTP header.

icon_comment

If providing a user context to an external application the URL will be redirected. All paths used in the external Application have to be absolute!

Pass user context (base 64 Authorization header field)?

Specifies if the user context of the user logged on to WebOffice will get passed in the HTTP header Authorization, using base64 encoding, basic authentication.

Popup window width

If using popup windows for displaying external contents the size of the popup window can be configured.

Popup window height

If using popup windows for displaying external contents the size of the popup window can be configured.

Buttons available?

Property is not available for static hyperlinks.

Icon for application call

In WebOffice 10.9 SP1 folder pub/images 10 icons are available (extapp_01.gif, extapp_02.gif to extapp_10.gif). Icon size 16x16 pixels.

Icon for application call (mobile)

In WebOffice 10.9 SP1 folder pub/images/mobile 10 sample icons are available (extapp_01.png to extapp_10.png).

Icon for application call (flex)

In WebOffice 10.9 SP1 folder pub/images/flexjs sample icons are available

Access control ID

Access control ID needed for access control based on user management module. If an ID is configured here (e.g. LINK_ALKIS_COLORMAP) and WebOffice usermanagement module is used, the user role is checked whether it provides the necessary application right or not (according to the example the application right would be LINK_ALKIS_COLORMAP).

icon_comment

If the necessary application right is not available, the button/link for accessing the external application will not be available in the WebOffice search result page.

Provide current client Parameter?

Specifies if the client parameter is being added at the end of the URL. This is useful for sites which can change their styles accordingly with the value of the parameter.

Provide current language Parameter?

Specifies if the language parameter is being added at the end of the URL. This is useful for sites which can change their language accordingly with the value of the parameter.

Application with static hyperlink properties



by configuring a subelement you can define the display mode:

Display mode iFrame

Display mode Pop up
