The Initial Extent configuration specifies the initial map extent displayed by WebOffice 10.9 SP1 clients with start up.

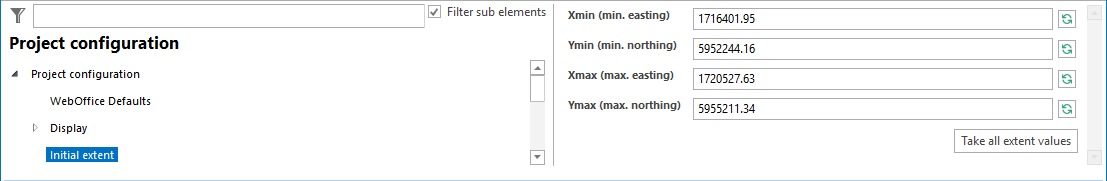

Initial extent configuration

Initial extent configuration



Property

Description

Xmin (min. easting)

Minimum in geographic units. Corresponds to left side of map view.

Ymin (min. northing)

Minimum in geographic units. Corresponds to bottom of map view.

Xmax (max. easting)

Maximum in geographic units. Corresponds to right side of map view.

Ymax (max. northing)

Maximum in geographic units. Corresponds to top of map view.

Initial extent properties



If you click the button to the right of the configuration values, WebOffice author standalone takes the respective value from the main map service. If the service is connected via ArcMap or ArcGIS Pro, the current value from the map extent is taken. If it is connected via the REST interface, the value is taken from the respective extent configured there.

Alternatively, by clicking on the Take all extent values button, the entire map extent of the ArcMap/ArcGIS Pro project or all configured values of the REST interface can be overtaken.
