Step 4: Geometry Service

In this step, a geometry service is added to the WebOffice 10.9 R3 project configuration. The geometry service is installed by default during the installation of ArcGIS Server in the directory Utilities. However, this service is initially stopped. You can either start this service directly on the ArcGIS Server or in the ArcCatalog. First select the server on which the geometry service is located and insert the missing part of the REST URL of the geometry map service. This is: Utilities/Geometry/GeometryServer. The default value of the geometry service is already entered.

icon_cross-reference

More information about the geometry service can be found in the ArcGIS Help.



woas_file_projectwizard3

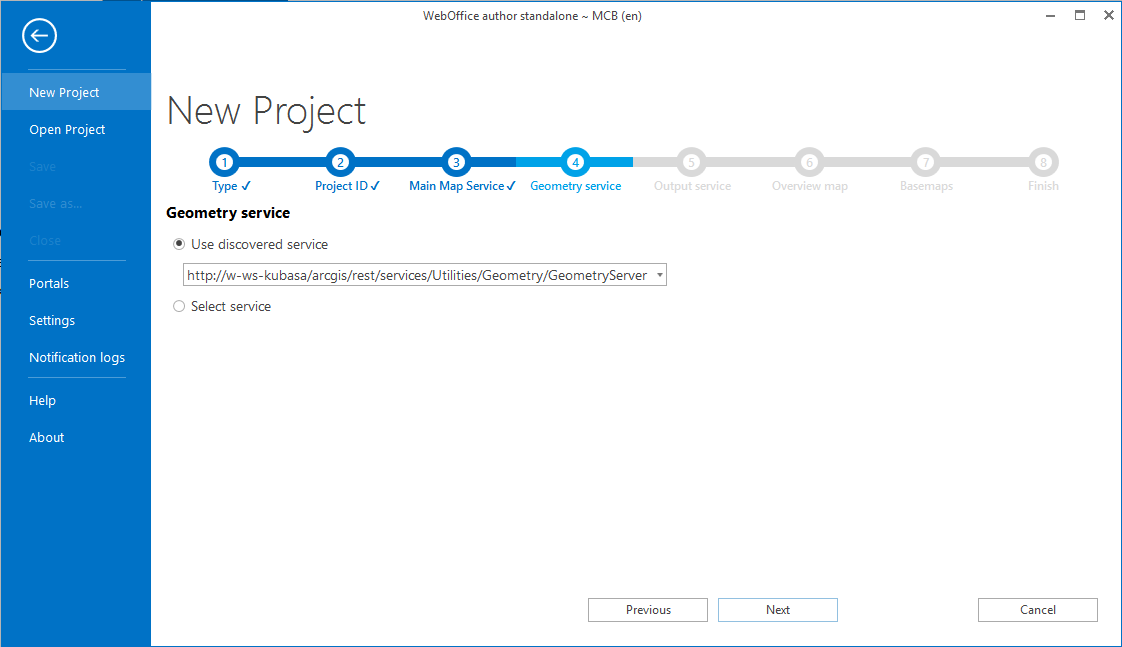

Create New Project: Geometry service - Use recognized geometry service


woas_file_projectwizard4

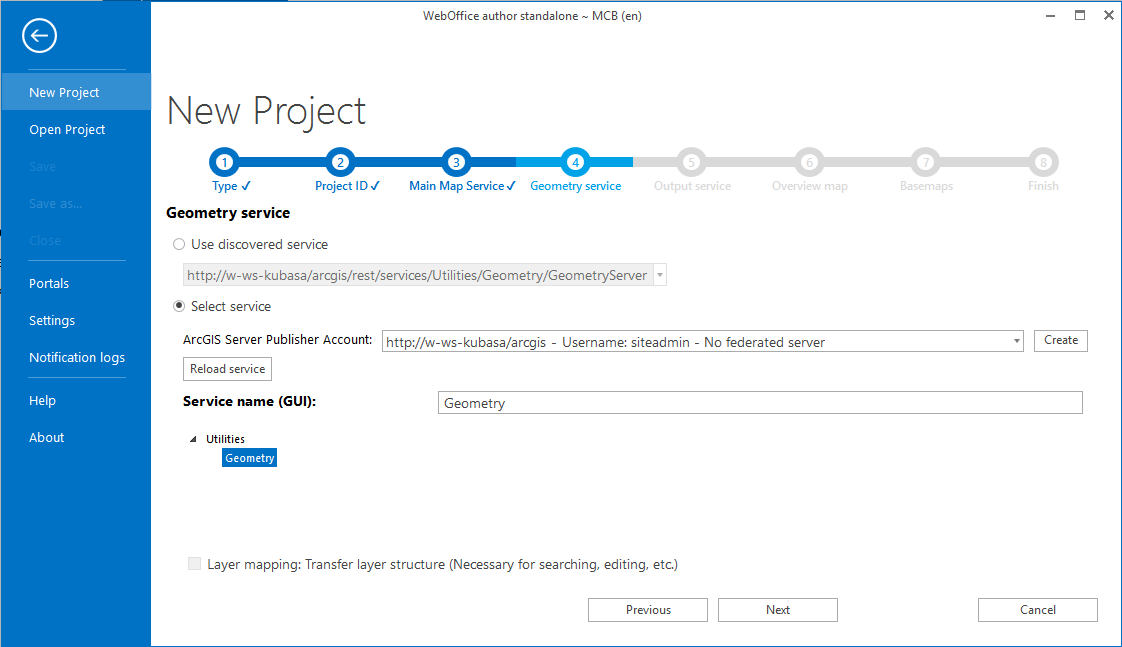

Create New Project: Geometry service - Select service



Click Next.
