Configure the function field Title if you want to display a map title on your print output.

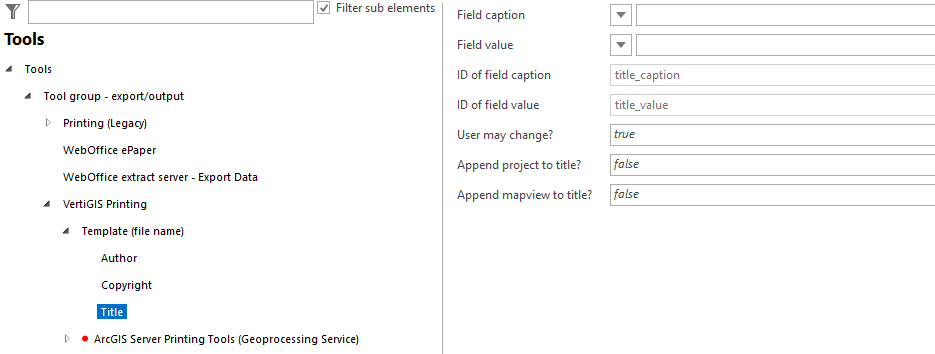

Configuration Title

Configuration Title



Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

•If User may change? is set to true you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. title 1|title 2. The first value will be the default value. If you want to provide several values but no default value, start your listing with a | symbol, e.g. |title 1|title 2.

•You can also use placeholders for the print title field value:

o<project> will be replaced with the name of the project

o<view> will add the currently active map view

ID of field caption

The ID for this predefined function field is always title_caption.

ID of field value

The ID for this predefined function field is always title_value.

User may change?

Specifies whether the user my change or set the value in the print tool form (true) or not (false).

Append project to title?

Specifies whether the name of the project shall be appended (separated by a dash) to the defined title.

icon_comment

The project name refers to the placeholder <project>.

Append mapview to title?

Specifies whether the name of the map view shall be appended (separated by a dash) to the defined title.

icon_comment

The map view refers to the placeholder <view>.

Print title properties



Make sure that your print template (.pagx file) contains the function fields title_caption and title_value. Only then, the configuration in WebOffice author standalone will have an impact.
