Legend (static image)

This legend consists of an image that is generated by weboffice and is placed in the printout at the spot indicated in the printing template (.pagx) using the placeholder element <syn_legend>.

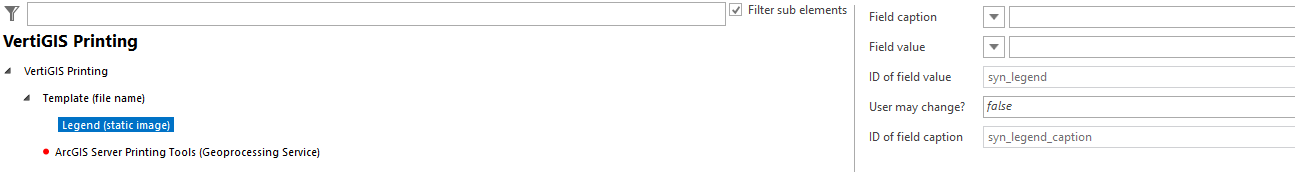

Configuration Legend (static picture)

Configuration Legend (static picture)





Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. creator 1|creator 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |creator 1|creator 2.

ID of field caption

The ID for this predefined function field is always syn_legend

ID of field value

The ID for this predefined function field is always syn_legend_caption

User may change?

Specifies whether the user my change or set the value in the print tool form (true) or not (false).

Legend (static image) properties
