Layers (with Templates)

<< Click to show table of contents >>

Using Layers (with Templates) it is possible to control the layers available as template layers for the Copy from template edit action.

•Currently the layer configured for templates has to be a map service.

•You can copy from template layers of the same geometric type like the edit layer only.

•The edit action Copy from template is only available for WebOffice core client.

Layers (with templates) configuration

Property	Description
Default layer	Specifies the default layer to be used in the Copy from template edit action.

Layers (with templates) properties

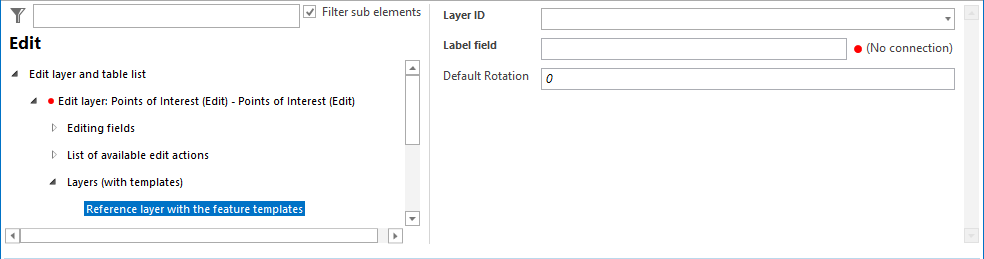

Reference layer with the feature templates configuration

Property

Description

Layer ID

Layer ID of the template layer in the used map service.

Label field

Specify the attribute field of the template layer that will be used to display the available feature templates in the client.

Feature templates in this context are simply all existing features of this layer. It is recommended to create a specific template layer/service that will not be used for map display.

Default Rotation

Specifies the default rotation (units: degree; values between 0° and 359°; for example 45.5°) for the new features which are to be created (based on the template).

If you configure a rotation unlike 0, this rotation will be used instead of the rotation set by the user.

Reference layer with the feature templates properties

•See chapter List of Available Edit Actions for details how to configure the edit action copy from templates.

•See chapter Edit Layers for details about the configuration of edit layers.

•See chapter Editing for details about editing in the WebOffice core client.
