Connection to ArcGIS Pro

icon_comment

WebOffice 10.9 SP1 supports version ArcGIS Pro 2.8.

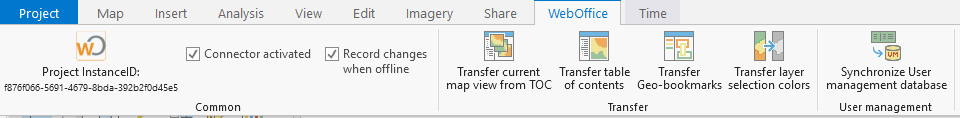

The following buttons are available in the WebOffice author standalone toolbar:



woas_connection_arcgispro_toolbar

Toolbar des WebOffice author standalone in ArcGIS Pro



Icon

Menu Item

Description

woas_connection_arcgispro_toolbar1

Project InstanceID

Displays the InstanceID of the opened ArcGIS Pro project. This ID must be selected to manually connect the project to the WebOffice author standalone.

woas_connection_arcgispro_toolbar2

Connector activated

Displays the InstanceID of the opened ArcGIS Pro project. This ID must be selected to manually connect the project to the WebOffice author standalone.

woas_connection_arcgispro_toolbar9

Automatic synchronization

By activating this checkbox, the changes in ArcGIS Pro will be synchronized in real-time and automatically with the WebOffice author standalone.

icon_comment

Activating this function may lead to a worse performance when working with ArcGIS Pro. Alternatively, synchronization can be triggered manually (see next point).

woas_connection_arcgispro_toolbar10

Synchronize

This tool synchronizes the changes made in ArcGIS Pro with the WebOffice author standalone.

icon_comment

This tool is only available if the Automatic synchronization option is not enabled. Likewise, an active connection to the WebOffice author standalone is required to use the function.

woas_connection_arcgispro_toolbar4

Transfer current map view from TOC

This button retrieves structure and visibility settings from the currently active ArcGIS Pro map and copies it to a selected map view in the currently opened WebOffice 10.9 SP1 project configuration.

woas_connection_arcgispro_toolbar5

Get table of contents

This button retrieves structure and visibility settings from the currently active ArcGIS Pro map and copies it to the table of content of map collection (use entry point WebOffice -> TOC of map collection) in the currently opened WebOffice 10.9 SP1 project configuration.

woas_connection_arcgispro_toolbar6

Get Geo-bookmarks from ArcMap

This button retrieves existing bookmarks of the ArcGIS Pro map and copies them to the currently opened WebOffice 10.9 SP1 project configuration.

woas_connection_arcgispro_toolbar7

Take Layer Selection Colors

Use this button to transfer customized layer selection colors defined in the ArcGIS Pro map automatically to the according layer configuration of your WebOffice 10.9 SP1 project configuration.

woas_connection_arcgispro_toolbar8

Synchronize user management database for current project

This button synchronizes the user management database configured in the WebOffice author Basic settings. Use this button whenever you did change the ArcGIS Pro map structure etc.

icon_cross-reference

If any problems occur during synchronization, consider chapter Base Data Storage Logging for details.



Sort LayerIDs automatically?

Allows WebOffice author standalone to automatically sort the LayerIDs in the ArcGIS Pro map. Ascending sorted LayerIDs in the published service are a prerequisite for the correct print functionality in WebOffice.

icon_comment

In case of problems with the automatic sorting of LayerIDs, the file %APPDATA%\VertiGIS\WebOfficeAuthorStandalone\Configuration.json with a text editor to edit UTF8 text files (e.g. UltraEdit32, PSPad or Notepad++) and set the flag IsArcMapProLogLayerIds to true to log the ServiceLayerIDs. This happens at

%APPDATA%\VertiGIS\WebOfficeAuthorStandalone\logs\MapCOMExtAuthor_debug.txt
