In this step the required files will be copied and than the map services of the Sample Project will be published to the server.





Copy the directory WebOffice10.9R4-DVD\SampleProject\WebOffice directories Add-On\ServiceDocuments\SampleProject from the DVD to your ServiceDocuments directory (e.g. <ArcGIS Server location>\directories\ServiceDocuments).



In a next step unzip Data.zip file.

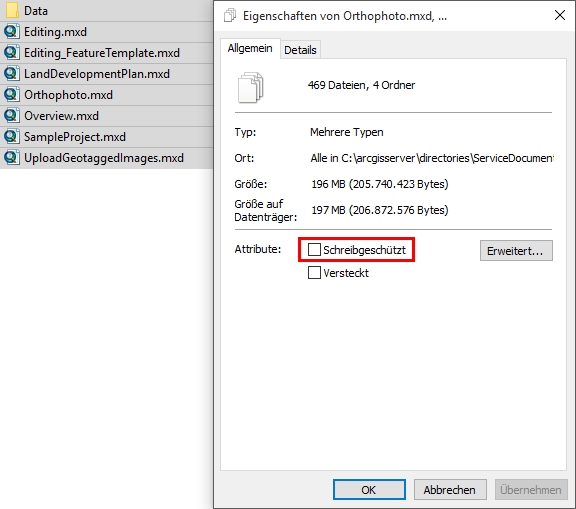

Afterward you can delete the zip-file. Check  if the copied MXDs are set to read-only. In case the files are set to read-only, deactivate the check box.

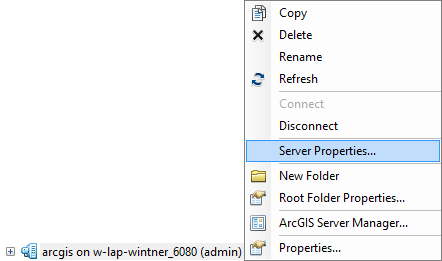

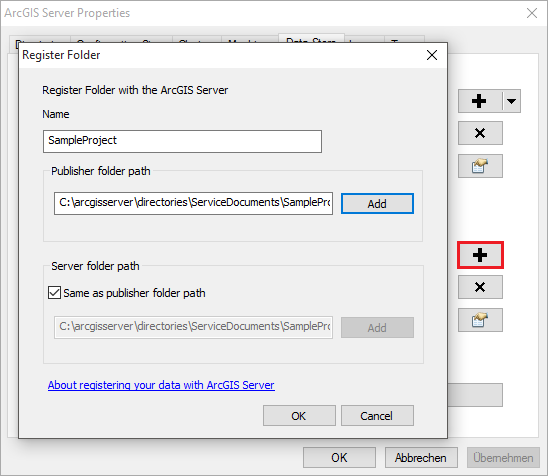

First you need to register the data with ArcGIS Server. Therefore, right-click your ArcGIS Server connection and open the Server Properties. Go to tab Data Store and add the folder Data to the registered folders.







Differences of the publishing process regarding dynamic and cached map services will be shown using the MXDs SampleProject.mxd (dynamic) and LandDevelopmentPlan.mxd (cached). Publish the other map documents as described below.



•Dynamic Services:
SampleProject.mxd
Overview.mxd
Editing.mxd
Editing_FeatureTemplate.mxd
UploadGeotaggedImages.mxd


•Cached Services:
LandDevelopmentPlan.mxd
Orthophoto.mxd



Publish Dynamic Map Services



Start with the publishing of all dynamic services by opening the MXD SampleProject.mxd from <ArcGIS Server location>\directories\ServiceDocuments.

Choose File > Share As > Service ...





Pick the first option Publish a service in the window Share as Service.

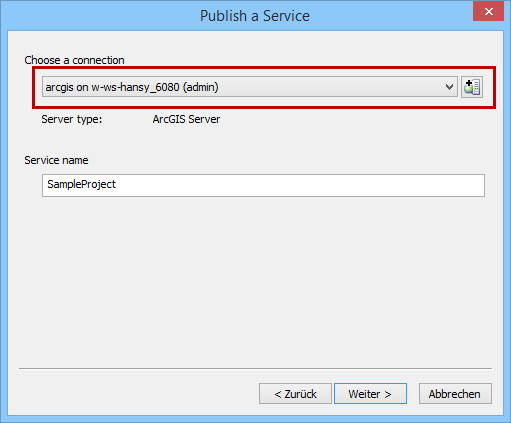

Choose a connection and keep the default service name.







By default the services are published to the root folder of ArcGIS Server.

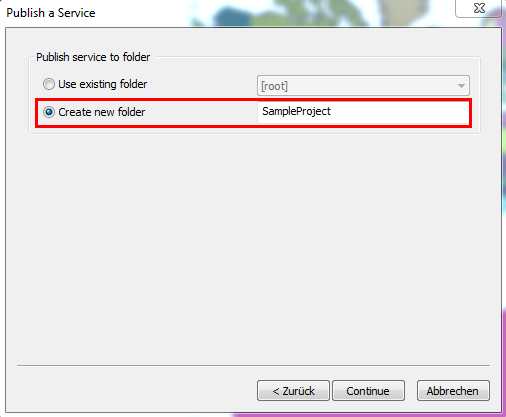

For the sample project create a new folder SampleProject.

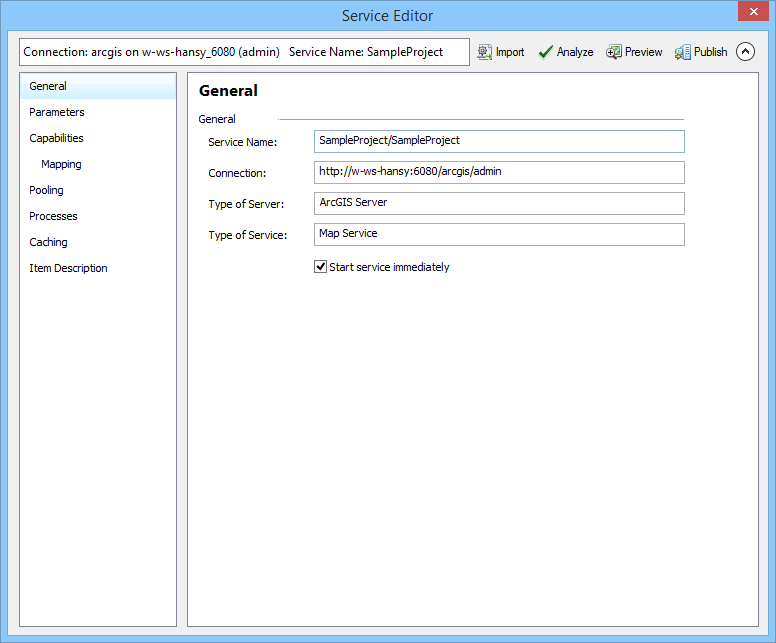

In the Service Editor window you can define properties of the service.

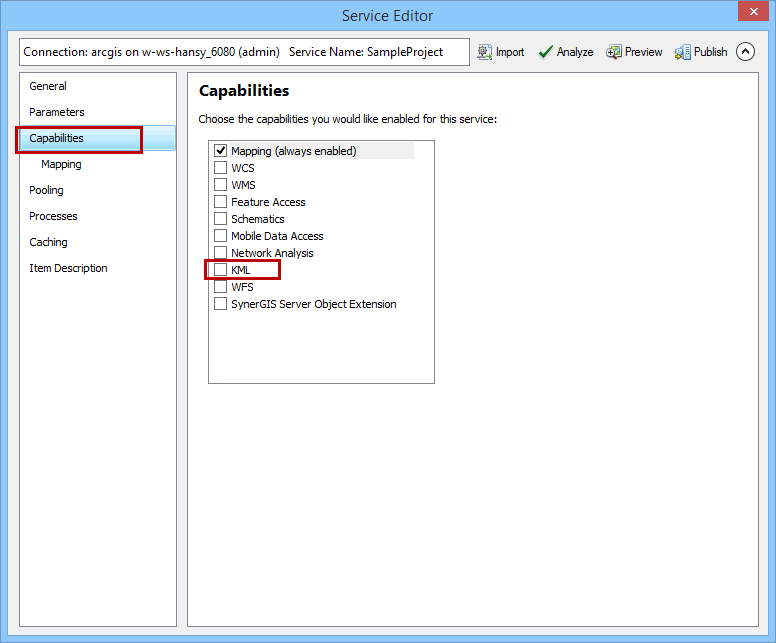

Pick Capabilities and deselect KML, Mapping must always be enabled.

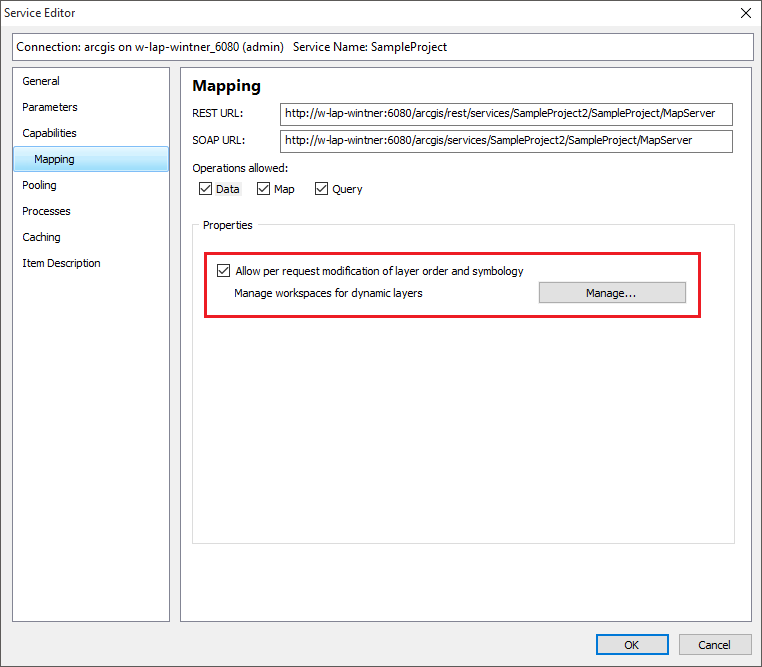

Click Mapping and activate the checkbox Allow per request modification of layer order and symbology for this service.

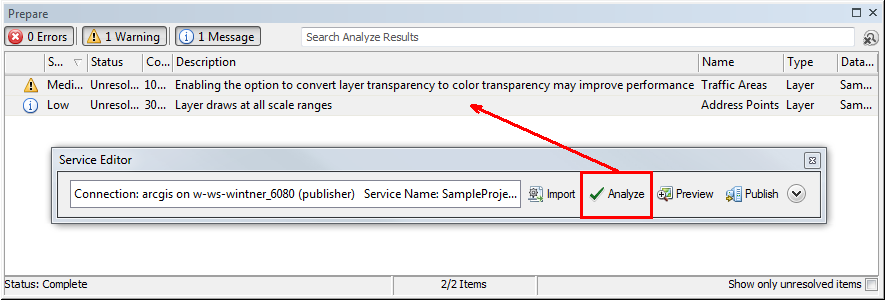

In a next step pick Analyze to find potential troubles before publishing the map to the server.





A window appears, that shows errors, warnings and messages. In case of the Sample Project files you can leave the warnings and messages unresolved, errors would have to be corrected.

Publish the map to the server with the Publish button.

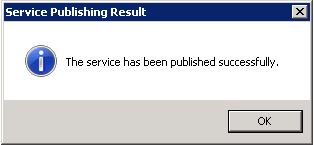

At the end a note confirms, the service for SampleProject.mxd has been successfully published.





Publish the next dynamic services in the same way as described above.

•Other dynamic services:
Overview.mxd
Editing.mxd
Editing_FeatureTemplate.mxd
UploadGeotaggedImages.mxd





Publish Cached Map Services

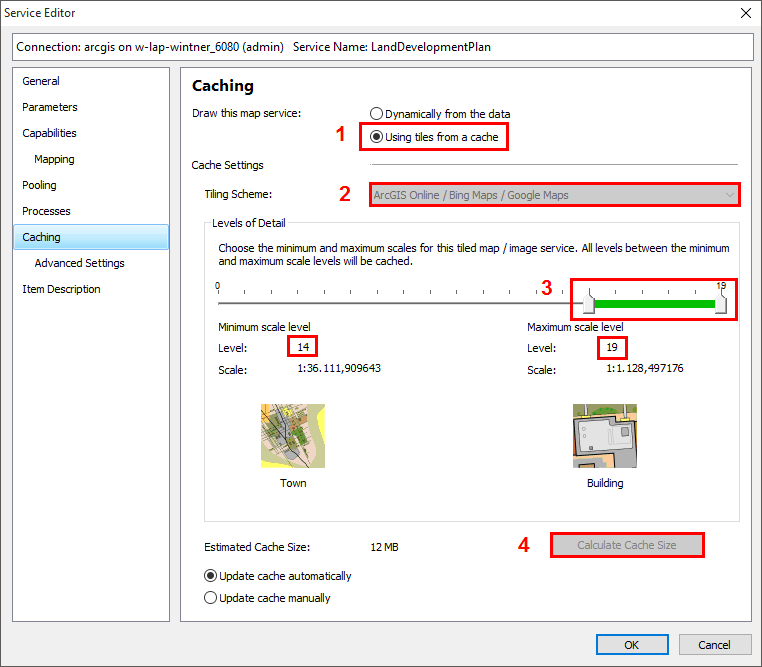

For the sample project the MXD LandDevelopmentPlan.mxd will be published as a cached service. Proceed through the steps as shown before until reaching the service editor. Deactivate KML in Capabilities, then pick Caching and choose Using tiles from a cache (1). Set tiling scheme to ArcGIS Online / Bing Maps / Google Maps (2) and choose 14 to 19 as Levels of Detail (3). Press the button Calculate Cache Size to calculate an estimated cache size (4).

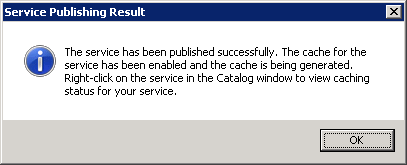

The estimated cache size will be about 3 MB. Leave all other settings unchanged and publish the service. The cache generation will start immediately after publishing the service.
