Restrictions for Basemaps

Create a new Restriction for Basemaps or modify an existing one. Use this function to prevent users from certain groups to access specific basemaps of your WebOffice 10.9 SP1 projects.



icon_comment

A Group has to be configured in UserManagement Admin Web to use this wizard.

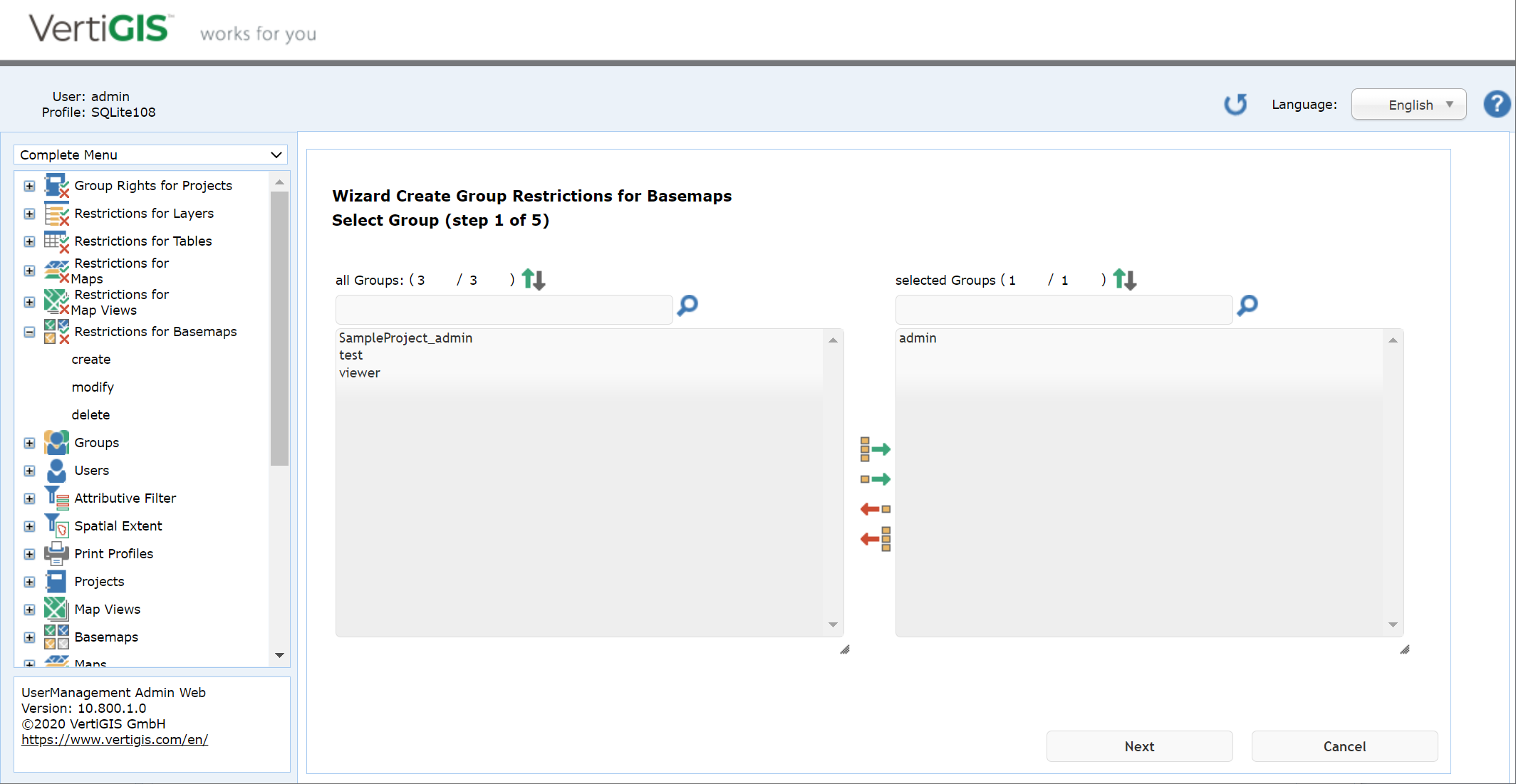

First, select the group you want to create the restriction for.



Create restrictions for basemaps - step 1

Create restrictions for basemaps - step 1

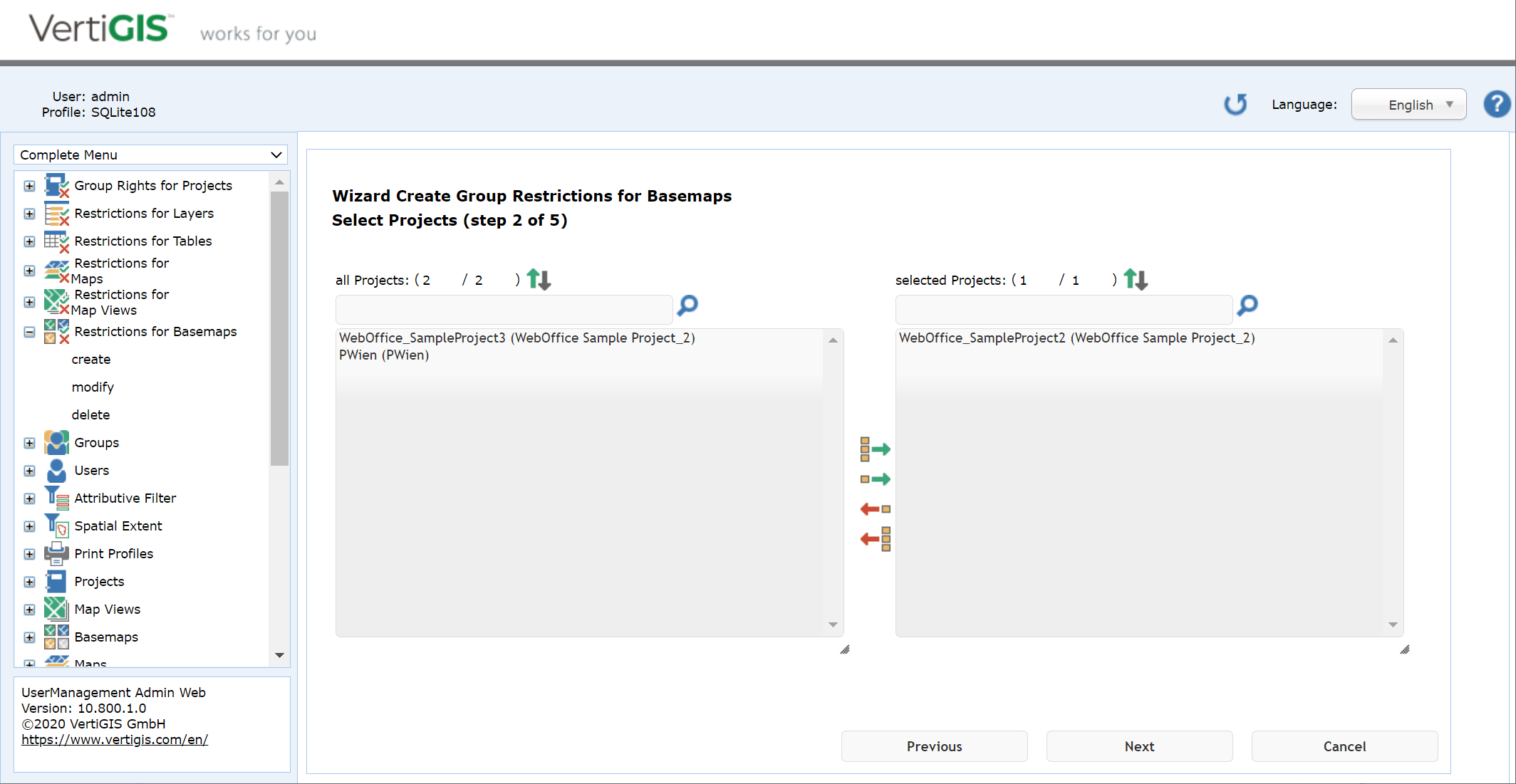

In the second step, all projects are listed in which basemaps are configured. Choose the project, for which you want to create restrictions for specific basemaps.



Create restrictions for basemaps - step 2

Create restrictions for basemaps - step 2

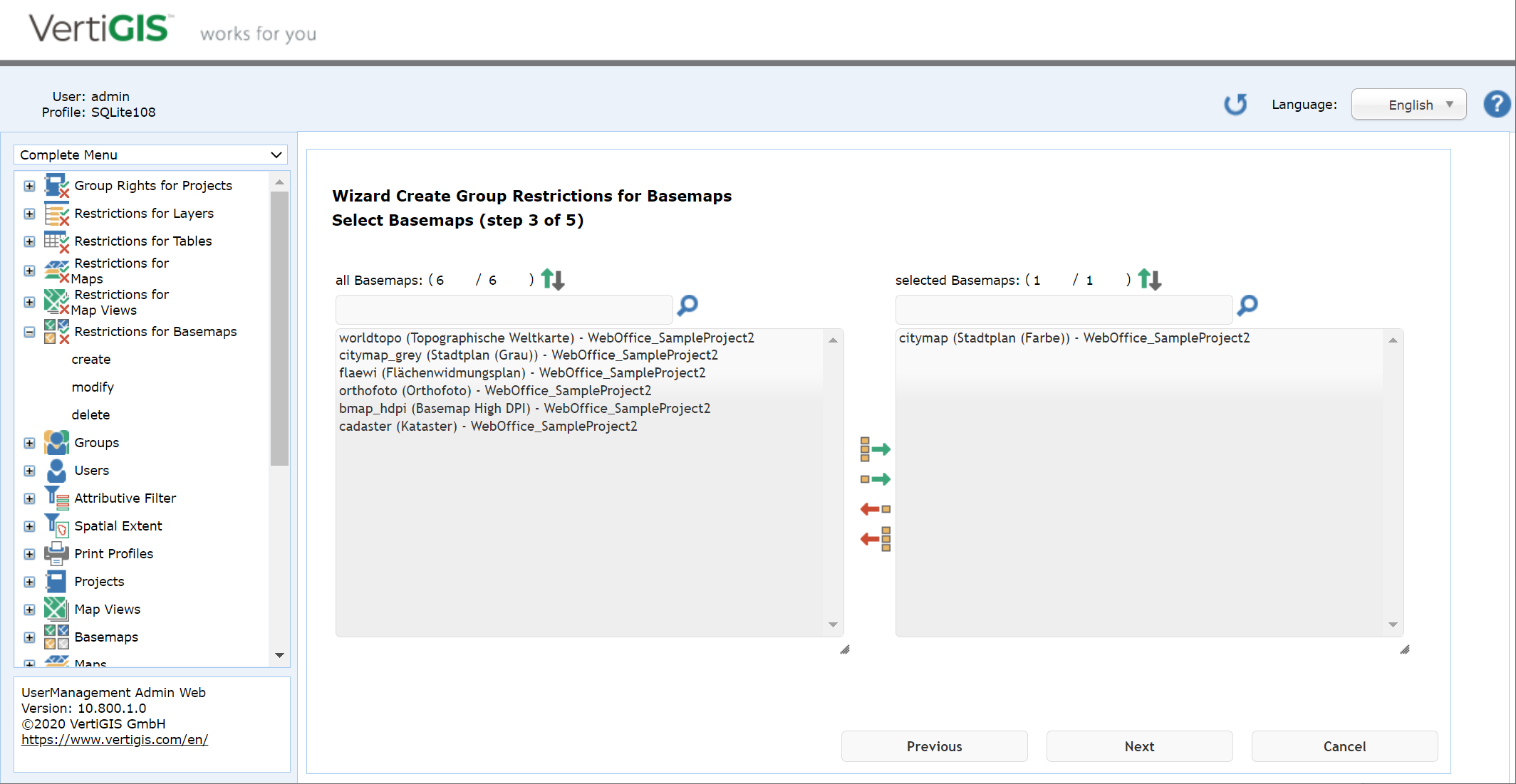

In the next step, all basemaps are listed which are configured in the appropriate project. Choose the basemap, for which you want to create a restriction.



Create restrictions for basemaps - step 3

Create restrictions for basemaps - step 3

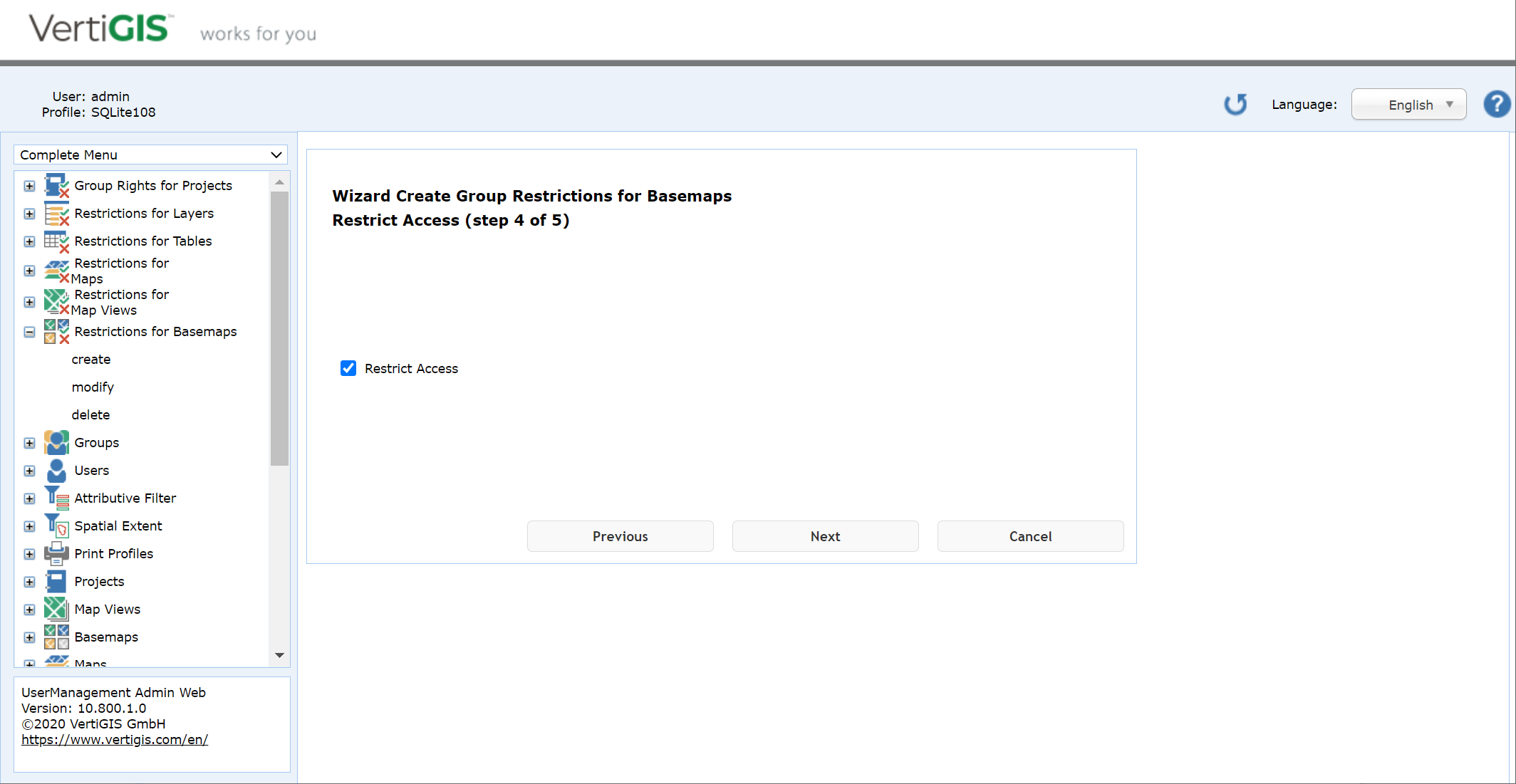

In the fourth step you have to decide whether you want to deny or allow access to the basemap.



Create restrictions for basemaps - step 4

Create restrictions for basemaps - step 4

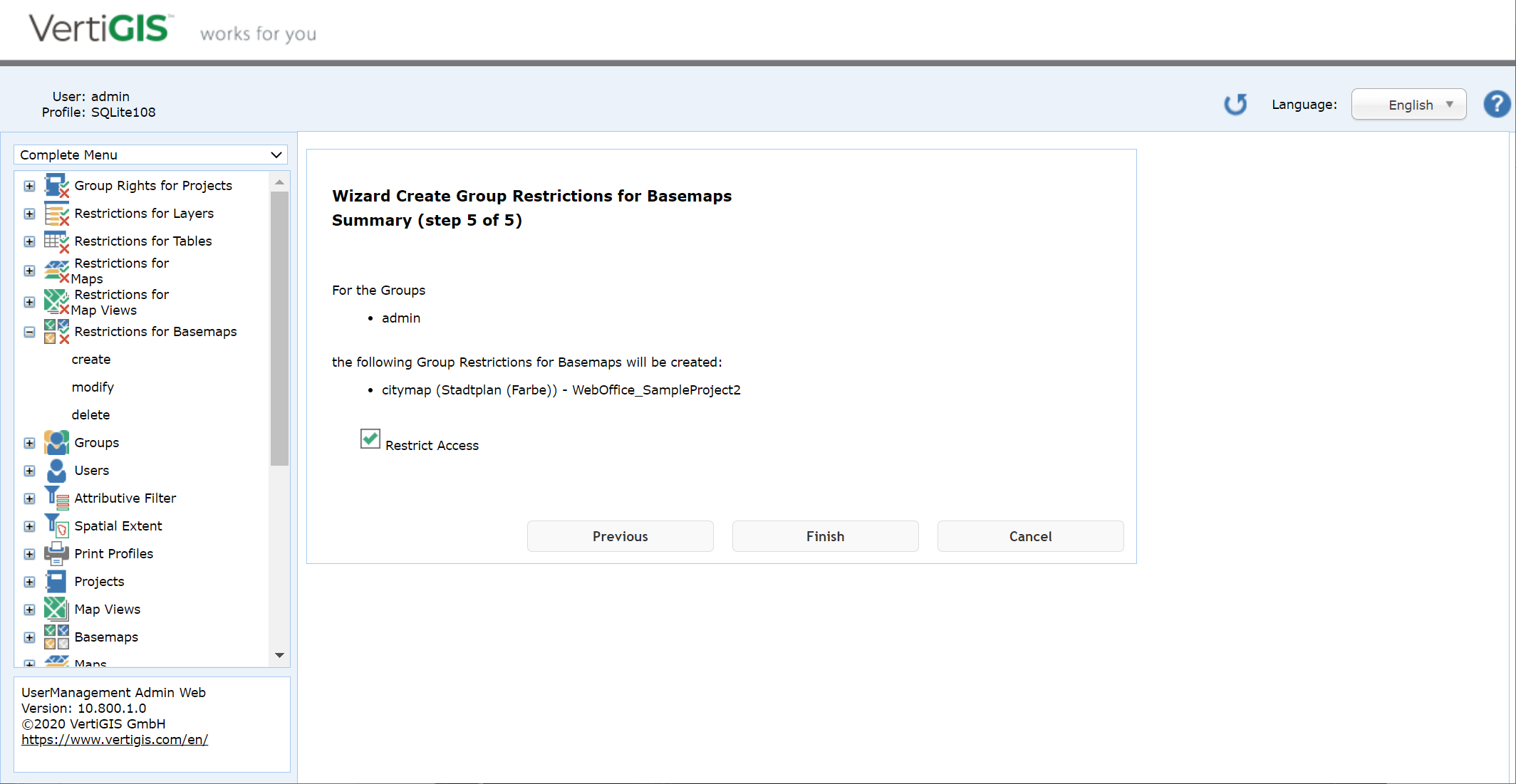

Finally you will get a summary about the restriction that has been created.



Create restrictions for basemaps - step 5

Create restrictions for basemaps - step 5



icon_cross-reference

Configured restrictions for basemaps can be reviewed. See Effective Group Rights.
