No Map Content Is Available

In case you can run your WebOffice 10.9 SP1 project (application starts) but it does not display any map content then check the firewall settings first. Because the firewall on the most OS is active by default, you have to open the port 6080  in order to use the map services hosted by ArcGIS Server. Therefore open the Windows Firewall with Advanced Security settings and define inbound rules for the port 6080.



Note: In case you have installed the Web Adapter for ArcGIS Server it is not necessary to open the port 6080. Instead, check that port 80 is opened.

Note: Also see the ArcGIS Resources - Firewalls and ArcGIS Server for more information about the Web Adapter for ArcGIS Server.

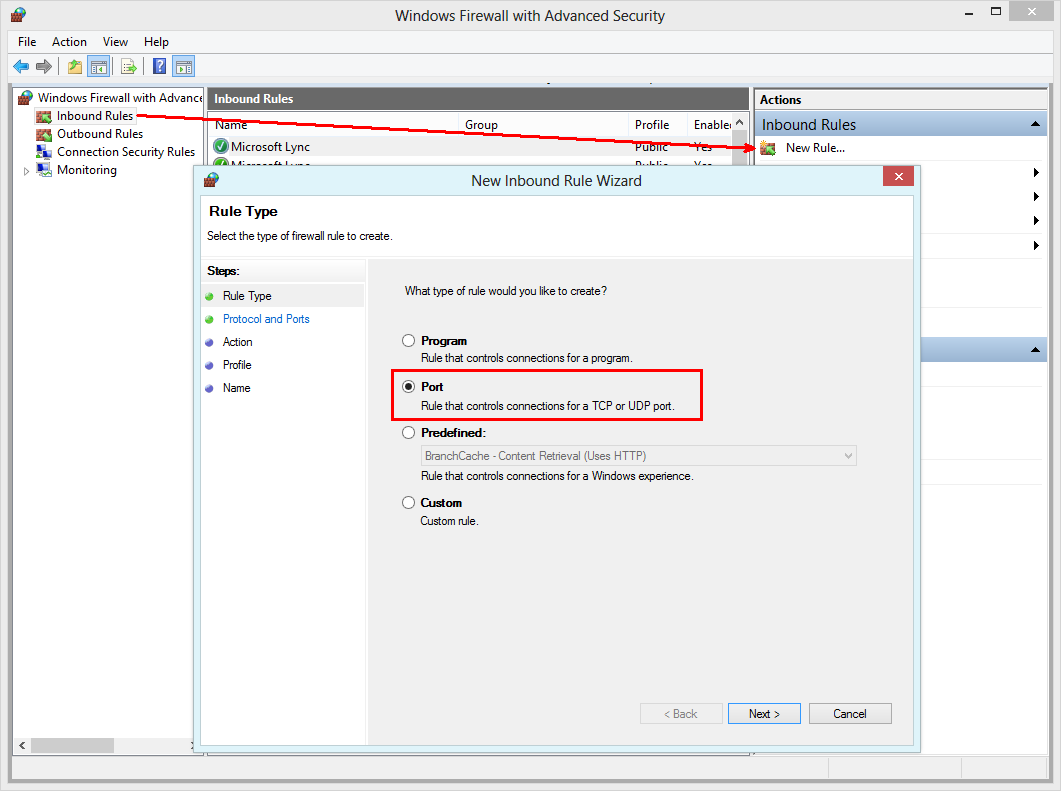

Windows Firewall with Advanced Security - Create a new inbound rule

Windows Firewall with Advanced Security - Create a new inbound rule

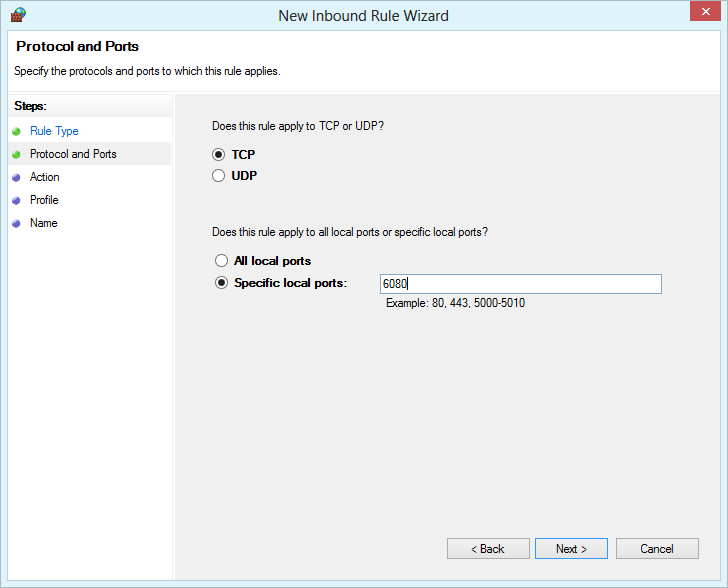

Windows Firewall with Advanced Security - specify port 6080

Windows Firewall with Advanced Security - specify port 6080

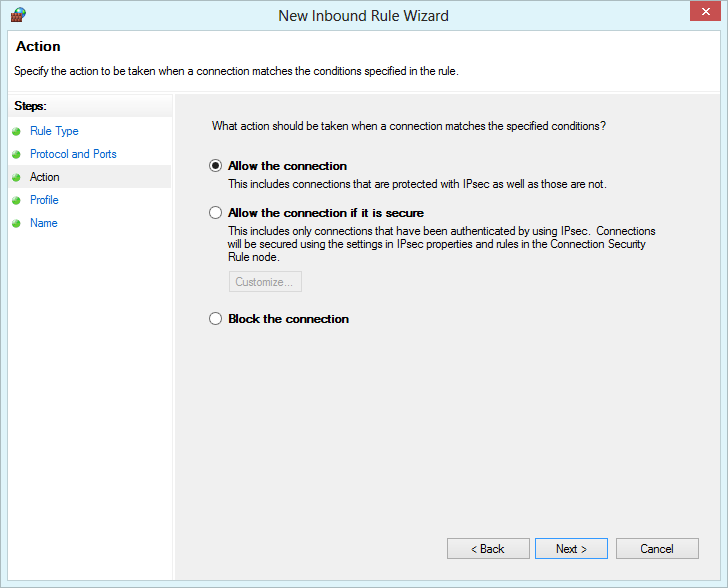

Windows Firewall with Advanced Security - allow the connection

Windows Firewall with Advanced Security - allow the connection

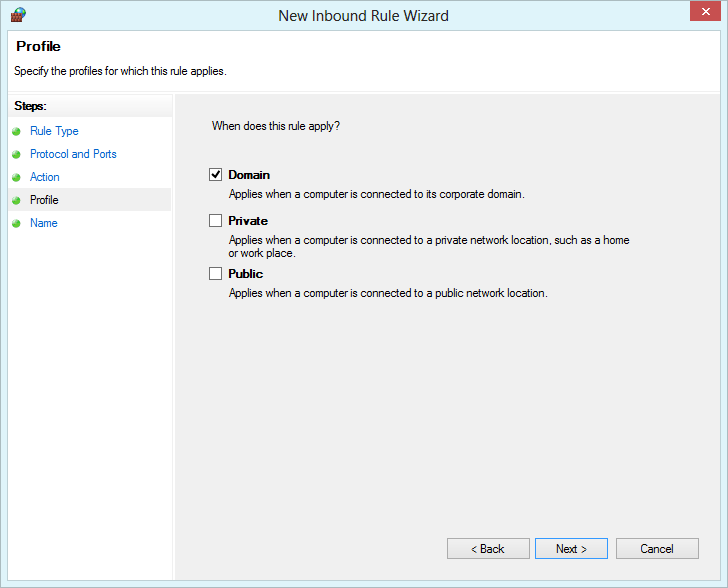

Windows Firewall with Advanced Security - choose the profile

Windows Firewall with Advanced Security - choose the profile

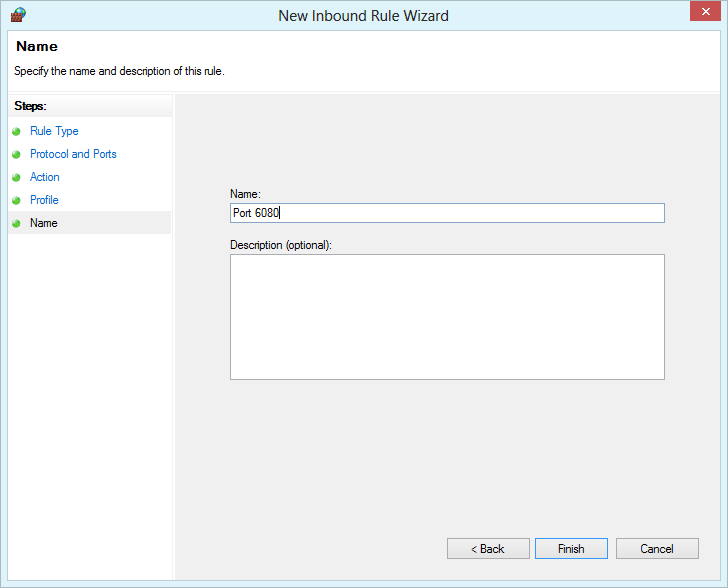

Windows Firewall with Advanced Security - enter a name

Windows Firewall with Advanced Security - enter a name

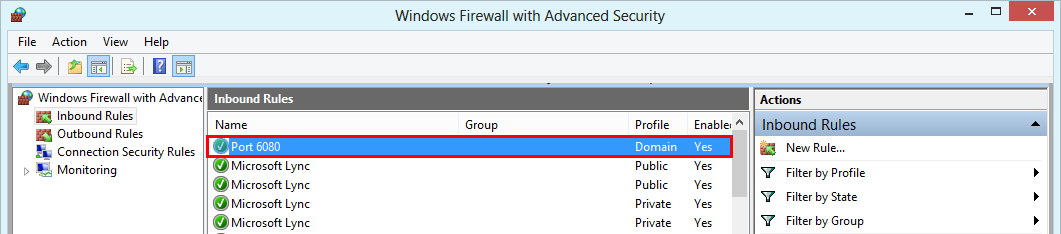

Windows Firewall with Advanced Security - active rule opening port 6080

Windows Firewall with Advanced Security - active rule opening port 6080



Now, refresh the WebOffice 10.9 SP1 project and check if map content is visible. If problems still exist, check ArcGIS services in a next step. Start the ArcGIS Server Manager locally (on the ArcGIS Server installation machine) by entering the URL https://<server name>[:<port>]/arcgis/manager/ (e.g. http://myserver:6080/arcgis/manager/) into your browser. Log-in to Manager using the primary site administrator name and password that was set during the site creation process.



In ArcGIS Server Manager go to the Logs tab first, click Settings and set the log level to e.g. Debug. Do not forget to undo the changes afterwords since the debug log level may cause a significant decrease in performance.

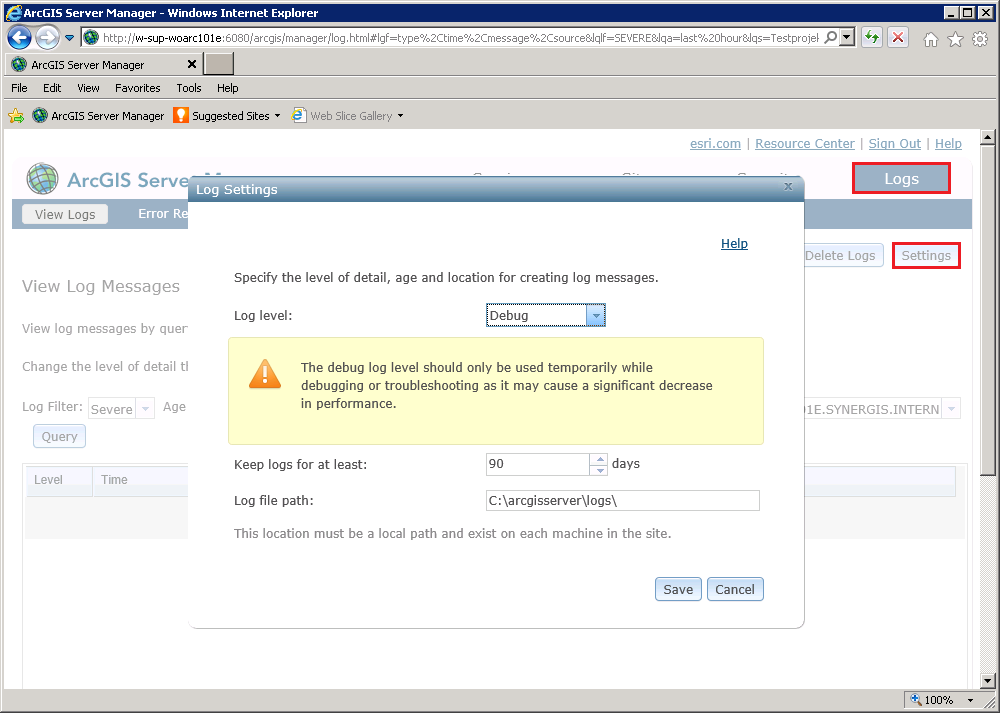

Set log level in the ArcGIS Server Manager

Set log level in the ArcGIS Server Manager



Open the Windows Services and restart the ArcGIS Server service so the just set log level has impacts.

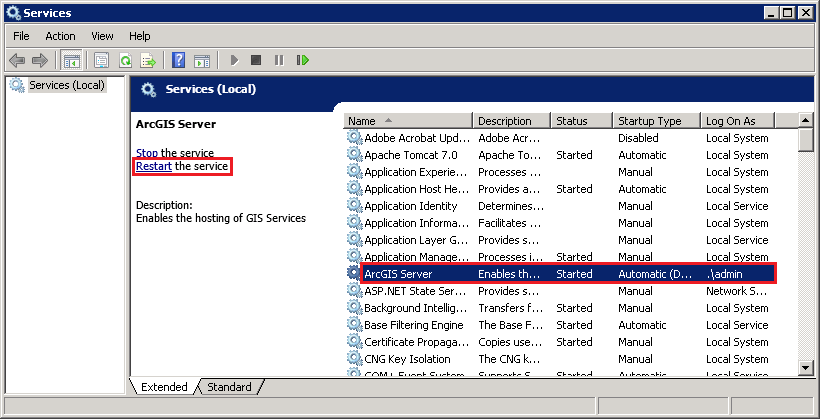

Restart ArcGIS Server service

Restart ArcGIS Server service



Now go back to ArcGIS Server Manager and set the log filter e.g. to only show the logs of a certain service or a certain time, etc. Choose the concerning service and sort the messages according to the log level. Look for messages containing is invalid and repair the service as necessary.

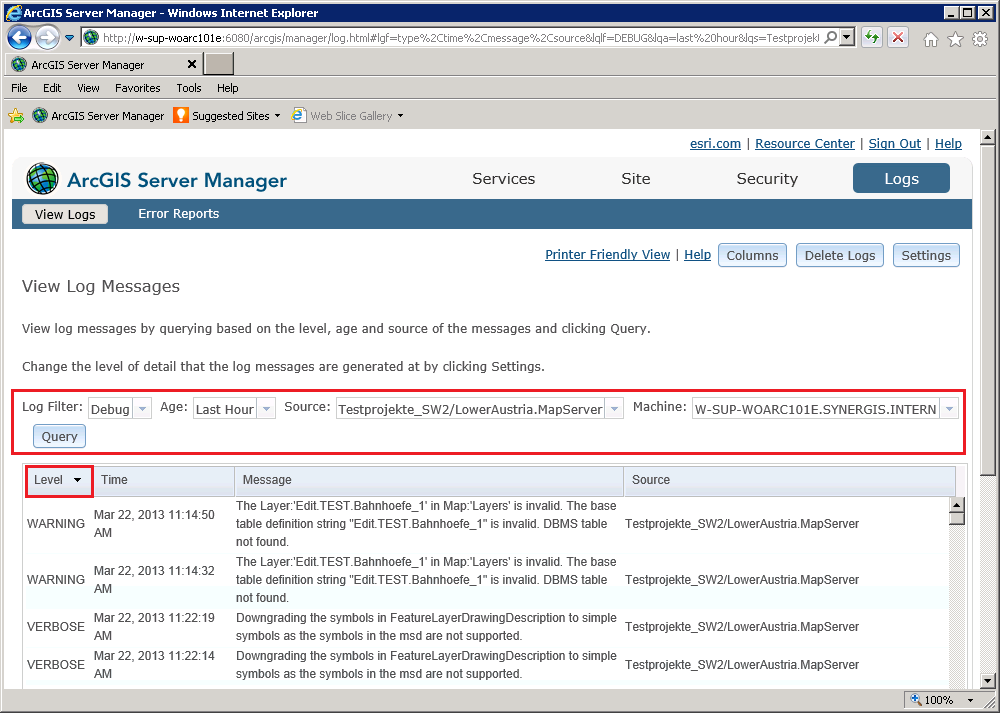

Example log showing that the layer "Edit.TEST.Bahnhoefe_1" is invalid. Therefore, no map content or queries for this layer would be available in WebOffice 10.9 SP1

Example log showing that the layer "Edit.TEST.Bahnhoefe_1" is invalid. Therefore, no map content or queries for this layer would be available in WebOffice 10.9 SP1
