The parameter activetools=BUFFERSELECT displays the Multilayer Buffer Select Tool.

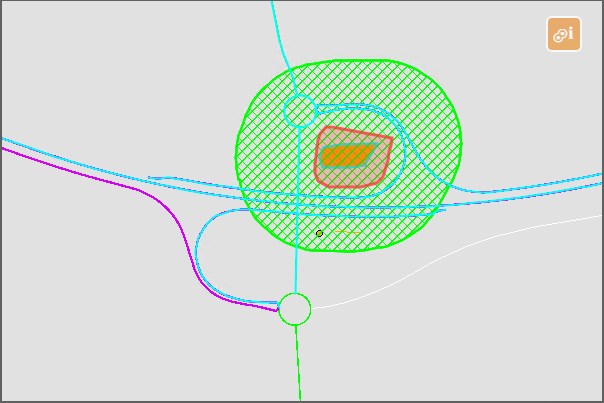

Multilayer Buffer Select Tool in the WebOffice map widget

Multilayer Buffer Select Tool in the WebOffice map widget



After the tool has been activated, an object can be selected from the source layer by drawing up a polygon (red area). The buffer (green area) with the selected size is then placed around the found object. All objects that are within the buffer distance in the target layer will be selected and sorted by distance from the object in the source layer.



Notes:

You can only select one object at a time. If more than one object is selected, a warning appears and the process is terminated.

If no buffer distance is specified, the geometry of the selected feature is used as the buffer geometry for the target layer.

Source layers that have not configured the return key as a result field in a result view will not be considered for the selection and their exclusion will be logged.



To use this tool with the WebOffice map widget the following parameters are required:



Input Parameter

Description

bufferlayerids

List of source layers for the selection.

Note:

An object must be selected from these layers, which will then be used as the basis for buffering.

Multiple layers are passed separately with ; or a defined separator parameter.

query_bufferselect_mw

Target layer for buffering

returnkey_bufferselect_mw

The values of this column are returned in the response for each object found.

Note:

The selected column must exist in both the source and target layers and must contain a unique value (for example, the STRINGGUID).

Source layers that have not configured the return key as a result field in a result view will not be considered for the selection.

bufferselectdist

The buffer distance must be given in meters.

Note: If no buffer distance is specified, the geometry of the selected feature is used as the buffer geometry for the target layer.

callback_bufferselect_mw

Specifies the JavaScript callback function.

startmode=BUFFERSELECT (optional)

By activating the parameter, the tool will be activated initially after the Map Widget update.

Note:

The parameter startmode can only be activated for one tool at a time.

Description of the parameters



Sample:
