The Raster Choice allows the visualization of one or more raster within an Esri raster catalog. The visualization can be changed dynamically by the user. The use of this function is recommended if one area consists of different raster datasets with variable time stamps and / or variable resolutions. The WebOffice mobile client offers to select single raster files or make a multiple selection over one or more images.

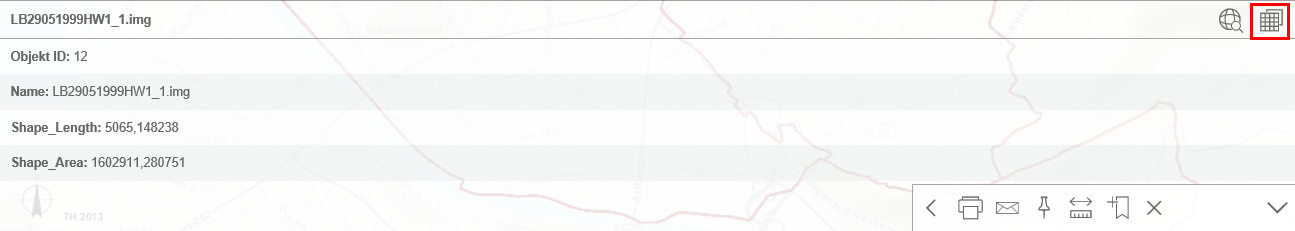

The user can use the search to find the raster datasets and visualize them in the map of the WebOffice mobile client. If one record is found then the raster image can be added by using the button in the upper corner of the lower toolbar of the WebOffice mobile client.

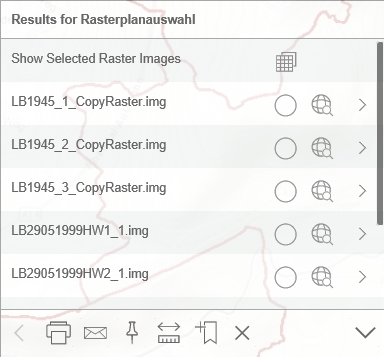

If more than one result are found within the search the user hast the possibility to choose the desired raster images directly by checking them in the result and adding them to the map of the WebOffice mobile client.

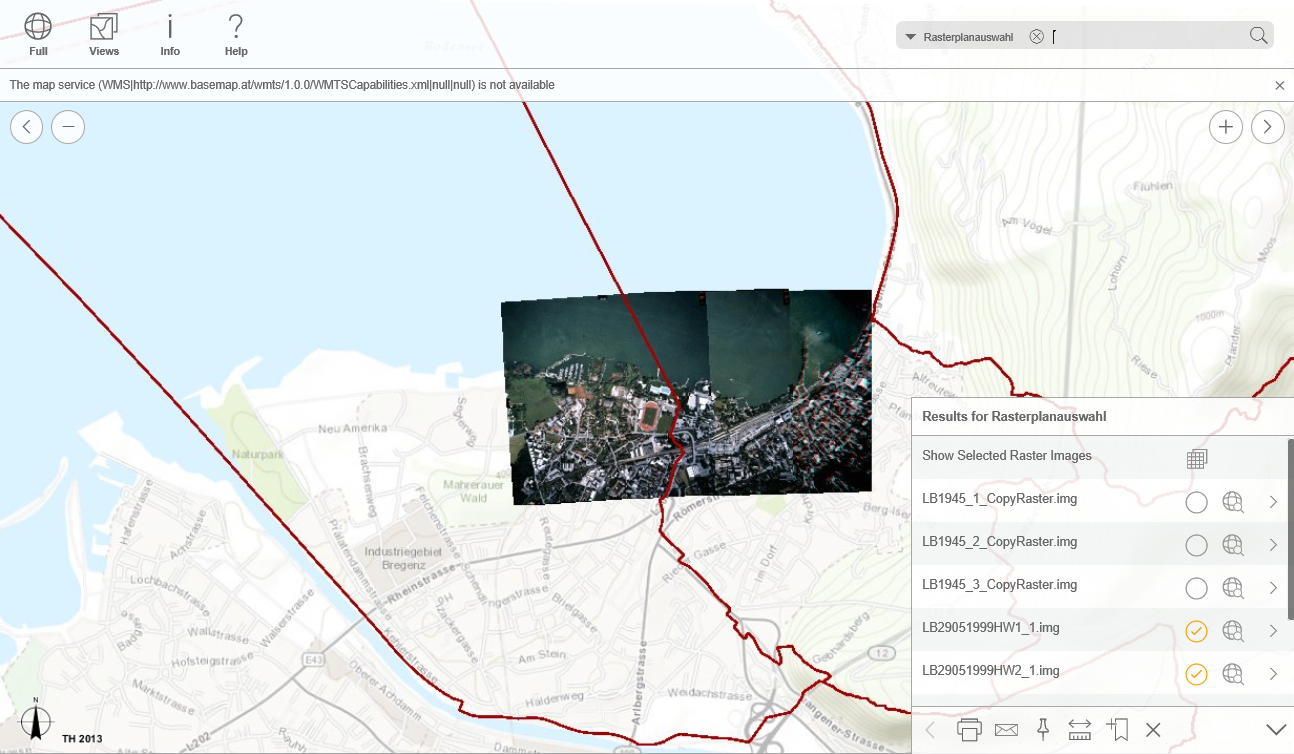

The following picture shows the visualization of raster images within a raster catalog in the WebOffice mobile client.



Note: The removal of visualized raster choice images within the map is done via the button Delete Selection. The WebOffice mobile client demands a implicit update of the map to remove the raster images. This is done by moving the map manually in the WebOffice mobile client.





Note: See chapter Raster Choice for details about the tool configuration of Raster Choice in WebOffice author.

Note: See chapter Raster Choice with Territorial Validity FC for details about the tool configuration of Raster choice including territorial validity in WebOffice author.
