With WebOffice 10.9 R3 it is possible to display special drive-time videos. The following sections describe the configuration in WebOffice author.



icon_comment

Due to the fact that a special data model is used for the use and appearance of such videos within the WebOffice core client, this feature has to be considered in a project context. If you are interested in the use of videos in WebOffice 10.9 R3, which are recorded in the course of an inspection.



icon_cross-reference

please contact the WebOffice Support Team.



The configuration of the drive-time videos takes place in WebOffice author in the menu Extras under the menu item Project structure overall. Under the node WebOffice, the element Layer configuration is available. The subordinate element Panorama Images / drive-time videos has to be added to this node.

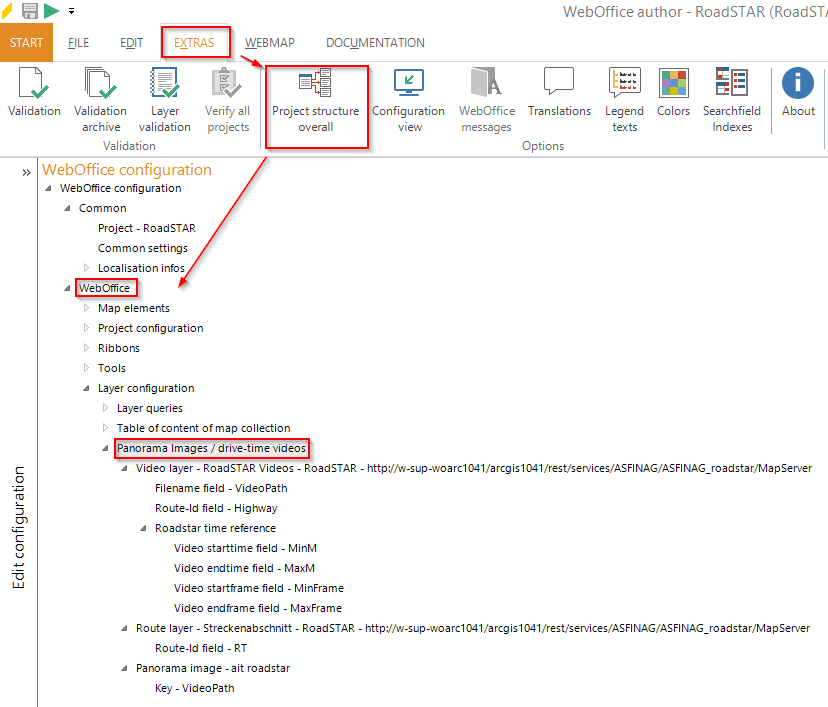

Configuring drive-time videos in WebOffice author (1)

Configuring drive-time videos in WebOffice author (1)



Add the following 3 elements to the node:

Video layer

Route layer and

Panorama Images



Video layer

The layer that contains information about the video paths, the route-id field and time reference.

The following subordinate elements have to be configured on this node:

Filename field with the property field. Field is the column of the layer holding the paths to the videos (without Base URL).

Name of the Route-Id field (for displaying kilometer values in the video window)

RoadSTAR time reference for defining the video frame rate and the playback frame rate with the subordinate elements Video starttime field, which determines the start time of the video, Video endtime field (to set the end time of the video), Video startframe field to associate the video polyline's first vertex with a distinct frame-number in the video as well as Video endframe field (to associate the last vertex).



Route layer

Layer with route data for displaying kilometer values in the video window. Route-Features are determined by matching values defined in the respective route-id fields of this layer and the video-layer.



Panorama Images

In this node, properties of the video window are determined (name of the application, window width, window height, ...)

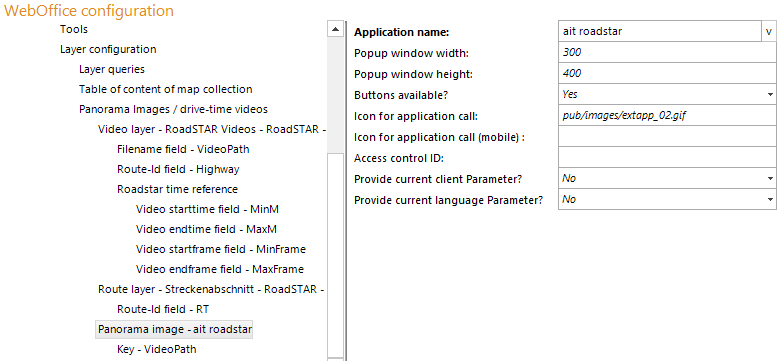

Configuring drive-time videos in WebOffice author (2)

Configuring drive-time videos in WebOffice author (2)





In the subordinate element Key, the entire physical path to the video is built together with the help of Video Base URL, Field, and Video Postfix.

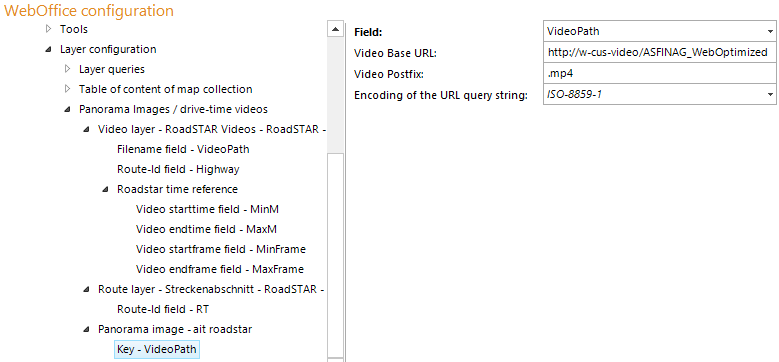

Configuring drive-time videos in WebOffice author (3)

Configuring drive-time videos in WebOffice author (3)



In addition to configuring the node Panorama Images / drive-time videos, it is also necessary to create a query on the video layer.

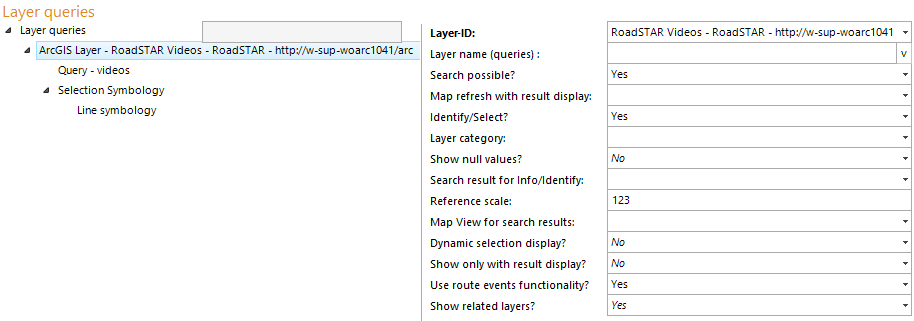

Configuring a query for the video layer

Configuring a query for the video layer



Configuration for calling drive-time videos via custom tool (optional)

In addition to the option to select drive-time videos via the selection tool, the videos can also be selected using a custom tool.

When configuring the tool, note that the property URL of external page consists of the path to trackView.jsp and the layer ID of the video layer. This ID is taken from the project configuration xml file.

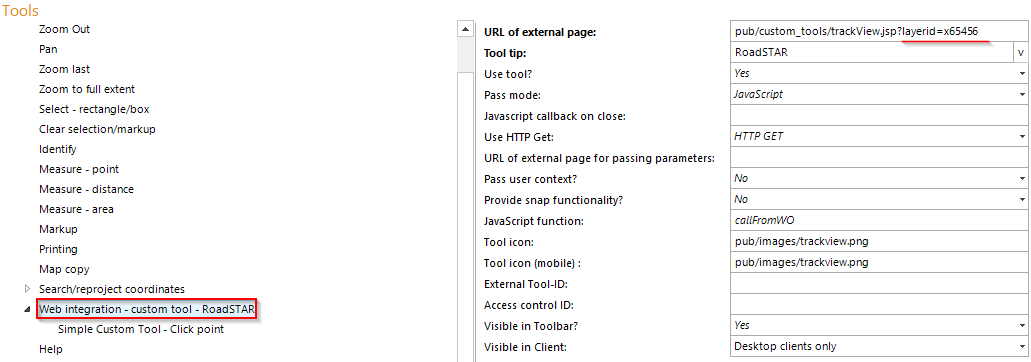

Configuring the custom tool to call drive-time videos

Configuring the custom tool to call drive-time videos



Video layer ID in the project configuration xml file

Video layer ID in the project configuration xml file
